| Manufacturer | FNIRSI |
|---|---|
| Place of Business | FNIRSI |
| Part number | FNIRSI-2C53P |
| Item Weight | 889 g |
| Product Dimensions | 7.99 x 3 x 2 cm; 889 g |
| Batteries | 1 Lithium Polymer batteries required. (included) |
| Item model number | FNIRSI-2C53P |
| Colour | Blue |
| Pattern | Solid Blue |
| Power source type | Battery Powered |
| Item Package Quantity | 1 |
| Specifications | CE, ETL, RoHS |
| Batteries Included? | Yes |
| Batteries Required? | Yes |
| Battery Cell Type | Lithium Polymer |
| Length | 7.99 Centimetres |
| Width | 3 Centimetres |
| Height | 2 Centimetres |
Frequently bought together
This item: FNIRSI 2C53P Handheld Tablet Oscilloscope Multimeter DDS Signal Generator 3 in 1, 2CH Automotive Oscilloscope Multimeters with 50Mhz Bandwidth, 19999 Counts, 250MS/s Sampling, 4.3 inch Touch Screen
$139.99
Get it by Tuesday, Feb 10
In Stock
+
$46.99
Get it by Tuesday, Feb 10
In Stock
+
$70.99
Get it by Tuesday, Feb 10
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product information
Additional Information
| ASIN | B0D3L78C6K |
|---|---|
| Customer Reviews |
4.1 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | Aug. 21 2024 |
Feedback
Product Description

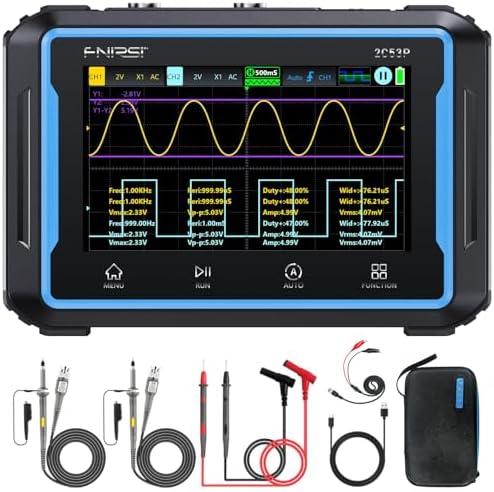

FNIRSI 2C53P 3 in 1 Handheld Tablet Oscilloscope Multimeter DDS Signal Generator
FNIRSI 2C53P is a handheld oscilloscope that integrates oscilloscope, multimeter and signal generator. 2C53P digital oscilloscope adopts 4.3-inch IPS ultra-high-definition touch screen, and built-in 4000mAh lithium battery, which is convenient for electricians or DIY enthusiasts to use indoors and outdoors.
Oscilloscope
1.Channel：Dual channel
2.Analog bandwidth：50MHz; Real-time sample rate：250MSa/s
3.Storage depth：Up to 64kByte; Input mpedance：1MΩ
4.Time base range：10ns/div - 10s/div; Vertical sensitivity：10mv/div - 10v/div
5.Vertical resolution：8 bits
6.Maximum measured voltage：±400V; Probe：1x/10x
7.Torage space：13M; Bandwidth limit：Support 20MHz limit
Digital Multimeter & Signal Generator
Multimeter
DC Voltage, AC voltage：1.9999V/19.999V/199.99V/1000.0V; 1.9999V/19.999V/199.99V/750.0V
DC current, AC current：19.999mA/199.99mA/1.9999A/9.999A; 19.999mA/199.99mA/1.9999A/9.999A
ٲԳ：19.999Ω/1.9999Ω/199.99Ω/19.999Ω/1.9999Ω/199.99Ω
䲹貹ٲԳ：999.9ܹ/99.99ܹ/9.999ܹ/999.9Թ/99.99Թ/9.999Թ/9.999/99.99
ձٳܰ：(-551300℃)/(-672372℉)
Diode：Yes; Continuity test：Yes
Signal Generator
Frequency：0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）
ٳܻ：0.1-3.0
Square wave duty cycle: 0-100%
Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
4.3 Inch Touch screen (480*272 pixels)
Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen
Backlight brightness can be set
Trigger mode：AUTO/Normal/Single
Trigger type：Rising edge, Falling edge
Trigger level range：8 cells (positive/negative)
Waveform display mode：XY/YT/Scroll
Coupling method：AC/DC
Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width
Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT
Save waveform screenshot：Yes
Export waveform images from computer：Yes
FNIRSI 2C53P Oscilloscope Package List
1. 2C53P（2CH Touchable Automotive Oscilloscope）*1
2. Alligator clip probe *1
3. P6100 Probe *2
4. Multimeter probe *1
5. Data cable *1
6. Product Manual *1
7.Storage bag *1
DPOS350P Tablet Oscilloscope
|
1013D Oscilloscope
|
1014D Oscilloscope
|
DST-210 Handheld Oscilloscope
|
2C23T Handheld Oscilloscope
|
DMC-100 Clamp Multimeter .
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
84
|
110
|
444
|
111
|
352
|
440
|
| Bandwidth | 350 MHz | 100MHz | 100MHz | 10 MHz | 10MHz | / |
| Sample Rate | 1 GSa/s | 1GS/s | 1GSA/S | 48 MSa/s | 50MS/s | / |
| Channels | 2 | 2 | 2 | 1 | 2 | / |
| Record Length | / | 240Kb | 240Kb | / | 32kb | / |
| Waveform Manager | ✓ | ✓ | ✓ | ✓ | / | / |
| Signal Generator | ✓ | / | ✓ | ✓ | DDS Signal Generator | ✓ |
| Transistor Tester | / | / | / | / | / | / |
