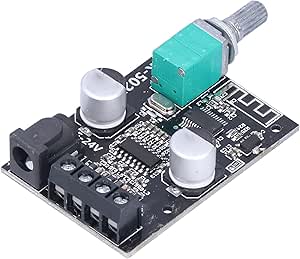

ZK‑502L Bluetooth Power Amplifier Board 5.0 Stereo Audio Receiver Dual Channels Digital Audio Amplifier Module for DIY Speakers 5-24V

4.2 out of 5 stars 68 ratings

To see product details, add this item to your cart. You can always remove it later.
on any 2 qualifying items | Terms

Purchase options and add-ons

Voltage 24 Volts
Manufacturer Walfront
Maximum supply voltage 24 Volts (DC)
Minimum supply voltage 5 Volts
Mounting type Through-Hole Mount
Brand Walfront
Number of channels 2
Output power 6E+1 Watts
Package type box
Specification met Industry Standards

About this item

  • Strong Compatibility: The amplifier module is equipped with a terminal block and a 2.1mm socket, which is compatible with most laptop power ports. Can directly connect to Bluetooth 5.0. and compatible with a variety of speakers. Two 20W, 30W or 50W power amplifier boards are equipped with various speakers (4 to 8 Ω), and support Bluetooth stereo audio input and AUX audio input.
  • Built-in Filter Capacitor: The built in filter capacitor of this digital power amplifier module makes it available for processing sound . Knob potentiometer design, convenient to adjust power ON and OFF, V+ and V‑.
  • Adapted Power Supply Voltage: 5-24V (optional 9V/12V/15V18V/24V and Other Adapters, High Power Recommended High Voltage). To Noise Ratio: >90 dB. Adapted Speakers: 30W-200 W, 4Ω-8Ω.
  • Mechanism: Adopt acrylic protective shell design, with reverse connection , overvoltage , undervoltage , over temperature , short circuit . Self recovery overheating .
  • Wide Range Of Applications: This bluetooth speaker power amplifier board has no POPs sound when powering on, skipping songs and pausing. It is widely used in refitting speakers, power amplifier equipment, and car Bluetooth equipment.

Frequently bought together

This item: ZK‑502L Bluetooth Power Amplifier Board 5.0 Stereo Audio Receiver Dual Channels Digital Audio Amplifier Module for DIY Speakers 5-24V
$16.64
Get it Jun 23 - Jul 7
Only 5 left in stock.
Ships from and sold by Dawnsou.
+
$12.03
Get it by Sunday, Jun 15
In Stock
Sold by Gikfun_Official_Store and ships from 鶹 Fulfillment.
+
$18.89
Get it by Sunday, Jun 15
In Stock
Sold by Gikfun_Official_Store and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
Some of these items ship sooner than the others.
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products


From the brand

Product information

Technical Details

Manufacturer ‎Walfront
Place of Business ‎shenzhenshi, guangdongsheng 518109,CN
Part Number ‎Walfront1c0mu4qvrb6020
Parcel Dimensions ‎11.7 x 6.8 x 4.7 cm; 80 g
Item model number ‎ZK 502L
Finish ‎Finish
Material ‎Material
Power Source ‎PowerSource
Voltage ‎24 Volts
Installation Method ‎InstallationMethod
Item Package Quantity ‎1
Spout Height ‎1 Centimeters
Handle Material ‎default
Accessory Connection Type ‎default
Mounting Type ‎Through-Hole Mount
Certification ‎Industry Standards
Included Components ‎inc
Batteries Required? ‎No
Item Weight ‎80 g
Country of origin ‎China

Additional Information

ASIN B09J9338KS
Customer Reviews
4.2 out of 5 stars 68 ratings

4.2 out of 5 stars
鶹 Rank
Date First Available Oct. 12 2021

Feedback

ZK‑502L Bluetooth Power Amplifier Board 5.0 Stereo Audio Receiver Dual Channels Digital Audio Amplifier Module for DIY Speakers 5-24V


Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?

Price Availability
/
/
/
/
Please sign in to provide feedback.

Product Description

Bluetooth Power Amplifier Board
Bluetooth Power Amplifier Board
Bluetooth Power Amplifier Board
Stereo Audio Amplifier Board
Stereo Audio Amplifier Board


Features


The amplifier module is equipped with a terminal block and a DC 2.1mm socket, which is compatible with most laptop power ports. Can directly connect to Bluetooth 5.0. and compatible with a variety of speakers.


The built in filter capacitor of this digital power amplifier module makes it available for processing sound signals. Knob potentiometer design, convenient to adjust power ON and OFF, V+ and V‑.


Two 20W, 30W or 50W power amplifier boards are equipped with various speakers (4 to 8 Ω), and support Bluetooth stereo audio input and AUX audio input.


Adopt acrylic protective shell design, with reverse connection protection, overvoltage protection, undervoltage protection, over temperature protection, short circuit protection. Self recovery overheating protection.


This bluetooth speaker power amplifier board has no POPs sound when powering on, skipping songs and pausing. It is widely used in refitting speakers, power amplifier equipment, and car Bluetooth equipment.


Specification:


Item Type: Power Amplifier Board


Material: PCB


Purpose: Digital Power Amplifier Board


Model: ZK-502L


Bluetooth Version: 5.0


Input Method: Bluetooth


Number Of Channels: Left and Right Dual Channels (stereo)


Bluetooth Version: 5.0 (Unobstructed, Approx. 15m/49.2ft)


Signal To Noise Ratio: >90 dB


Adapted Speakers: 30W-200 W, 4Ω-8Ω


12V-8 Ω/12W+12W, 4 Ω/20W+20W


15V-8 Ω/18W+18W, 4 Ω/30W+30W


19V-8 Ω/32W+32W, 4 Ω/45W+45W


24V-8 Ω/38W+38W, 4 Ω/50W+50W


Protection Mechanism: Self Recovery Overheating Protection, Self Recovery Short Circuit Protection


Package List


1 x Power Amplifier Board


1 x Screwdriver


9 x Screw


4 x Brass Connecting Rod


2 x Acrylic Board


1 x Knob


1 x Cable


Note:
The input voltage cannot exceed 24V, otherwise the audio amplifier module will be damaged.

Compare with similar items

This Item
ZK‑502L Bluetooth Power Amplifier Board 5.0 Stereo Audio Receiver Dual Channels Digital Audio Amplifier Module for DIY Speakers 5-24V
ZK‑502L Bluetooth Power Amplifier Board 5.0 Stereo Audio Receiver Dual Channels Digital Audio Amplifier Module for DIY Speakers 5-24V
Recommendations
DEVMO Audio Amplifier Board,5W+5W Mini Amplifier Board PAM8406 DC 5V Digital Stereo Power Amp 2.0 Dual Channel Class D Amplify Module for Speaker Sound System DIY
DC8-24V 5.0 Bluetooth Power Amplifier 2 Channels 20W+20W Stereo Power Amplifier Digital Speaker Audio Player

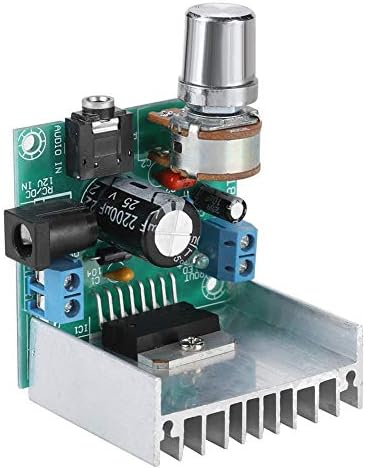

TDA7297 2 * 15w Dual Channel Digital Stereo Audio Amplifier Board DIY Power AMP Module DC 9-15V for Home Theater
TDA7492P Dual Channel Bluetooth 4.0 Audio Receiver Digital Amplifier Board (25W+25W+AUX Interface)
Bluetooth Amplifier Board 5.0 Stereo Audio Receiver Amplifier Board 2.1 Channel Class D Amp Module 100W Subwoofer Power Amplifier Module Stereo Subwoofer Module
Details
Added to Cart
spCSRF_Treatment
Details
Added to Cart
spCSRF_Treatment
Details
Added to Cart
spCSRF_Treatment
Details
Added to Cart
spCSRF_Treatment
Details
Added to Cart
spCSRF_Treatment
Details
Added to Cart
spCSRF_Treatment
Price$16.64$20.99$26.04$16.97$24.81$32.71
Delivery
Get it Jun 23 - Jul 7
Get it by Sunday, Jun 15
Get it by Sunday, Jun 15
Get it by Sunday, Jun 15
Get it by Sunday, Jun 15
Get it by Sunday, Jun 15
Customer ratings
Sold by
number of channels
voltage
output power
specification met
mounting type

Brands in this category on 鶹

Customer reviews

4.2 out of 5 stars
68 global ratings

Review this product

Share your thoughts with other customers

Customers say

Customers like the performance, ease of use, and compact design of the electronic component amplifier. They mention it works well with 9V power, is easy to setup, and has an amazing power output. However, some customers have mixed opinions on the sound quality.

16 customers mention "Performance"16 positive0 negative

Customers are satisfied with the performance of the product. They mention it works pretty good, works well with 9V power, and is excellent.

"...My speakers are Roemtech 3.4" / 8ohm / 40W. Worked first at first go, just plugged the speakers, used an old 12V/3.5A adapter...." Read more

"...This thing actually works really well and doesn't heat up as bad as i thought it would...." Read more

"This device worked very well. The only issue is that it drained a 9V battery within 2 days when the unit was off." Read more

"...Ordered afew now to try with different speakers and they all work great! Definitely worth the $20" Read more

5 customers mention "Easy to use"5 positive0 negative

Customers find the product easy to use. They mention it works pretty good and is very easy to setup.

"It’s an amazing little amp. Easy to assemble, and it will take pretty much any type of wallwart power supply…just check the polarity...." Read more

"It works pretty good really easy to setup though as mentioned in another review the Bluetooth is always on, so it will kill the battery in a..." Read more

"Easy hookup and BT connection. This unit is advertised as 50 watt. There may be 5 watts max from the amplifier stage...." Read more

"...The set up was easy, the amp recognizes my phone without any issues...." Read more

3 customers mention "Compact design"3 positive0 negative

Customers like the compact design of the product. They mention it's very small and a great tiny Bluetooth amplifier.

"...Very small, once I design and print the enclosure, it will be very discreet...." Read more

"Great tiny Bluetooth amp..." Read more

"Compact design..." Read more

3 customers mention "Power output"3 positive0 negative

Customers are impressed with the power output of the product. They say it's an amazing little amp.

"It’s an amazing little amp. Easy to assemble, and it will take pretty much any type of wallwart power supply…just check the polarity...." Read more

"I’m impressed with the output power for how small it is" Read more

"Great little amp..." Read more

13 customers mention "Sound quality"9 positive4 negative

Customers have mixed opinions about the sound quality of the product. Some mention it has good sound, while others say the sound levels aren't even close to acceptable and distort the audio a bit.

"...Audio quality seems great. I hear no distortion or feedback...." Read more

"...Sound wise, it actually sounds really good. Won't beat a dedicated Hi-Fi amp, but that's not what I wanted it for...." Read more

"Exactly what i was looking for, nice clear sound for my ammo box speaker i wanted to try making...." Read more

"...It sounds ok up until about half volume where it seems to distort the audio a good bit. Definitely worth the price though 👌..." Read more

Works great
5 out of 5 stars
Works great
Exactly what i was looking for, nice clear sound for my ammo box speaker i wanted to try making. Ordered afew now to try with different speakers and they all work great! Definitely worth the $20
Thank you for your feedback
Sorry, there was an error
Sorry we couldn't load the review

Top reviews from Canada

  • Reviewed in Canada on April 12, 2025
    Verified Purchase
    Very impressed by this little item. I used it to replace an antiquated CD system in a infrared sauna. Connected it to an unused 12 volt DC lights circuit on the sauna control board. Audio quality seems great. I hear no distortion or feedback. I only have it at half volume using the volume knob on the unit itself then controlling volume with my phone beyond that point. I think it could exceed the ability of the speakers that are currently installed. With the current setup it can go louder than I would ever play it ( two 5" speakers directly to this unit relying entirely on the amplification of this device to drive the speakers) I was able to connect via Bluetooth with my phone with very little effort. Shows up as WZ-BT5.0 I'm able to keep my phone 20 ft away with no disruption in connection.( haven't tested further than that it could potentially work from further away but I haven't tested since it wasn't required)
  • Reviewed in Canada on February 25, 2025
    Verified Purchase
    I got some old bookshelf speakers from the workplace and needed a small amp to go with it. I got this to print my own enclosure and use the speakers as a simple "bluetooth speaker" for the kitchen. Lo and behold, that little amp works like a champ. My speakers are Roemtech 3.4" / 8ohm / 40W. Worked first at first go, just plugged the speakers, used an old 12V/3.5A adapter.

    Sound wise, it actually sounds really good. Won't beat a dedicated Hi-Fi amp, but that's not what I wanted it for. Very small, once I design and print the enclosure, it will be very discreet.

    Only negative - may be a deal breaker for some, but not for me: Even when turned off, the Bluetooth component stays "on". Meaning your phone will keep re-connecting to it if you paired it before. Could lead to unfortunate audio piping if you are not careful. You need to manually "forget" the device in order to be able to re-pair easily something else (like earbuds, car speaker, etc.). Annoying, but for the value, I'm all fine with it.
  • Reviewed in Canada on October 14, 2024
    Verified Purchase
    I bought this to install in my 6year old's 24v dune buggy, bar was really not high. This thing actually works really well and doesn't heat up as bad as i thought it would. It's actually a good choice for the price for any diy speaker setup that doesn't need crazy amounts of power.
  • Reviewed in Canada on June 10, 2023
    Verified Purchase
    It’s an amazing little amp. Easy to assemble, and it will take pretty much any type of wallwart power supply…just check the polarity. The only minor issue was that the device name in the Bluetooth list is not what’s mentioned in the listing: on mine, it’s WZ-BT5.0. It connected automatically as soon as I turned on the unit. True stereo, currently connected to a pair of Pyramid 4080 I had kicking around. Good, balanced sound.
    2 people found this helpful
    Report
  • Reviewed in Canada on February 7, 2025
    Verified Purchase
    This device worked very well. The only issue is that it drained a 9V battery within 2 days when the unit was off.
  • Reviewed in Canada on May 6, 2024
    Verified Purchase

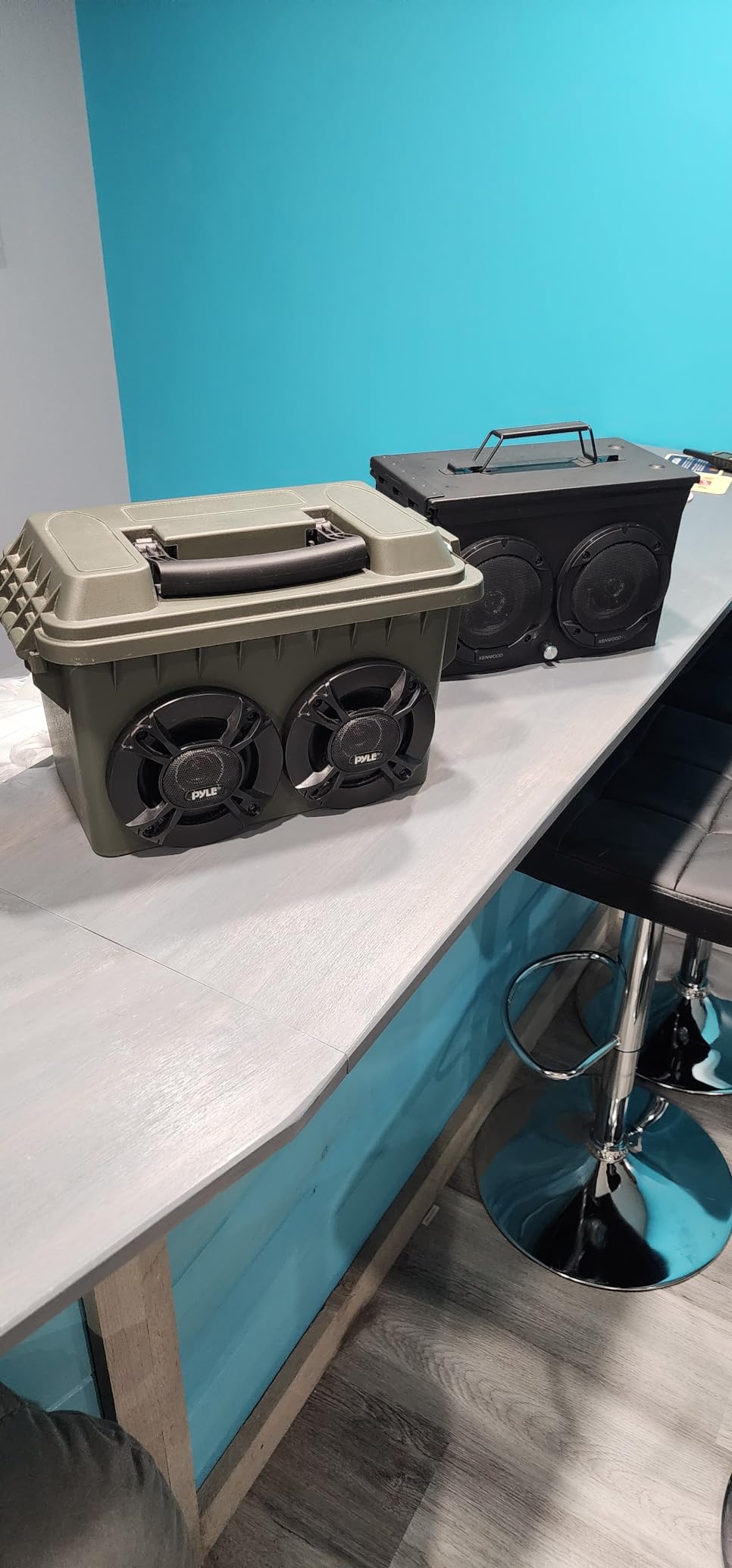

    Exactly what i was looking for, nice clear sound for my ammo box speaker i wanted to try making. Ordered afew now to try with different speakers and they all work great! Definitely worth the $20
