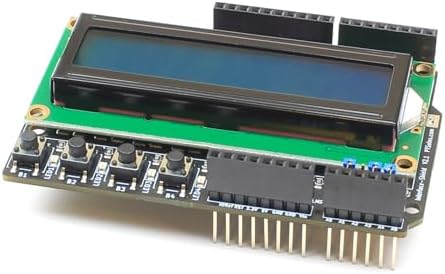

1602 LCD Interface-Shield with Programmable Buttons and LEDs for Uno (Arduino Compatible)

Visit the PTSolns Store

(1)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Interface your Projects: Receive data from the microcontroller development board as well as any other shield in the stack via the 1602 LCD display and the four programmable buttons. Also send commands to the microcontroller via the four programmable buttons. This Interface-Shield is unmatched in terms of features and flexibility.
A Kickstarter Success!: The Interface-Shield was successfully funded via a Kickstarter campaign. To showcase all the features of the product, we made a range of example sketches ranging from how to program the buttons and LEDs in custom menus, to a fun game! To find these examples please search “PTSolns_InterfaceShield” on Arduino IDE library search or go directly to GitHub under the same name.
Compatibility: The Interface-Shield is compatible with a range of microcontroller development boards including the Uno R3+, Uno R3, Uno R4, Mega, Leonardo, and any other that has the same form factor and operates on 5V logic.
What’s Included: Each package includes one (1) PTSolns Interface-Shield, one (1) 1602 LCD, all the required headers, three (3) 2-Pin jumper caps (colour may vary). SOLDERING IS REQUIRED.
PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.

› See more product details

Report an issue with this product

Product information

Technical Details

Brand	‎PTSolns
Manufacturer	‎PTSolns
Model	‎PTS-00156-211
Part Number	‎PTS-00156-211
Number of Processors	‎1
Compatible Devices	‎Arduino Uno
Display type	‎1602 LCD
Batteries included	‎No
Batteries Required	‎No
Connector Type	‎[POSSIBLE_VALUES: USB, Ethernet, GPIO]
Manufacturer	‎PTSolns
Item model number	‎PTS-00156-211
Parcel Dimensions	‎9.4 x 6.1 x 3.3 cm; 70 g
ASIN	‎B0C9S4C665

Additional Information

Date First Available	June 29 2023
Customer Reviews	(1) 5.0 out of 5 stars
�鶹�� Rank	#50,448 in Electronics (See Top 100 in Electronics) #472 in Computer Motherboards
Is discontinued by manufacturer	No

Feedback

Would you like to tell us about a lower price?

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

From the brand

Popular Microcontrollers

Visit the store
Prototyping Boards

Visit the store
Uno Shields

Visit the store
Canadian Designed

Visit the store
Breakout Boards & Adapters

Visit the store

Product Description

Interface-Shield LCD shiel uno r3 r4 microcontroller development board 1602 arduino compatible

The PTSolns Interface-Shield is a shield designed to interface the user with their project employing an Uno microcontroller development board or any other similar board. The Interface-Shield offers a range of features such as programmable buttons and LEDs, hardware and software debouncing filters, configurable addresses, dimmable LCD backlight (onboard potentiometer and PWM pin), interrupt, and much more.

The Interface-Shield communicates with the microcontroller via the I2C bus, and therefore allows the user to fully utilize all the digital and analog pins of the microcontroller, as none are occupied by the LCD. Signal quality is important whenever working with I2C. Therefore, the shield offers slotted large copper pads designed to connect the probes of an oscilloscope in order to view the I2C bus signals.

NOTE: For tutorials and example sketches using the Interface-Shield, please install the custom library in Arduino IDE called “PTSolns_InterfaceShield”, or visit the GitHub website and search for "PTSolns_InterfaceShield".

This product, along with all of the PTSolns products, comes with a detailed datasheet, and other supporting material. Please view our "PTSolns Documentation Repository" to access these documents.

Interface with your Projects

The Interface-Shield is not just an LCD shield, it is much more than that! To interface with your project mean you don't just receive data from it, but also input data to it. This is easily done with the four programmable buttons. Since this Uno shield uses stacking headers, all of the pins of the Uno microcontroller development board are available for input and output.

But there is more ... besides the four programmable LEDs and the contrast and LED backlight brightness control, there are also large SDA and SCL (I2C bus) pads on the PCB. This comes in handy when trying to scope the quality of the I2C bus with an oscilloscope! Simply connect the SDA and SCL prongs and set up the scope to view the signals.

Features of the Interface-Shield

The following features are explained in detail in the datasheet, which can be from our "PTSolns Documentation Repository".

Compatibility: PTSolns Uno R3+, Arduino Uno R4, Uno R3 (THT or SMD versions), Mega 2560 R3, Leonardo, any other similar microcontroller with 5V logic and same pinout.
I2C and shield address: Shield communicates on I2C bus. Eight (8) configurable shield addresses.
Programmable buttons and LEDs: Four (4) buttons and four (4) LEDs (red) that are entirely programmable.
Microcontroller pin access: The Interface-Shield uses stacking female headers and therefore all of the underlying microcontroller pins are available at the upper level.
LCD backlight: The LCD backlight can be controlled via A) onboard potentiometer, or B) via pin D9 on microcontroller.
LCD contrast: The LCD character contrast can be adjusted via the onboard potentiometer.
Interrupt: Send interrupt signal to pin D2 on microcontroller.
Power LED: Onboard power LED (red) illuminates whenever the Interface-Shield is powered.
Oscilloscope I2C connection pads: Slotted large copper pads that can be used to connect oscilloscope probes to the I2C bus.

Package contents

1x PTSolns Interface-Shield PCB
1x 1X6 pin, 2x 1X8 pin, 1x 1X10 stacking female headers
3x 2-pin jumper caps (colour may vary)

NOTE: Assembly required

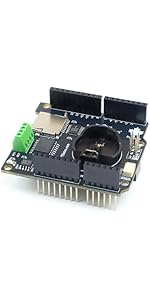

	Uno R3+	RTC Micro SD Shield	NRF-Shield	Proto-Shield	Nano Flip

Function	Uno microcontroller development board compatible with the Interface-Shield	RTC MicroSD Shield compatible with the Interface-Shield	NRF-Shield compatible with the Interface-Shield	Proto-Shield compatible with the Interface-Shield	Nano microcontroller development board
PTSolns Documentation Repository (supporting material)	✓	✓	✓	✓	✓
