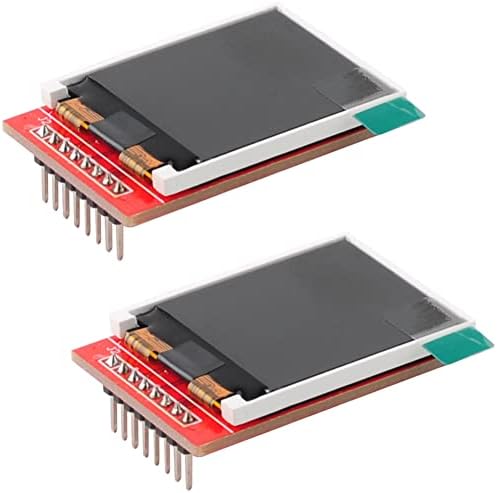

1.44" TFT LCD Display Screen Module 3.3V RGB 65K 128x128 4-Wire SPI ST7735S for Arduino ESP32 Development Board (Pack of 2)

Visit the DIYmalls Store

(43)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

This 1.44 inch spi does NOT have touch.
The 1.44" display is compatible with u n o, 2560, C51(stc89c52rc, stc12c5a60s2), STM32(stm32f103rct6, stm32f103zet6, stm32f407zgt6, stm32f 429igt6).
It's a 3.3 volt screen, so it will not work without resistors on a 5v device like an U N O.
If you're using a 5v microcontroller then four 560 Ohm, 680 Ohm or 1k Ohm resistors are needed for the data lines SCK, SDA, AO, and CS, to pull the voltage down from Ar duino pins.
You will get 2pcs 1.44 inch tft lcd display.

› See more product details

Report an issue with this product

This item: DIYmalls 1.44" TFT LCD Display Screen Module 3.3V RGB 65K 128x128 4-Wire SPI ST7735S for Arduino ESP32 Development Board (Pack of 2)

$16.98

Get it by Friday, Feb 27

In Stock

Sold by DIYmalls and ships from �鶹�� Fulfillment.

Freenove ESP32-S3 ESP32 S3 Board Lite (2 Pack), Dual-core 32-bit 240 MHz Microcontroller, Onboard Wireless, Python C Code, Example Projects Tutorial

$30.95

Get it by Friday, Feb 27

In Stock

Sold by Freenove and ships from �鶹�� Fulfillment.

Total price:��$00

To see our price, add these items to your cart.

Try again!

Details

Added to Cart

These items are shipped from and sold by different sellers.

Show details Hide details

Choose items to buy together.

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

From the brand

DIYmalls Display

LoRa OLED TFT SPI LCD ESP32 with Display Nextion

Nerd Miner

Visit the store
OLED Display

Visit the store
LoRa with Display

Visit the store
LoRa Parts

Visit the store
TFT LCD Display

Visit the store
Plug-in Display for 2560

Visit the store
ESP32 with Display

Visit the store
ESP32 Display with Case

Visit the store
Nextion Display

Visit the store
FS90R Servo Parts

Visit the store
GPS Receiver

Visit the store
Accessories

Visit the store

Product Description

Specification:

Display Color: RGB 65K color

Screen Size: 1.44(inch)

Type: TFT

Driver IC: ST7735S

Resolution: 128*128 (Pixel)

Module Interface: 4-wire SPI interface

Logic IO port voltage: 3.3V(TTL)

Active Area (AA area): 26.2x27.2(mm)

Module PCB Size: 29.7x43.36(mm)

	0.96 OLED White	2004 LCD	1.8 TFT LCD	2.4 TFT LCD	2.8 TFT LCD	3.5 TFT LCD
		Buying Options			Buying Options
Customer Reviews	21	39	26	18	11	28
Size	0.96 inch	20x4	1.8 inch	2.4 inch	2.8 inch	3.5 inch
Resolution	128x64	/	128x160	320x240	320x240	480x320
Touch Type	No Touch	No Touch	No Touch	Resistive Touch	Resistive Touch	Resistive Touch
Voltage	3.3V - 5V	5V	5V/3.3V	5V/3.3V	5V/3.3V	5V/3.3V
IC	1306 of S S D	AIP31066	ST7735S	ILI9341	ILI9341	ILI9486

	1.28" ESP32 Touchscreen	2.4" ESP32 Touchscreen	2.8" ESP32 Touchscreen	3.2" ESP32 Touchscreen	3.5" ESP32 Touchscreen	4.3" ESP32 Touchscreen
	Buying Options
Customer Reviews	18	33	181	15	73	9
Size	1.28 inch	2.4 inch	2.8 inch	3.2 inch	3.5 inch	4.3 inch
Resolution	240x240	240x320	240x320	240x320	320x480	800x480
Touch Type	Capacitive Touch	Capacitive Touch	Resistive Touch	Capacitive Touch	Capacitive Touch	Capacitive Touch
Voltage	5V	5V	5V	5V	5V	5V
IC	GC9A01	ILI9341	ILI9341	ST7789	ST7796	ILI9485

Product information

Technical Details

Manufacturer	‎DIYmalls
Place of Business	‎DIYmalls
Part number	‎DM2603AX2
Item Weight	‎23 g
Parcel Dimensions	‎7.62 x 4.32 x 3.05 cm; 23 g
Manufacturer reference	‎DM2603AX2
Style	‎Pack of 2
Item Package Quantity	‎1
Included components	‎2pcs 1.44 inch tft lcd
Batteries Included?	‎No
Batteries Required?	‎No

Additional Information

ASIN	B0BFDJMQM8
Customer Reviews	(43) 4.3 out of 5 stars
�鶹�� Rank	#17,850 in Electronics (See Top 100 in Electronics) #411 in Computer Monitors
Date First Available	Sept. 15 2022
