| Manufacturer | GFFG |
|---|---|
| Part number | LJQ-US |
| Item Weight | 360 g |
| Parcel Dimensions | 20.5 x 13.6 x 3.7 cm; 360 g |
| Item model number | 320PCS |
| Material | Copper |
| Batteries Included? | No |
| Batteries Required? | No |
Frequently bought together

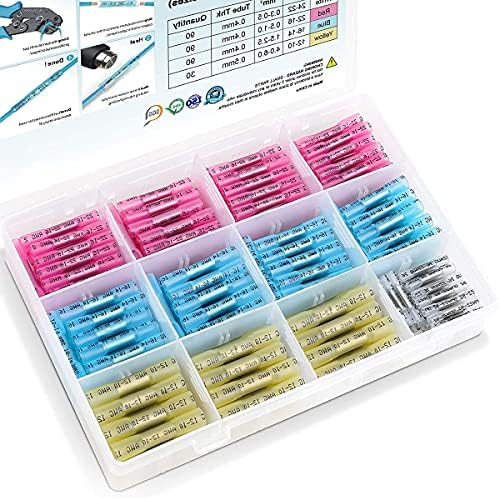

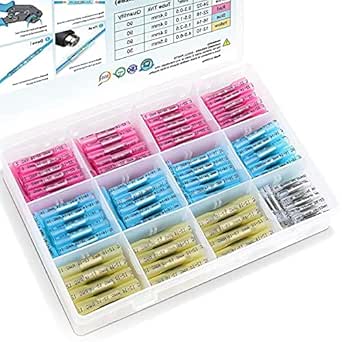

This item: GFFG 320PCS Heat Shrink Butt Connectors Kit, Waterproof Electrical Marine Automotive Wire Crimp Terminals, Insulated Butt Splice
$22.99
Get it by Sunday, Feb 8
In Stock
+
$34.99
Get it by Sunday, Feb 8
In Stock
+
$21.19
Get it by Sunday, Feb 8
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product information
Additional Information
| ASIN | B09B8ZH3RB |
|---|---|
| Customer Reviews |
4.3 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | Aug. 4 2021 |
Feedback
Product Description
Whether you are working on your boat, vehicle, home or scientific projects, our heat shrink butt connectors will ensure strong crimps, increased current flow and waterproof connections every time!
Wire gauge imprint on connectors and color identification.
Package Included:
- 50* Yellow connector: Suits cable/ wire sizes 0.2-0.5mm2 26-22 GA
- 90 * Red connector: Suits cable/ wire sizes 0.5-1.0mm2 22-18 GA
- 90* Blue connector: Suits cable/ wire sizes 1.5-2.5mm2 16-14 GA
- 90* White connector: Suits cable/ wire sizes 4.0-6.0mm2 12-10 GA
Step to Use:
1. Insert the two wires to the right size connector.
2. Crimp the metal part in the middle of the butt connector by pliers.
3. Apply heat to the two end of the
connector to make it tighten up the wire.
Conductor: High-quality Copper tubular.
Finished: Tin-plated.
Insulation Material: Dual wall heat-shrinkable tube, Lined with hot melt adhesive, Heat.
shrinking ratio: 3:1
Heat resistant:-55 - 125℃;
Shrinking Temperature: 125 - 130 ℃
NOTE:
The male and female quick disconnect terminals are made with thinner (0.4mm) but harder tinned brass for durable quick disconnect and connect applications.
Only the polyolefin tubing is waterproof after heating, the metal ring is NOT waterproof.
Dual-walled: polyolefin tubing on the outside and hot melt adhesive in inside.
Ideal translucent provides tensile strength, allows visual inspection, prevents corrosion, and provided a waterproof seal.
Flared insulation for easy cable insertion and Wire-stop structure is conductive to insertion wire in right place to ensure the effect of compression.
