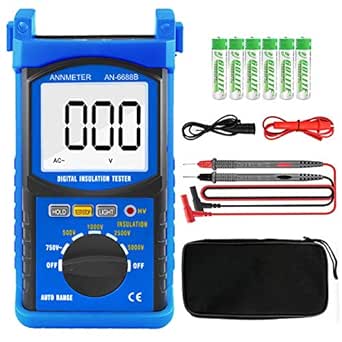

AIOMEST Digital Insulation Resistance Tester, Megohmmeter 200GΩ Meghometre Testing Voltage 500/1000/2500/5000V, Mega Ohm Megger Meter AC Voltmeter with HV Over-Range Indicator, AI-6688B

Visit the AIOMEST Store

(5)

Lowest price in 30 days

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Brand	AIOMEST
Power source	Battery Powered
Style	Digital
Colour	Blue
Item weight	200 Grams
Min. Operating voltage	500 Volts
Specification met	IEC 1010
Measurement type	Voltmeter
Maximum operating voltage	750 Volts
Manufacturer	ANNMETER

About this item

🎯【Wide Range Insulation Testing】Accurately test insulation resistance from 1MΩ to 200GΩ with selectable output voltages of 500V, 1000V, 2500V and 5000V. AIMOEST megohm meter AI-6688B is ideal for electricians, HVAC technicians, and home inspectors performing safety checks on cable/wiring, motors, A/C compressor, and electrical installations.
🎯【AC Voltage Measuring】Enhance your diagnostic capabilities with AI-6688B megohmmeter megger meter that not only measures insulation resistance but also supports precise AC volt measurement from 1V to 750V with ±(2% reading + 5 digits) accuracy and a frequency range of 40-400Hz. 1999-count display provides precise readings, making it an essential tool for both insulation and voltage testing.
🎯【Accurate & Convenient】Features automatic zero calibration and polarity display for precise results. The 3.4-inch backlit screen with data hold function ensures easy reading in any light. Battery-powered with low battery indicator, this meggar ohm tester meghometre ensures you’re always prepared.High load capacity with 1mA short-circuit output current for reliable performance in demanding tasks.
🎯【Safety First Design】Designed in compliance with IEC-1010 standards for double insulation and overvoltage category II, this megger insulation tester features a robust insulating protective case. It offers auto-ranging for user convenience and includes high voltage and overload indicators. These features ensure safe and reliable operation, effectively protecting you from electrical shock accidents.
🎯【Accessories & Warranty】AIMOEST 5000v digital insulation resistance tester AI-6688B comes with test leads, alligator clip, handheld carrying case, 6pcs 1.5V batteries and 365days quality warranty and lifetime tech support.

› See more product details

Report an issue with this product

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

Product Description

Digital Insulation Resistance Tester

Technical Parameter

Optional Output Voltage:	500V/1000V/2500V/5000V
Insulation Resistance:	1��Ω-200��Ω
Insulation Resistance Accuracy	1MΩ~200MΩ：±(3% of reading + 5 digit); 200MΩ ~ 10GΩ：±(5% of reading + 5 digit); 10GΩ ~ 200GΩ：±(10% of reading + 5 digit);
AC Voltage Measurement	1~750V, Accuracy: ±(2% of reading + 5 digits), 1V Resolution
Frequency Range:	40-400Hz
Short Circuit Current:	Approximately 1mA
More Features	Data Hold; Over-range Indicator; Polarity Display; Auto Zero Calibration; Double Insulation Design

Auto Range Insulation Resistance Tester

The Auto Range mega tester is perfect for electricians and maintenance professionals. It features a polarity display to ensure correct connection, an over-range indicator to alert you of measurement limits, and automatic zero calibration for precise results.

4 Optional Testing Voltages

Wide testing insulation ohm from 1MΩ to 200GΩ with multiple output voltage options—500V, 1000V, 2500V, and 5000V—ensuring flexibility for various application. Ideal for both residential and industrial settings, making your electrical testing tasks efficient and safe.

From the brand

Measurement Solution Provider

Since its establishment, AIOMEST has focused on product quality and is committed to providing consumers with high-quality products.

New Release & Affordable

Visit the store
Outdoor Enthusiasts Must Have

Visit the store
More HVAC Tools

Visit the store
Multifunctional Multimeter

Visit the store
Multi Infrared Thermometer

Visit the store
Indoor Air Quality Tester

Visit the store

Product information

Technical Details

Manufacturer	‎ANNMETER
Part number	‎AI-6688B
Item Weight	‎200 g
Parcel Dimensions	‎26 x 24.4 x 8.6 cm; 200 g
Batteries	‎6 AAA batteries required.
Item model number	‎AI-6688B
Colour	‎Blue
Style	‎Digital
Power source type	‎Battery Powered
Specifications	‎IEC 1010
Batteries Included?	‎No
Batteries Required?	‎No
Battery Cell Type	‎Zinc Carbon

Additional Information

ASIN	B08DHXTW18
Customer Reviews	(5) 4.1 out of 5 stars
�鶹�� Rank	#57,563 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #10 in Ohmmeters
Date First Available	July 28 2020
