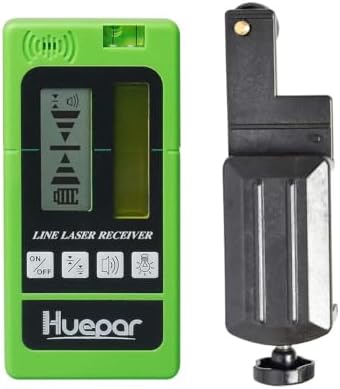

Huepar LR-5RG Laser Receiver, Up to 200ft Green and Red Beam Laser Detector, Compatible Only with Huepar Laser Levels with Pulse Mode Function,

4.4 out of 5 stars (873)
鶹's Choice highlights highly rated, well-priced products available to ship immediately.
鶹's Choice

Sustainability features

This product has features recognized as more sustainable by certifying organizations.
Recycled materials
Contains at least 50% recycled material.
As certified by
Global Recycled Standard

Global Recycled Standard

Global Recycled Standard (GRS) certified products contain recycled content that has been independently verified at each stage of the supply chain, from the source to the final product and meet social, environmental, and chemical requirements. The purchase of Global Recycled Standard (GRS) certified products supports the use of recycled content in the supply chain. A product must contain at least 50% certified GRS material to qualify for inclusion in Climate Pledge Friendly.

Certification number

TE-00305005

Certification body

Bureau Veritas
To see product details, add this item to your cart. You can always remove it later.
Coupon:
Apply 10% coupon Shop items | Terms
on any 2 qualifying items | Terms
if you qualify qualifying items | Terms
when you buy $300 of select items qualifying items | Terms
with a qualifying purchase Terms | Shop items

Purchase options and add-ons

About this item

  • Compatible Huepar Items: Huepar LR-5RG receiver can only be used with Huepar line laser levels that have pulse mode function!!! Compatible with Huepar BOX-1G, BOX-1R, B03CG, B02CG, B21CG, 5011G, 602CG, 602CR, 603CG, 603CG-BT, 603CR, 703CG, 704CG, 901CG, 902CG, 903CG, 904DG, 8211G, S02CG, S03CG, S03CG-L, S03DG, S03DG-L, S04CG, S04CG-L, LS03CG, LS03DG, LS04CG, NT411G, L141G, LS41G, E011G, P02CG, P03CG, P04CG, R03CG, 621CG, 621CR, 622CG, 622CR, GF360G,GF360R, 7211CG, HM03CG, W03CG, W04CG,D011CG etc.
  • Not Compatible Huepar Items: Please NOTE this laser receiver LR-5RG is NOT Compatible with Rotary Laser Level !!! And can NOT be used with Huepar 9011G, 9211G, FL360R, FL360G, 8300G, B011G, B011R, FC011G, FC011R, 9300G, GK011DG Laser Level and RL200HR, RL200HVG, RL300HR, RL300HVG Rotary Laser Level !!!
  • Instruction for Use This Laser Receiver LR-5RG: When use with this laser receiver LR-5RG, make sure the laser level is in pulse mode function. It is Necessary to Turn ON the Pulse Mode of the Laser Level when Using With this LR-5RG Laser Receiver!!! Please Keep the Pulse Mode ON All The Time When Working
  • Available for Red and Green Pulse Laser: It is necessary to turn on the pulse mode of the laser level when using with Huepar LR-5RG laser receiver. The receiver allows detection of red and green pulse laser beams in difficult light conditions, distances up to 197 feet
  • Large Reception Window & Dual LCD Display: Large reception window of 2 inches helps to locate the laser plane quickly and accurately. Dual LCD displays for easy visual readout on both sides of the receiver. LCD backlight provides a clear look even in low light conditions. Adjust the height until the horizontal datum line and the arrow disappear on the LCD display

Frequently bought together

This item: Huepar LR-5RG Laser Receiver, Up to 200ft Green and Red Beam Laser Detector, Compatible Only with Huepar Laser Levels with Pulse Mode Function,
$69.99
Get it by Monday, Feb 9
In Stock
Sold by Huepar-CA and ships from 鶹 Fulfillment.
+
Huepar 360° Laser Level with 50" Stable Tripod, Self-Leveling & Rechargeable, Pulse Mode for Outdoor Use, Hard Carrying Case,
$199.99
Get it by Monday, Feb 9
In Stock
Sold by Huepar-CA and ships from 鶹 Fulfillment.
+
Firecore 13-Foot Aluminum Grade Rod, 8ths, 4 Sections Dual Sided Telescopic Rod with Bubble Level, Ideal for Leveling with Co
$59.99
Get it by Monday, Feb 9
In Stock
Sold by Firecore-Tools and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Previous page

  1. Huepar S04CG 4D Laser Level with Receiver for Outdoor or 200ft Long Distance Use, Upgraded Bluetooth 4x360° Green Beams for Construction, Tiling, Framing, Drop Ceiling, Floor Installation212
    $279.99

  2. Huepar Professional 4x360 Laser Level 360 Self-Leveling, 1/13" Accuracy, Green Laser Line with LCD Screen & Pulse Mode, Adjustable Brightness, Magnetic Base & Hard Carry Case, HX04CG439
    $180.49

  3. Huepar Laser Detector for Line Laser Level, Digital Laser Receiver Used with Pulsing Line Lasers Up to 200ft, Detect Red and Green Laser Beams, Three-Sided LED Displays -Clamp Included LR-6RG1,612
    $64.99

  4. Huepar W03CG New Construction Laser Level 3x360 Self Leveling, 3D 12 Lines Bluetoothed Laser Level with Electric Rotating Base ＆ Large LCD Screen, 3 Planes Green Cross Lazer Leveler Tool127
    $289.99

  5. Huepar 16-Foot Aluminium Grade Rod -8ths 5 Sections Telescopic with Bubble Level- Waterproof Soft Carrying Bag Included GR5133
    $69.99

  6. Huepar S04CG Professional Laser Level Self Leveling, 4D 360 Construction Lazer Leveler Tool with LCD Screen, Bluetooth＆ Remote Control, 4x360° Green Cross Line Laser, Outdoor Pulse Mode, Gifts for Men212
    $229.99

  7. Huepar Fine-Tuning Bracket Laser Level Adapter, Multifunctional Magnetic Pivoting Base with Adjustable Clip, 360° Adjustable Support with 1/4"-20 Male Threaded- PV10+598
    $55.99

  8. Huepar 4x360 Laser Level Self-Leveling 16 Lines Green Beam 4D Cross Line Tiling Floor Laser Tool-2 x 360 Horizontal & 2 x 360 Vertical Laser Lines with Two Li-ion Batteries and Hard Carry Case-LS04CG1,686
    $249.99

  9. Huepar Laser Level Self Leveling with 60Inch Tripod, Rechargeable 360 Niveau Laser Tool, ±1/9 Inch Accuracy, 3 Brightness Levels, Pulse Mode, Perfect for Use on Walls, Floors, and Ceilings Etc.1,128
    $109.99
Next page

Sustainability features

This product has features recognized as more sustainable by certifying organizations.

Recycled materials

Contains at least 50% recycled material.

As certified by
Global Recycled Standard
Safer chemicals

Made with chemicals safer for human health and the environment.

As certified by
Global Recycled Standard
Worker well-being

Manufactured on farms or in facilities that protect the rights and/or health of workers.

As certified by
Global Recycled Standard

From the brand

Previous page
  2. Huepar laser level

  3. How we get our start?

    Huepar was founded in 2013 by Lynn, an engineer who saw a neighbor redo a project due to measuring errors. Recognizing that precision was key, yet high-end tools were out of reach for many, she desinged the first laser level.

    What makes our products unique?

    We are uniquely positioned to focus on customer needs and strive to create high quality tools at competitive prices.

    Why choose Huepar?

    Huepar focus on providing reliable, smart tools that make work easier, safer, and more efficient. High quality products that solve problems and increase efficiency is our promise to you.

  4. huepar
  5. Huepar Laser Level Self Leveling, Professional 150ft ± 1/13in Accuracy and Brighter Green Laser C...
    Huepar Classical Cross Laser Level Line with 360° Magnetic Pivoting Base, DIY Niveau Laser Self L...
    Huepar Laser Level Self Leveling with 25.6inch Compact Tripod, Indoor Use Only, Brighter Green Cr...
    Huepar Self-Leveling Laser Level 150ft Outdoor Cross Line Laser, Selectable Laser Lines with Puls...

    Huepar Small DIY Laser Levels

    Visit the store

  6. Huepar S04CG 360 Laser Level Self Leveling with LCD Screen, 4x360° Green Cross Line Laser, 4D Blu...
    Huepar Professional 4x360 Laser Level Self Leveling, Professional 4D Green Beam Cross Line 16 Lin...
    Huepar 4x360 Laser Level Self-Leveling 16 Lines Green Beam 4D Cross Line Tiling Floor Laser Tool-...
    Huepar Professional 4x360 Laser Level Self-Leveling with Remote Control, 16 Lines 4D Green Cross ...

    Huepar Upgraded Laser Levels

    Visit the store

  7. Huepar 3x360 Laser Level with 47
    Huepar BOX-1G Laser Level Self Leveling with 25.6 Inch Tripod, Professional 150ft ± 1/13in Accura...
    Huepar Lazer Level 360 Self Leveling with 60Inch Tripod, Rechargeable Niveau Laser Tool, Gift for...
    Huepar 360° Laser Level with Tripod, Self-Leveling & Rechargeable, Pulse Mode for Outdoor Use, Ha...

    Huepar Laser Level with Tripod

    Visit the store

  8. Huepar LR-5RG Laser Receiver, Up to 200ft Green and Red Beam Laser Detector, Compatible Only with...
    Huepar Fine-Tuning Bracket Laser Level Adapter, Multifunctional Magnetic Pivoting Base with Adjus...
    Huepar Tripod Lightweight 56
    Huepar 12 Ft./3.7m Telescoping Pole with 1/4-Inch by 20-Inch Laser Mount for Rotary and Line Lase...

    Huepar Laser Level Accessories

    Visit the store

  9. Huepar Magnetic Torpedo Level, Conduit Level with 4 Vials, 6.2 inch Aluminum Alloy Construction S...
    Huepar Professional Green Laser Measurement Tool 328ft/100m with Angle Sensor, ±2mm Accuracy, Rec...
    Huepar Digital Level Angle Gauge Mini Angle Finder Level Box with V-Groove Magnetic Base&Backligh...
    Huepar Laser Level Adapter, Metal 360-Degree Rotating Base for Laser Level Tripod Connector, 1/4’...

    Other Huepar Tools

    Visit the store

  10. construction tools
  11. huepar story
  12. huepar laser levels
Next page

Product Description

WHY CHOOSE HUEPAR --- PREMIUM SERVICE, SUPERIOR QUALITY

  • 24/7 Excellent Consumer Service -we promise to respond in 24hrs and solve the problem in 48hrs.
  • Hassle free of Exceeding Service Period- all products purchased from Huepar come with a Lifetime Customer Support.
  • Worldwide Maintenance Centers - everywhere around the globe, your product can be repaired or replaced faster.

1

Please be aware that this laser receiver LR-5RG is only compatible with Huepar laser levels which with pulse mode function!!!

Please note NOT compatible with Rotary Laser Level!!!

Huepar LR-5RG can NOT be used with other brands' laser level!!!!!!

Compatible Huepar Items: Huepar BOX-1G, BOX-1R, B03CG, B02CG, B21CG, 5011G, 602CG, 602CR, 603CG, 603CG-BT, 603CR, 703CG, 704CG, 901CG, 902CG, 903CG, 904DG, 8211G, S02CG, S03CG, S03CG-L, S03DG, S03DG-L, S04CG, S04CG-L, LS03CG, LS03DG, LS04CG, NT411G, L141G, LS41G, E011G, 503CG, 503DG, P02CG, P03CG, P04CG, R03CG, 621CG, 621CR, 622CG, 622CR, GF360G,GF360R, 7211CG, HM03CG, W03CG, W04CG etc.

This laser receiver can NOT compatible with Huepar 9011G/9211G/FL360R/FL360G/8300G/B011G/B011R/FC011G/FC011R/9300G/GK011DG Laser Level and RL200HR/RL200HVG/RL300HR/RL300HVG Rotary Laser Level!!

If you are not sure whether it suits for your laser tool, please confirm with us before you place an order.

2

Huepar LR-5RG Laser Detector Specifications:

  • Working Distance: 130ft~200ft (typical) depend on light source
  • Operating Time: 20 hours; Auto Power Off (with No Signal Detected): 10min
  • Dimension (LxWxH): 14cm×6.8cm×2.6cm; Weight: 140g
  • Pulse duration: 50 μs ; PWM: 5:5
  • Frequency: 10KHz (Matched PWM and frequency, Line lasers can work with LR-5RG Laser Receiver)
  • Power Source: 2*AA Batteries (Alkaline)
  • Leveling Accuracy (High): ≤2mm(1/13in)
  • Leveling Accuracy (Low): ≤3mm(1/9in)

Using Tips

  • Make sure the laser level is compatible with this laser receiver LR-5RG.
  • It's necessary to put the laser level in Pulse Mode Function.
  • Made sure the laser level and the Receiver windows were clean.
  • Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).

Package Includes:

  • 1*Huepar LR-5RG Digital Laser Detector
  • 1*Heavy-duty clamp
  • 2*AA batteries

4

LCD Icons

Move the Detector as the Direction Shown:

● Datum Lower than Laser Beam – Move Up

● Datum Higher than Laser Beam – Move Down

● When Datum in Line with Laser Beam – The Direction becomes a Line

6

Humanized Function

It boasts a dual-sided LCD display, backlight and battery status. Can toggle through the volume and accuracy. While the accuracy mode allows you to switch between HIGH and LOW.

7

Built-in Bubble and Holder

LR-5RG Laser Detector comes complete with a compatible rod mounting bracket.

A built-in bubble level provides an extra measure of leveling accuracy.

8

High Quality

Robust and built tough to last, the detector is durably constructed with a hard plastic housing and rubber casing for long-term use, as well as protection against wet weather conditions when working outdoors.

BOX-1G
BOX-1R
B03CG
904DG
S02CG
LS03DG
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
4.4 out of 5 stars 10,625
4.4 out of 5 stars 10,625
4.4 out of 5 stars 3,857
4.3 out of 5 stars 155
—
4.5 out of 5 stars 1,686
Compatible with LR-5RG Laser Receiver ✓ ✓ ✓ ✓ ✓ ✓

Product information

Technical Details

Manufacturer ‎LevelsureCA
Place of Business ‎zhuhaishi, guangdongsheng 519000,CN
Part Number ‎lr510ca
Product Dimensions ‎14 x 6.71 x 0.1 cm; 300 g
Manufacturer reference ‎lr510ca
Is discontinued by manufacturer ‎No
Colour ‎Green
Style ‎LR-5RG-CA
Material ‎Acrylonitrile Butadiene Styrene, Thermoplastic Elastomers
Power Source ‎battery-powered
Item Package Quantity ‎1
Usage ‎Outside
Batteries Included? ‎Yes
Batteries Required? ‎Yes
Battery Cell Type ‎Alkaline
Item Weight ‎300 g

Additional Information

ASIN B077D7G3KV
