Durable & Reliable Dual Swing Gate Opener

• TOPENS AT1202 Automatic Gate Opener features two 24VDC 80W motors with higher efficiency, lower power consumption, and greater safety.
• It is designed as the superior value kit for Heavy Duty dual swing gates up to max 400kg in weight OR max 5.5m in length per gate leaf.
• This ultra-quiet electric gate motor will bring your family an easier and more comfortable life.

AC Electricity Powered, Solar Capable

• Built-in transformer, AT1202 gate opener can be powered by 110-120VAC electricity directly.
• You can use AC power alone, or together with 24V 20W solar panel & solar charge controller (NOT incl.) to charge the 24V 12Ah Automotive / Marine type battery (NOT incl.).
• The battery is used as back-up power source only.

Multiple Applications, Easy DIY Installation

• Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link.
• Typical application includes residential, courtyard, pasture, farm & ranch.
• The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours.

Help

• Choose TOPENS gate opener, visit our website to download the user manual, watch the installation video and enjoy our consultant service directly.
• If you have any questions, get in touch with us. TOPENS experts will find you the solution.

Smart Chip

• The “auto-close” function ultimately secures the property after you leave.
• Stops in case of obstruction during gate opening, and reverses in case of obstruction during gate closing. Adjust the stall force to get your desired open / close obstruction sensitivity. Higher stall force level, lower obstruction sensitivity.
• Soft start and soft stop ensure a long-lasting performance.
• The above modules can be adjusted on the smart control panel directly.

Gate Capability

• AT1202 gate opener works well for the heavy duty dual swing gate up to a maximum of 5.5m in length (correspondingly 110kg in weight) per gate leaf.
• Suitable for the swing gate up to 400kg in weight (correspondingly 1.2m in length) per gate leaf.
• Kindly note that the max. gate length capability is inversely proportional to the gate weight.

Max. Opening Angle of the Gate in Pull-to-Open Installation Mode

• The gate is allowed to open inwards viewed from inside property with the pull-to-open mode. The related bracket is included.
• In this mode, the maximum opening angle of the gate varies from 68° - 112° depending on the installation of the bracket.

Max. Opening Angle of the Gate in Push-to-Open Installation Mode

• The gate is allowed to open outwards viewed from inside property with the push-to-open mode. The related bracket is included.
• In this mode, the maximum opening angle of the gate varies from 79° - 107° depending on the installation of the bracket.

TOPENS Remote Control

• Adopting advanced TOPENS code technology, the remote control prevents unwanted entry.
• For your gate safety, only TOPENS authorized remotes and wireless accessories are allowed to operate the TOPENS Gate Opener.
• Operation Range: 65ft. (20m)
• Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately.

Specifications

• Product Model: AT1202 Gate Opener
• Motor Voltage: 24VDC
• Motor Power: 80W
• Rated Current: 3A
• Gate Opening / Closing Time: approx. 15 seconds (ideal condition)
• Max. Opening Angle: 68° - 112° depends on the installation mode
• Working Temperature: -20℃~ +50℃ (0°F to 120°F)
• Sound Level: < 50 dB
• Protection Class: IP44 Waterproof

Dimensions

• Dimension of the Arm (Actuator): 829 x 124 x 208 mm
• Dimension of the Control Box: 276 x 214 x 87 mm

Package

• Package Dimension: 90 x 44 x 19 cm
• Shipping Weight: 21.6kg

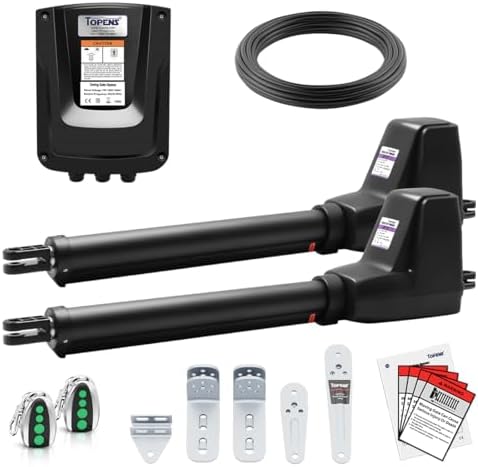

What’s in the Box

• 2 x Gate Opener Actuator (Arm), with a 1.5m 5-Conductor Cable per Arm
• 1 x Waterproof Control Box
• 1 x 7.5m Extension 5-Conductor Cable for Actuator
• 2 x M12 Remote Control Transmitter
• 2 x Emergency Release Key
• 1 x 1.5m 2-Conductor Power Supply Cord
• 2 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
• 2 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
• 1 x Full Set of Required Installation Hardware
• 4 x Warning Sign, 1 x Detailed Installation Manual

Manual Release Key

• Equipped with manual release key in case of power outage or when you lose your remote.

Power Mode 1 (Default Mode) – Use AC Electricity Only

• Use the 110-120VAC electricity to power the system only.
• Recommended where AC electricity is accessible and stable.
• The power supply cord is included.
• The specification of the power supply cord is 2 × 0.75 mm2.
• Connect the live wire and neutral wire to the (#1) and (#3) terminal respectively. No matter the polarity.
• Release the clutch and open the gate manually in case of power outage.

NOTE: The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.

Power Mode 2 – By AC Electricity and Back-up Batteries

• Batteries as back-up power source, use the AC electricity to charge the batteries.
• Recommended where AC electricity is accessible, but not stable.
• Requires additional 24V 12Ah Automotive / Marine type battery (NOT incl.).
• 2 pcs 12V batteries connected in series for 24V (Battery is NOT included).

Power Mode 3 – By AC Electricity, Solar Panels and Back-up Batteries

• By 110-120VAC electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller together to charge the batteries.
• Recommended where AC electricity is accessible, but not stable.
• Requires additional 24V 12Ah Automotive / Marine type battery.
• 2 pcs 12V batteries connected in series for 24V.
• TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is available online.

Access & Control

• TC196 Tuya WiFi Remote Control (ASIN: B0CGR6XX62): control the gate opener with your cellphone anytime and anywhere
• M12 Remote Control (ASIN: B075L4BN21): up to 8 remotes can be programmed to the gate opener directly
• ERM12 External Receiver (ASIN: B075KHPLHD): allows up to 250 remotes to be programed with the gate opener
• TC188 Universal Keypad (ASIN: B09VGTCCJQ): open the gate with a user defined password, use this keypad wirelessly, or wire it to the gate opener according to your needs
• TKP3 Wireless Keypad (ASIN: B075K783DS): open the gate with a user defined password
• TC175P Wired Keypad (ASIN: B07ZTB33JK): open the gate with a user defined password / ID card
• TEW3 Vehicle Sensor Exit Wand (ASIN: B07DF8ZQNB): opens the gate automatically when it senses an approaching car
• HLR01 Homelink Remote Control Kit (ASIN: B07CWNX1P8): links the gate opener with your car's HomeLink system

Push Buttons & Security

• TC148 Waterproof Wall Push Button (ASIN: B09VGKDNQL): open and close the gate simply by pressing the wired button, fully waterproof
• TC147 Wall Push Button (ASIN: B07ZTB2TQH): open and close the gate simply by pressing the wired button, not waterproof
• TC173 Wireless Push Button (ASIN: B07ZTC75CX): open and close the gate simply by pressing the wireless button
• TRF3 Reflection Photocell Sensor (ASIN: B07ZTCMWFT): prevents the gate from closing when obstructed, adds security with simple wire connection
• TC102 Photo Eye Beam Sensor (ASIN: B07ZTB4VML): prevents the gate from closing when obstructed, adds security
• JD24VY 24VDC Warning Light (ASIN: B07ZTB326B): flashing when the gate is moving, improving your gate safety
• ET24 Electric Gate Lock (ASIN: B07NKQH8H3): locks and unlocks the gate automatically

Power Supply & Cable

• TSP30W 30W Solar Panel Charging Kit: converts your gate opener to solar, including 3 x 10W solar panels and a solar charge controller
• TSQ20W 24V 20W Solar Panel Kit: converts your gate opener to solar, including 2 x 10W solar panels
• TCS3 Solar Charge Controller: intelligent management of charging, provides protections for batteries
• 25FT Extension 5-Conductor Cable: extension 5 core conductor cable for the arm (actuator)

Replacement Parts

• AT12JB Arm Actuator (ASIN: B0BF4T7DNV)
• PKMJ1A Control Panel (ASIN: B07ZTB4TJN)
• ALS01 Limit Switch (ASIN: B078TBH86G)
• MK01 Mounting Hardware Kit (ASIN: B07ZTC94Y7)
