  • VIDEO
  • DIYmalls 1.8" inch TFT LCD Display Screen Module 4-Wire SPI Interface ST7735S 128x160 w/SD Card Slot for Arduino 2560 Development Board
  • DIYmalls 1.8 inch TFT LCD Display TestDIYmalls

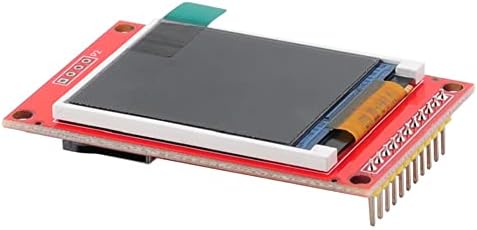

1.8" inch TFT LCD Display Screen Module 4-Wire SPI Interface ST7735S 128x160 w/SD Card Slot for Arduino 2560 Development Board

3.8 out of 5 stars (26)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

  • This 1.8 inch spi module does NOT have touch.
  • The 1.8" display can be directly plug into u no and 2560.
  • Wiring with C51 series STC89/STC12: VCC-5V/3.3V, GND-GND, NC no need to connect, CLK-P17, SDA-P15, RS-P12, RST-P33, CS-P13.
  • Wiring with mini STM32: VCC-5V/3.3V, GND-GND, NC no need to connect, CLK-PB13, SDA-PB15, RS-PB10, RST-PB12, CS-PB11.
  • You will receive 1pcs 1.8 inch tft lcd display, other accessories excluded.
› See more product details

Frequently bought together

This item: DIYmalls 1.8" inch TFT LCD Display Screen Module 4-Wire SPI Interface ST7735S 128x160 w/SD Card Slot for Arduino 2560 Development Board
$14.98
Get it by Wednesday, Mar 18
Only 4 left in stock.
Sold by DIYmalls and ships from 鶹 Fulfillment.
+
HiLetgo DDS AD9850 Signal Generator Module 0-40MHz Sine Wave and 2 Square Wave Output IC Test Equipment
$33.59
Get it by Tuesday, Mar 17
In Stock
Sold by HiLetgo and ships from 鶹 Fulfillment.
+
Cylewet 5Pcs KY-040 Rotary Encoder Module with 15×16.5 mm with Knob Cap for Arduino (Pack of 5) CYT1062
$18.72
Get it by Tuesday, Mar 17
Only 9 left in stock.
Sold by Aloway and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
Some of these items ship sooner than the others.
Show details Hide details
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Previous page

  1. DIYmalls 2.8" SPI TFT LCD Display ILI9341 Resisive Touch Screen Module 320x240 5V/3.3V w/Card Slot for Arduino ESP32 Development Board21
    $20.98

  2. DIYmalls 1.44" TFT LCD Display Screen Module 3.3V RGB 65K 128x128 4-Wire SPI ST7735S for Arduino ESP32 Development Board (Pack of 2)44
    $16.98

  3. Hosyond 3.5 Inches TFT LCD Touch Screen Shield Display Module 480x320 SPI Serial ILI9488 with Touch Pen Compatible with Arduino R3/Mega2560 Development Board185
    $33.89

  4. waveshare 2inch LCD Display Module IPS Screen 240×320 Resolution with Embedded Controller Communicating via SPI Interface.107
    $19.99

  5. 1.8 inch LCD Display Module 128x160 SPI TFT High Color for 51, AVR, STM32, ARM56
    $12.77

  6. DIYmalls 2.8" inch ESP32 Display JC2432W328C Capacitive Touchscreen ESP-32 Screen TFT LCD Module ESP-32 Development Board ST7789 240x320 for Arduino IDE32
    $28.97

  7. DIYmalls 3.5" inch TFT LCD Display Screen ILI9486 Module 5V/3.3V 480x320 16-bit Parallel Interface w/Card Slot for Arduino 2560 Development Board, no Touch12
    $23.98

  8. Waveshare 1.5inch RGB OLED Display Module 128x128 Pixels 16-bit High Color SPI Interface Driver SSD1351 for Raspberry Pi205
    $24.99

  9. Waveshare 1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS Display Panel, 262K Colors, Compatible with Raspberry Pi,Compatible with Arduino/Raspberry Pi/PI zero/Esp3217
    $18.99
Next page

From the brand

Previous page
  2. DIYmalls NM-TV-154 Nerdminer V2 NM Smart TV BTC Solo Lottery Miner 1060 KH/s Yellow Case 1.5 inch...
    DIYmalls NerdMiner V2 NMMiner ESP32-2432S028R ESP32 Development Board 2.8 inch Display Module Res...
    DIYmalls NerdMiner V2 NMMiner BTC Miner ESP32-2432S028R ESP32 Development Board 2.8 inch Display ...
    DIYmalls 2.8" ESP32 Display ESP32-2432S028R Resistive Touchscreen 240x320 TFT LCD Module ESP-32 D...

    Nerd Miner

    Visit the store

  3. DIYmalls 0.96
    DIYmalls 0.96
    DIYmalls 1.3
    1.3

    OLED Display

    Visit the store

  4. DIYmalls 915 MHz ESP32 LoRa 32 V4 Development Board + 915MHz LoRa Antenna for Meshtastic IOT Lora...
    DIYmalls 915MHz ESP32 LoRa OLED Board V3 SX1262 Type-C + LoRa V3 Case + 915MHz Antenna for Arduin...
    DIYmalls 915MHz LoRa32 ESP32 OLED Board + 915 MHz Antenna + Case Enclosure for Meshtastic, Not Co...
    DIYmalls 915MHz LoRa 32 V4 ESP32 Development Board + 5dBi LoRa Antenna 915 MHz for Meshtastic Lor...

    LoRa with Display

    Visit the store

  5. DIYmalls 915MHz LoRa Antenna 2dBi U.FL to SMA Connector for Heltec 915 MHz Lora 32 V3 CubeCell HT...
    DIYmalls 915MHz LoRa Antenna 5dBi SMA Male 195mm + SMA Female Cable for Meshtastic ESP32 LoRa 32 ...
    DIYmalls 915MHz LoRa Antenna IPX 1.13 UFL 2dBi 8cm for ESP32 OLED LoRa Board 915 MHz LoRa32u4 II ...
    DIYmalls ESP32 OLED LoRa 32 V3 Case Enclosure Cover Type-C Port, not for Heltec LoRa32 V2 (Pack o...

    LoRa Parts

    Visit the store

  6. DIYmalls 1602 LCD Display Module 16x2 DC 5V White Character Blue Backlight AIP31066 Controller fo...
    DIYmalls 1.44
    DIYmalls 1.8
    DIYmalls 2.8

    TFT LCD Display

    Visit the store

  7. DIYmalls 2.4
    DIYmalls 2.8
    DIYmalls 3.5
    DIYmalls 3.5

    Plug-in Display for 2560

    Visit the store

  8. DIYmalls 1.28 inch ESP32 IPS Round Display ESP32-2424S012C-I Capacitive Touchscreen 240x240 TFT L...
    DIYmalls 2.8
    DIYmalls 3.5
    DIYmalls 4.3

    ESP32 with Display

    Visit the store

  9. DIYmalls 2.8
    DIYmalls NerdMiner V2 NMMiner ESP32-2432S028R ESP32 Development Board 2.8 inch Display Module Res...
    DIYmalls 3.5
    DIYmalls 3.5

    ESP32 Display with Case

    Visit the store

  10. DIYmalls Nextion 2.4 inch HMI Display Resistive Touch Screen 5V TFT LCD 320x240 for Arduino ESP32...
    DIYmalls Nextion Enhanced 3.2 inch HMI Display Resistive Touch Screen 5V TFT LCD 400x240 for Ardu...
    DIYmalls Nextion Intelligent 4.3 inch HMI Display Capacitive Touch Screen 5V TFT LCD 480x272 for ...
    DIYmalls Nextion Intelligent 5 inch HMI Display 5V Capacitive Touch Screen 800x480 TFT LCD w/Encl...

    Nextion Display

    Visit the store

  11. DIYmalls Feetech FS90R 360 Degree Continuous Rotation Micro RC Servo Motor 6V for Arduino Microbi...
    DIYmalls Feetech FS90R 360 Degree Continuous Rotation Micro RC Servo Motor + Tire Wheel for Ardui...
    DIYmalls Feetech FS90R Continuous Rotation Micro RC Servo 360 Motor Analog 6V for Arduino Microbi...
    DIYmalls 4 Cell 6V AA Battery Holder Case Cover Storage Box w/ 2P FUT J Plug Connector for Flysky...

    FS90R Servo Parts

    Visit the store

  12. DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w/Flash + GPS Passive Antenna for Arduino RC PFV ...
    DIYmalls G28U7FTTL GPS Receiver Module 3.3V-5V w/Flash Ceramic Antenna 9600bps 1Hz NMEA-0183 for ...
    DIYmalls BN-880 GPS Module w/Flash HMC5883 Compass + GPS Active Antenna for Arduino RC FPV Drone ...
    DIYmalls VK-162 G-Mouse USB GPS Dongle Receiver Antenna M8 Chip with Flash 9600bps 1Hz NEMA-0183 ...

    GPS Receiver

    Visit the store

  13. DIYmalls Alligator Clip to Dupont Cable Breadboard Jumper Wire 10pin 20cm Male Female for Arduino...
    DIYmalls 2 AAA Battery Holder with Switch for Microbit Battery Pack 3V 2 Cell with ON/Off Case Co...
    DIYmalls 4pcs Load Cell 50kg Weight Sensor Half Bridge Strain Gauge Human Body Digital Scale+ 1pc...
    DIYmalls 4x4 Keypad 16 Key Matrix Array Membrane Switch 8pin Keyboard for Arduino (Pack of 5)

    Accessories

    Visit the store

Next page

Product information

Technical Details

Manufacturer ‎DIYmalls
Place of Business ‎DIYmalls
Part number ‎DM0736A
Item Weight ‎91 g
Parcel Dimensions ‎12.19 x 8.13 x 3.3 cm; 91 g
Manufacturer reference ‎DM0736A
Style ‎Pack of 1
Item Package Quantity ‎1
Included components ‎1pcs 1.8 inch lcd module
Batteries Included? ‎No
Batteries Required? ‎No

Additional Information

ASIN B0BFDQDGSQ
Customer Reviews
3.8 out of 5 stars (26)

3.8 out of 5 stars
鶹 Rank
Date First Available Sept. 15 2022

Feedback

DIYmalls 1.8" inch TFT LCD Display Screen Module 4-Wire SPI Interface ST7735S 128x160 w/SD Card Slot for Arduino 2560 Development Board

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product details

  • Parcel Dimensions ‏ : ‎ 12.19 x 8.13 x 3.3 cm; 91 g
  • Date First Available ‏ : ‎ Sept. 15 2022
  • Manufacturer ‏ : ‎ DIYmalls
  • Place of Business ‏ : ‎ DIYmalls
  • ASIN ‏ : ‎ B0BFDQDGSQ
  • Manufacturer reference ‏ : ‎ DM0736A
  • Country of origin ‏ : ‎ China
  • 鶹 Rank: #57,088 in Electronics (See Top 100 in Electronics)
  • Customer Reviews:
    3.8 out of 5 stars (26)

Product Description

1.8 tft st7735s
1.8 lcd st7735s
1.8 display st7735s
1.8 screen st7735s
1.8 module st7735s
1602 LCD
1.44 TFT LCD
1.8 TFT LCD
2.4 TFT LCD
2.8 TFT LCD
3.5 TFT LCD
Buying Options
Customer Reviews
4.5 out of 5 stars 39
4.3 out of 5 stars 44
3.8 out of 5 stars 26
3.9 out of 5 stars 18
3.9 out of 5 stars 11
4.1 out of 5 stars 28
Size 16x2 1.44 inch 1.8 inch 2.4 inch 2.8 inch 3.5 inch
Resolution / 128x128 128x160 320x240 320x240 480x320
Touch Type No Touch No Touch No Touch Resistive Touch Resistive Touch Resistive Touch
Voltage 5V 3.3V 5V/3.3V 5V/3.3V 5V/3.3V 5V/3.3V
IC AIP31066 ST7735S ST7735S ILI9341 ILI9341 ILI9486
1.28" ESP32 Touchscreen
2.4" ESP32 Touchscreen
2.8" ESP32 Touchscreen
3.2" ESP32 Touchscreen
3.5" ESP32 Touchscreen
4.3" ESP32 Touchscreen
Buying Options
Buying Options
Customer Reviews
4.0 out of 5 stars 18
4.0 out of 5 stars 34
4.6 out of 5 stars 189
3.3 out of 5 stars 16
3.8 out of 5 stars 75
2.6 out of 5 stars 10
Size 1.28 inch 2.4 inch 2.8 inch 3.2 inch 3.5 inch 4.3 inch
Resolution 240x240 240x320 240x320 240x320 320x480 800x480
Touch Type Capacitive Touch Capacitive Touch Resistive Touch Capacitive Touch Capacitive Touch Capacitive Touch
Voltage 5V 5V 5V 5V 5V 5V
IC GC9A01 ILI9341 ILI9341 ST7789 ST7796 ILI9485
