KEYESTUDIO MEGA 2560 R3 ATmega2560 Board + USB Cable Kit for Arduino MCU Projects

Visit the KEYESTUDIO Store

(491)

�鶹��'s Choice

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Brand	KEYESTUDIO
Model name	Mega 2560 R3
RAM memory installed size	256 KB
Memory storage capacity	256 KB
CPU model	MediaTek MT8125
CPU speed	16 MHz
Connectivity technology	Bluetooth, USB
Included components	1 x KEYESTUDIO Mega R3 Board, 1 x USB Cable
Operating system	Linux
CPU manufacturer	Microchip Technology

About this item

PERFECTLY COMPATIBLE with IDE Platform: a nice upgrade to the Uno which will allow more complex programs and projects to be done
RIGHT OUT OF THE Box: uses the official ATmega16u2 IC, instead of CH340G, no driver problem
EXCELLENT QUALITY: solder is very clean, everything is aligned nicely, all boards are well packed after function,voltage, current testing, protected in a beautiful box
FCC and CE CERTIFICATION: this board made from environmentally friendly components and materials, as well as environmentally friendly production technology, it is really safe
We also have a one-stop store that provides various of open source hardware for raspberry pi and micro bit, you can access this page at /keyestudio

› See more product details

Report an issue with this product

This item: KEYESTUDIO MEGA 2560 R3 ATmega2560 Board + USB Cable Kit for Arduino MCU Projects

$28.99

Get it by Monday, Dec 15

In Stock

Sold by keyes and ships from �鶹�� Fulfillment.

KEYESTUDIO Mega Sensor Shield V1 for Arduino Mega R3 Board 2560

$34.99

Get it by Friday, Dec 19

Only 5 left in stock.

Sold by LASTPOINT LLC and ships from �鶹�� Fulfillment.

Total price:��$00

To see our price, add these items to your cart.

Try again!

Details

Added to Cart

One of these items ships sooner than the other.

Show details Hide details

Choose items to buy together.

Product information

Technical Details

Summary

Processor	‎16 MHz MediaTek_MT8125
RAM	‎SRAM
Wireless Standard	‎Bluetooth
Brand	‎KEYESTUDIO
Series	‎Mega 2560 R3
Item model number	‎LYSB016JWNYBE-ELECTRNCS
Hardware Platform	‎Arduino
Operating System	‎Linux
Product Dimensions	‎11.18 x 3.3 x 6.86 cm; 82 g
Item dimensions L x W x H	‎11.2 x 3.3 x 6.9 Centimetres
Colour	‎Mega 2560 R3
Processor Brand	‎Microchip Technology
Number of Processors	‎1

Additional Information

ASIN	B016JWNYBE
Customer Reviews	(491) 4.4 out of 5 stars
�鶹�� Rank	#71,719 in Electronics (See Top 100 in Electronics) #149 in Internal USB Port Cards
Date First Available	Sept. 29 2016
Manufacturer	keyes
Place of Business	shenzhen, guangdong 518109,CN

Warranty & Support

�鶹��.ca Returns Policies:Electronics purchased from �鶹��.ca, or a seller but fulfilled by �鶹��, can be returned to �鶹��.ca within 30 days of delivery of shipment via our online Returns Centre. These items must be in new condition with original packaging and accessories. New, used and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor.

Feedback

Would you like to tell us about a lower price?

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

Product Description

Located in Shenzhen, KEYES DIY ROBOT co.,LTD is a thriving technology company dedicated to open-source hardware research and development, production and marketing. We keep striving our best to offer you excellent products and quality service as to meet your expectation.

KEYESTUDIO Mega 2560 R3 Board for Arduino

Keyestudio Mega 2560 R3 is a microcontroller board based on the ATMEGA2560-16AU, fully compatible with ARDUINO MEGA 2560 REV3.

It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, 2 ICSP headers, and a reset button.

It features the Atmega16U2 programmed as a USB-to-serial converter.

It contains everything needed to support the microcontroller. With its bootloader, program can be downloaded directly with USB and you don’t need to use other external programmer.

The Mega 2560 board is compatible with most shields designed for the U&O R3 board.

Design of Power Supply: There are two choices (direct power supply trough USB or external power supply) for the power supply system of Mega, and they can be Automatic switched. External power supply can be AC-to-DC adapter or battery.

Specifications:

Microcontroller: ATmega2560
OperatingVoltage: 5V
Input Voltage (recommended): 7-12V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins:16
DC Current per I/O Pin: 20 mA ; DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB ; EEPROM: 4 KB ; Clock Speed:16 MHz

Details Display:

USB Port+DC Jack

Just simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

ATMEGA 16U2-MU Chip

USB to serial chip, can convert the USB signal into serial port signal.

Microcontroller

Each board has its own microcontroller. You can regard it as the brain of your board. Microcontrollers are usually from ATMEL.

Board Model

keyestudio MEGA 2560 R3 is based on Open-source Electronics Prototyping Platform. The product has obtained CE certification and can be used with confidence.

The MEGA 2560 is designed for more complex robotics projects. This gives your projects plenty of room and opportunities.

Reading Joystick's Value

You can combine the keyestudio mega 2560 board and other sensor modules like LCD, joystick to build your own projects.

Note that the display accessories are only for reference, Not included in shipping!

Ultrasonic Ranging

Use the keyestudio mega 2560 board and other sensor modules like LCD, ultrasonic sensor to show the measured distance of obstacles.

Note that the display accessories are only for reference, Not included in shipping!

Displaying Temp. Value

Use the keyestudio mega 2560 board and other sensor modules like 4-digit LED display, temperature sensor to show the ambient temperature value.

Note that the display accessories are only for reference, Not included in shipping!

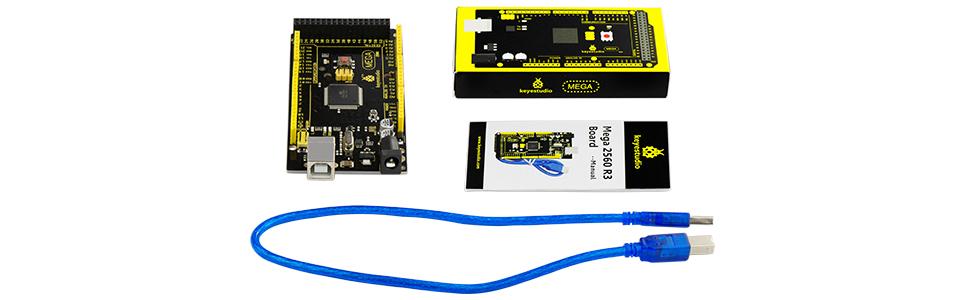

Packaging Includes:

1 x KEYESTUDIO Mega 2560 R3 Board
1 x 50CM USB Cable
Extra: comes with a well-designed brochure with illustrations, which shows you how to play with the Mega 2560 using Arduino programming environment step by step.
