  • VIDEO

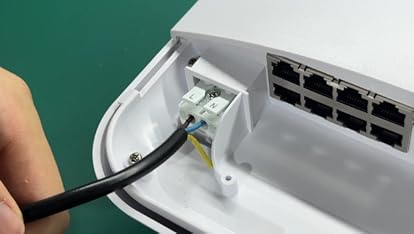

Unboxing Video for 4 Ports Mini Solar PoE SwitchLINOVISION
  • LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Wireless Bridge
  • To view this video, download

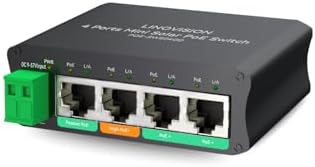

LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Wireless Bridge

3.0 out of 5 stars 2 ratings
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

  • DC 9～57V Input: Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.
  • 4 Ports Full Gigabit PoE: 2x IEEE802.3af/at PoE, 1x 45W High PoE and 1x Passive 24V PoE output (Any PoE port can be used as an Uplink Port)
  • 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.
  • PASSIVE 24V PoE Output: For Wireless AP, Wireless Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed.
  • TOTAL PoE BUDGET: 100W (DC24V/48V input) or 50W (DC12V input) or 40W(DC9V input).
  • COMPACT DESIGN: Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02''(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
  • APPLICATIONS: Ideal for Solar System, RV System, Farm Security or remote surveillance applications.
› See more product details

Product details

  • Product Dimensions ‏ : ‎ 25 x 20 x 4 cm; 181.44 g
  • Date First Available ‏ : ‎ July 8 2025
  • Manufacturer ‏ : ‎ LINOVISION
  • Place of Business ‏ : ‎ LINOVISION
  • ASIN ‏ : ‎ B0FFS9VX6S
  • Item model number ‏ : ‎ POE-SW504GD
  • Country of origin ‏ : ‎ China
  • 鶹 Rank: #31,759 in Electronics (See Top 100 in Electronics)
  • Customer Reviews:
    3.0 out of 5 stars 2 ratings

Frequently bought together

This item: LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Wireless Bridge
$119.99
Get it by Saturday, Nov 15
In Stock
Sold by LINOVISION and ships from 鶹 Fulfillment.
+
LINOVISION Industrial 5 Ports Gigabit Solar POE Switch with DC9V-54V to DC48V Voltage Booster,4 x IEEE802.3af/at 30W POE Port
$129.99
Get it by Saturday, Nov 15
In Stock
Sold by LINOVISION and ships from 鶹 Fulfillment.
+
LINOVISION Solar PoE Switch with Built-in Solar Charge Controller, Battery Management and External DC Charging, Non-Stop UPS
$269.99
Get it by Monday, Nov 17
Only 7 left in stock.
Sold by LINOVISION and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
Some of these items ship sooner than the others.
Show details Hide details
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Previous page

  1. LINOVISION Industrial 4 Ports MPPT Solar PoE Switch for Security Cameras and IoT Devices, Support Remote Battery Monitoring, Total PoE Budget 120W3
    $269.99

  2. LINOVISION Industrial 4 Ports Gigabit Solar PoE Switch with DC9～57V Redundant Power Input, 12V PoE Switch with SFP Uplink, IEEE802.3af/at, Compact PoE Power for Solar Power/RV Truck/VoIP Systems
    $139.99

  3. 【Upgraded】 LINOVISION Industrial Gigabit 30W PoE Splitter with Switchable DC12V/24V Output and Passive PoE Output for Wireless Bridges, Designed for Cameras and IoT Systems62
    $69.99

  4. LINOVISION Industrial 8-Port Full Gigabit Unmanaged POE Switch with 2 SFP Uplinks, 4 BT 90W PoE Ports, POE Watchdog, Redundant Power, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor87
    $139.99

  5. LINOVISION Outdoor 8 Ports Full Gigabit L2 Cloud Managed PoE Switch with 2 SFP Uplinks, Total 150W Power Budget2
    $259.99

  6. Industrial 4-Port 10/100/1000Mbps Gigabit PoE Switch with SFP Slot, 5-Port IEEE 802.3at PoE Ethernet Switch Supporting Din-Rail, 10 Gbps Switching Capacity, 12~48V DC Input and Voltage Booster3
    $125.37

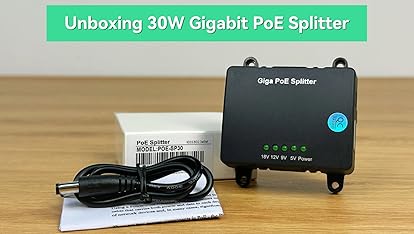

  7. LINOVISION 30W Gigabit PoE Splitter to DC 5/9/12/18V Output, Wide Voltage Input, IEEE802.3af/at POE to DC Power Supply for Security Cameras, Access Control Systems10
    $49.99

  8. LINOVISION Gigabit 90W 802.3bt PoE Injector, Compatible with Standard and Legacy Non-Standard PD Device, PoE++ Injector for High Power Consumption PTZ Camera, VoIP Phone37
    $74.99

  9. LINOVISION Industrial 2 Ports Gigabit PoE Extender, Passthrough and Split 30W POE to Two PoE Cameras or Wireless APs, PoE Repeater or Booster to Extends Extra 100m16
    $49.99

  10. TP-Link 5 Port Gigabit PoE Switch, 4 PoE Ports @65W, Desktop, Plug-and-Play, Sturdy Metal with Shielded Ports, Fanless, Limited Lifetime Protection, Traffic Optimization, Unmanaged (TL-SG1005P) Black70,850
    $49.99
Next page

Brand in this category on 鶹

Sponsored

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

504GD banner video

Merchant video

Interface

Interface
Input
Hi POE
MINI

LINOVISION Solar PoE Switch for your choice！

Mini Solar PoE Switch

DC9V-54V POE Switch

DC 9V~57V PoE Switch

8~57V L2+Cloud PoE Switch

UPS Solar PoE Switch

MPPT Solar PoE Switch

Customer Reviews
3.0 out of 5 stars 2
4.5 out of 5 stars 111
—
4.7 out of 5 stars 4
3.6 out of 5 stars 3
3.9 out of 5 stars 3
Model
POE-SW504GD POE-Switch0504GD POE-Switch0504GDF POE-SWR612GM-SOLAR POE-SW805G5U-Solar POE-SW804G-Solar
Input
DC 9V~57V DC 9V~54V DC 9V~57V DC 8V~57V Solar&Batt 12/24V, Ext DC12V Solar Power& Battery(12V/24V)
Output
IEEE802.3af/at, Passive PoE 44~57V PoE Standard 44~57V PoE Standard 44~57V PoE Standard IEEE802.3af/at/bt, Passive PoE IEEE802.3af/at
Uplink Ports
Any PoE port can be Uplink 1 Gigabit Uplink 1 Gigabit SFP 2 Gigabit SFP+ 2 Gigabit RJ45 1 * 1.25G SFP 1 * Gigabit Ethernet Uplink
POE Ports
2 * Gigabit PoE Ports 4 Gigabit PoE Ports 4 Gigabit PoE Ports 8 Gigabit PoE Ports 5 * Gigabit PoE Ports 4 * Gigabit PoE Ports
POE++ Ports
1 * 45W High PoE+ Port / / / 1 * BT 60W Port (Port 1) /
Passive 24V PoE
1 * Passive 24V PoE / / / P4-5 Switch to 24V Passive PoE /
POE budget
100W@DC24V/48V, 50W@DC12V 120W (DC24V/48V), 60W (DC12V) 120W (DC24V/48V), 60W (DC12V) 240W@48V, 180W@24V, 70W@12V 65W 120W@24V, 60W@DC12V
Solar Charge Controller
/ / / / Built-in PWM Controller /
L2/L3 Management
/ / / L2+ / /
Remote Cloud Management
/ / / PoE Port Remote Cloud Control / /
Installation Method
DIN-Rail DIN-Rail/Wall-Mount DIN-Rail/Wall-Mount DIN-Rail/Wall-Mount Wall-Mount DIN-Rail

Brands in this category on 鶹

Sponsored

Product Summary: LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Wireless Bridge

From LINOVISION

3.0 out of 5 stars, 2 ratings

Customer reviews

100+ viewed in past month

Price

No featured offers available

Other sellers

Other sellers

About this Item

  • DC 9～57V Input: Featuring built-in voltage booster, works directly with DC 12V or DC 24V solar battery systems, and outputs standard 48V PoE for regular PoE cameras.
  • 4 Ports Full Gigabit PoE: 2x IEEE802.3af/at PoE, 1x 45W High PoE and 1x Passive 24V PoE output (Any PoE port can be used as an Uplink Port)
  • 45W HIGH PoE+ OUTPUT: Optimized for big PTZ cameras, such as multiple-lens PTZ cameras, high speed dome cameras, cameras with big white LED light.
  • PASSIVE 24V PoE Output: For Wireless AP, Wireless Bridges, or other terminals that accept Passive 24V PoE. No extra PoE injector needed.
  • TOTAL PoE BUDGET: 100W (DC24V/48V input) or 50W (DC12V input) or 40W(DC9V input).
  • COMPACT DESIGN: Full metal design, Din Rail Mount, compact dimension 3.27 x 2.48 x 1.02''(83x63x25.8mm), perfect for tight spaces like electrical cabinets, solar control boxes, or outdoor enclosures.
  • APPLICATIONS: Ideal for Solar System, RV System, Farm Security or remote surveillance applications.

Product description

LINOVISION 4 Ports Mini Solar PoE Switch Works Directly with DC12V or DC24V Batteries, Provide 2 PoE+ Ports, 1 High PoE+ Port for Big PTZ Cameras and 1 Passive 24V PoE Port for Wireless Bridge
