Wall Switch Remote Overview

• This wall remote control system is designed for use with a millivolt or 24V gas valve system

• Remote have Dip Switches to set your own security code

• Easy Operate Manual on/off

• Battery Powered Transmitter and Receiver (batteries not included)

INSTALLATION

1. Remove the faceplate from the base by inserting a small screwdriver into the small slot on the side of the faceplate (either side) then popping it off, and Install two “AAA” batteries

2. After the batteries are installed, place and install the faceplate on the base. The LED signal light should illuminate when either the ON or OFF button is pressed. If the signal light does not illuminate, check the position of the transmitter’s battery, and if the battery is powerful

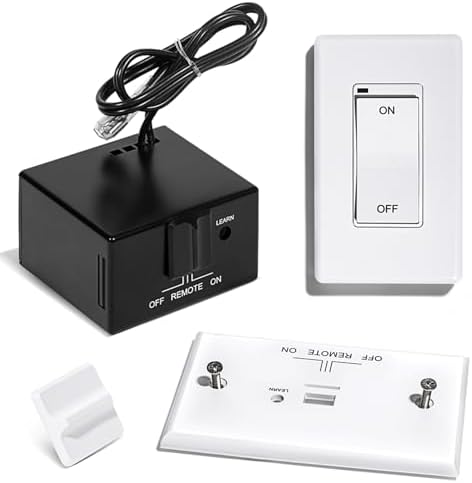

Receiver Overview

• Receiver connects to any standard millivolt gas valve system

• Easy access to the receiver's battery compartment uses a sliding battery cover

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve, install the batteries .

• The Receiver Have a Learn Button

• Receiver requires 4 "AA" batteries (not included)

• The remote receiver has a 3-position slide switch for selecting the mode of operation ON/REMOTE/OFF

• ON : will manually turn ON the appliance.

• REMOTE: will allow use of wall transmitter. If the system does not respond to the transmitter on initial use, check the battery positions in the remote. If that does not work, see the LEARNING TRANSMITTER TO RECEIVER section.

• OFF: will manually turn OFF the appliance.

• It is recommended that the slide switch be placed in the OFF position if you will be away from your home for an extended period of time.

Learning Wall Transmitter Into The Receiver

Manufactory have done the default (DIP) Switches setting learning, User can skip learning if not change the (DIP) Switches setting Security Codes) but if dip switches from the wall switch had been changed then Learning is mandatory to control the wall remote into the receiver

1- Put the receiver slide switch to “REMOTE” location. Using a small screwdriver or paper clip press and hold the ‘LEARN ‘button on the receiver until hearing a 3 “beep” sounds

2-After the receiver emits 3 “beep” sounds. Press the wall transmitter “ON “or “OFF” button and release at once. The receiver will emit several beeps indicating that the wall transmitter’s code has been accepted into the receiver.

Note: If matching failed from the the first attempt please repeat step 1-2

Important Information

• Do not use this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current.

• The remote receiver should be kept away from temperatures exceeding 130º F

• Always check the appliance home owner’s manual for additional information, or warnings regarding accessory installation before connecting this remote control system

• Do not short (or jumper) across the gas valve terminals to test the remote control installation.
