| Brand | GLOTRENDS |
|---|---|
| Manufacturer | glotrends |
| Model | PA40 |
| Part Number | PA40 |
| OS | Linux, Windows, Mac OS (Not support Windows 7) |
| Hardware interface | PCI Express x8 |
| Compatible Devices | PC/Mac Pro |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Does it contain liquid? | No |
| Manufacturer | glotrends |
| Item model number | PA40 |
| Parcel Dimensions | 22.8 x 15.2 x 2.9 cm; 200 g |
| ASIN | B0CCNL7YD8 |
Frequently bought together
This item: GLOTRENDS PA40 Quad M.2 NVMe to PCIe 3.0 X8 Adapter with PCIe Bifurcation Function, Support 22110/2280/2260/2242/2230 Size, Support Soft RAID
$244.00
Get it by Monday, Sep 8
In Stock
+
$9.99
Get it by Sunday, Sep 7
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Product information
Additional Information
| Date First Available | Aug. 2 2023 |
|---|---|
| Customer Reviews |
3.6 out of 5 stars |
| 鶹 Rank |
|
Feedback
Videos for similar products
From the brand
-
GLOTRENDS specializes in developing high-performance PCIe adapters and riser cables for computer engineers and DIY enthusiasts.
The products mainly include 2 series: PCIe adapters (M.2 SSD Adapter, SATA Card, WiFi/Ethernet Card, USB Card, etc) and PCIe 5.0/4.0/3.0 extension cables.
The goal of GLOTRENDS is to provide quality-assured and cost-effective products to customers worldwide. Customized production is welcome.
-
PA40
- M.2 SSD PCIe Adapter
- 4 x M.2 NVMe SSD
- Support PCIe Bifurcation
-
2/4-port M.2 PCIe Adapter
-
M.2 PCIe Adpater
-
M.2 Heatsink
- Aluminum Heatsink for 2280 M.2 SSD
- Fit for PC/PS5/PS5 Slim
-
M.2 Heatsink for PC/PS 5
-
SA3824A
- 24-port SATA Card (Non-Raid)
- PCIe 3.0 X8 Bandwidth
- ~277MB/s per port
-
SATA Card
-
LE8445
- 4-port 2.5GB NIC
- PCIe 2.0 X4=20Gbps Upstream
- 2.5GB/s Full Speed
-
NIC Card
-
Wi-Fi 5/6E/7 Card
-
U6A2C
- 8-port USB 3.0 Expansion Card
- 2 x USB-C + 6 x USB-A
-
USB Card
-
PCIe Riser Cable
- PCIe 3.0/4.0 Riser Cable
- Up to 1000mm lenth
- PCIe X1/X4 Riser Cable
-
PCIe 3.0 X16 Riser Cable
-
PCIe 4.0 X16 Riser Cable
-
PCIe 3.0 X1/X4 Riser Cable
Product Description
Quad M.2 NVMe SSD Host Adapter with PCIe Bifurcation Function
- Add 4 x M.2 NVMe SSD (M-Key) onto a single PCIe X8 host adapter, so you can access 4 x M.2 NVMe SSD at the same time
- Support soft RAID in Windows/Linux/3rd party software
- Support M.2 NVMe SSD RAID-on-CPU (VROC) in the Intel Platform, but you need to purchase an Intel VROC license by yourself
- Support M.2 NVMe RAID in AMD Platform
- Support Mac Pro 5.1
- PCIe 3.0 X8 bandwidth
- For PCIe 4.0 SSD, it will downgrade to PCIe 3.0 mode
- Support PCIe bifurcation function
- Support 2230/2242/2260/2280/22110 form factor

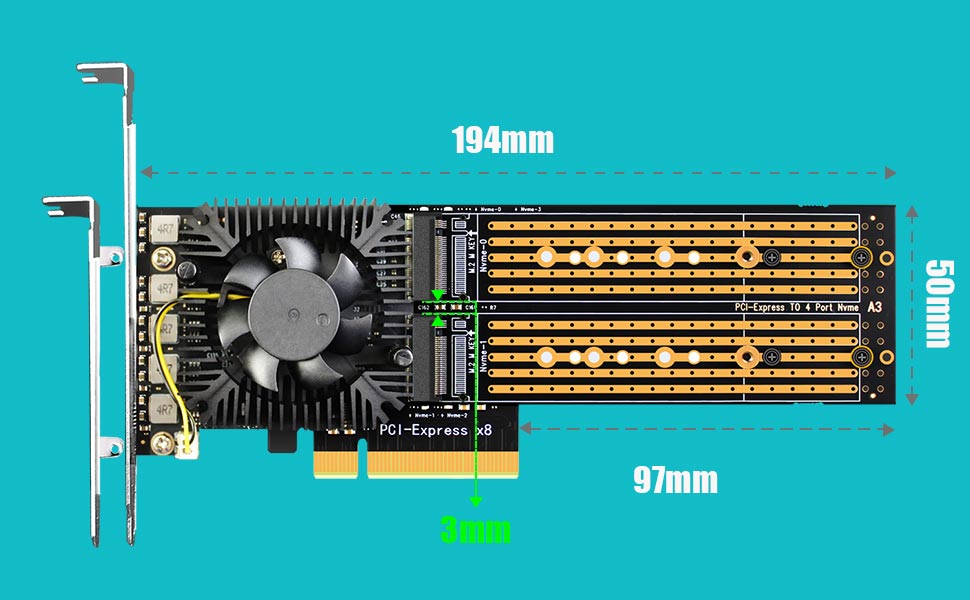

- The gap between the two NVMe slots is 3mm
- Regular profile bracket and low profile bracket

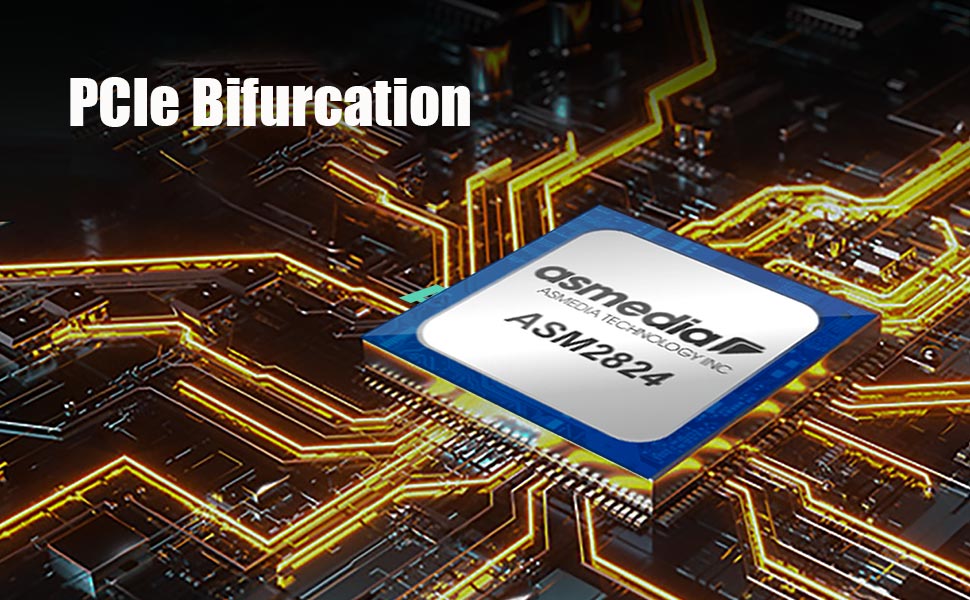

PCIe Bifurcation (PCIe Splitter)
- With ASM2824 PCIe Bifurcation function, PA40 can work with none PCIe Bifurcation motherboard;
- The disadvantage is that PA40 cannot support PCIe 4.0 and only support PCIe 3.0/2.0 features;
- The max bandwidth is PCIe 3.0 X8, which means 4 x M.2 NVMe SSD shares PCIe 3.0 X8 bandwidth.
Soft RAID in Window 10
- When you find 2 or more separate M.2 NVMe SSD in Disk Management of Windows 10
- Right-click the disk volume, which you want to set up soft RAID
- A pop-up window appears, click the option (Spanned/Striped/Mirrored)
- Noted: You can set up soft RAID in Linux/Mac/3rd party software also.

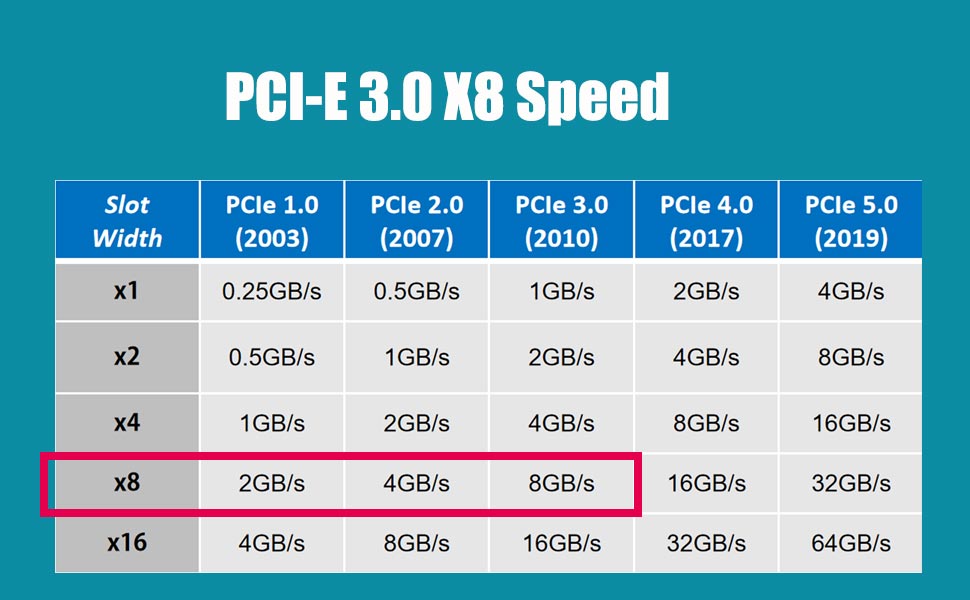

PCIE 3.0 X8 Full Speed
- Compatible with PCIe 3.0/2.0 motherboards, and install into PCI-Express X8 lane.
- To reach PCIe 3.0 speed, make sure your CPU and motherboard, and PCIe SSDs are all PCIe 3.0 enabled.
M.2 SSDs Installation
- M.2 SSD head tilted at 30 degree angle, inserted into Key M interface
- The brass standoff snaps into the semi-circular position at the end of the M.2 SSD
- Secure the brass standoff from the back with screw
Packaging includes
- PA40
- 2 x M.2 Screw and Copper Stand
- 8cm Low-profile bracket
- Screws for bracket mounting to PC
- Screwdriver
