Acymner Oil Pressure Tester Kit, 0-140 PSI Engine CylinderZEHONG
  • Acymner Oil Pressure Tester Kit | 0-140 PSI Engine Cylinder Oil Pressure Diagnostic Tester Tool Set with Hose Adapters for Cars ATVs Trucks Use
  • To view this video, download

Acymner Oil Pressure Tester Kit | 0-140 PSI Engine Cylinder Oil Pressure Diagnostic Tester Tool Set with Hose Adapters for Cars ATVs Trucks Use

4.5 out of 5 stars 59 ratings
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Brand Acymner
Material Copper, Rubber, ABS Plastic, Iron, and Aluminum
Item dimensions L x W x H 32.8 x 25.7 x 5.8 Centimetres
Item weight 2.54 Pounds
Manufacturer Acymner

About this item

  • Professional and Accurate Kit: The engine oil pressure tester kit is used to diagnose and test the engine oil pressure value, to check whether it is normal. The measured value can be used to judge the operation of fuel system components such as electric gasoline pump and oil pressure regulator. And with this best in class oil pressure test tools, you can get a definite pressure value well without relying on the dashboard light.
  • Build to Last: The material of the engine oil pressure tester kit consists of Copper, Rubber, ABS Plastic, Iron, and Aluminum; And the gauge is equipped with a shockproof cover, which is under great protect and convenient maneuverability.
  • Specification: The oil pressure gauge use 3" big dial with clear dual scale range 0 to 140 PSI and 0 to 10 Bar. Compare to a large range, this oil pressure gauge is easy to read about 1-2 Bar with a short range. There are a straight quick coupler and a elbow one in the case, you can choose it according to the location of the engine oil pressure test port.
  • Wide Applications: This oil pressure gauge tool contains a wide assortment of durable adapters designed to fit mot import/domestic engines. The 10 adapters are marked with number, you can choose the right one very easy. 4FT long hose is made of rubber nylon resin, working pressure 300 PSI. This is a great kit for DIY auto tools, to test engine oil pressure value quickly and accurately.

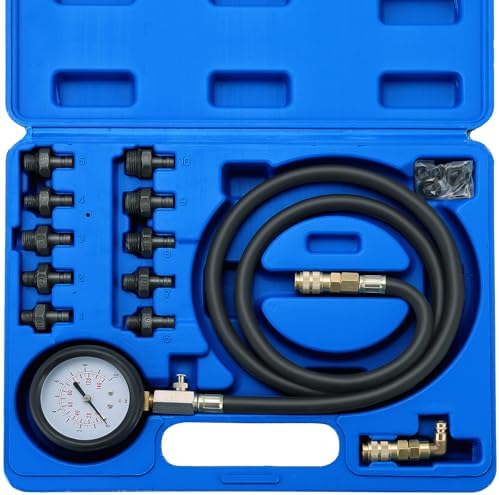

  • Packge Included: 1x Pressure gauge with hose and straight quick coupler; 1x 90 degree elbow quick coupler; 1x R 1/8 DIN 2999 adapter ; 1x 1/8"x27NPT adapter; 1x 1/4"x18NPT adapter; 1x 3/8"x20UNF adapter ; 1x 1/2"x20UNF adapter ; 1x M10 adapter; 1x M12 adapter ; 1x M14 adapter ; 1x M16 adapter ; 1x M18 adapter
› See more product details

Product details

  • Product Dimensions ‏ : ‎ 32.77 x 25.65 x 5.84 cm; 1.15 kg
  • Date First Available ‏ : ‎ Dec 3 2022
  • Manufacturer ‏ : ‎ Acymner
  • ASIN ‏ : ‎ B0BHQKQMG8
  • Item model number ‏ : ‎ ZH109-1
  • 鶹 Rank: #20,512 in Automotive (See Top 100 in Automotive)
  • Customer Reviews:
    4.5 out of 5 stars 59 ratings

Frequently bought together

Acymner Oil Pressure Tester Kit | 0-140 PSI Engine Cylinder Oil Pressure Diagnostic Tester Tool Set with Hose Adapters for Ca
This item: Acymner Oil Pressure Tester Kit | 0-140 PSI Engine Cylinder Oil Pressure Diagnostic Tester Tool Set with Hose Adapters for Cars ATVs Trucks Use
$33.99
Get it by Monday, Jul 28
In Stock
Sold by ZEHONG and ships from 鶹 Fulfillment.
+
0-140PSI Fuel Injector Injection Pump Pressure Tester, Fuel Pressure Tester Kit, Universal Fuel Pump Pressure Tester Gasoline
$39.56
Get it by Saturday, Jul 26
In Stock
Sold by CH-TOOL and ships from 鶹 Fulfillment.
+
DAYUAN Professional Petrol Engine Compression Tester Kit Set for Automotives and Motorcycles
$26.95
Get it by Saturday, Jul 26
In Stock
Sold by Hippoproducts and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.

Customers who viewed this item also viewed

Page 1 of 1 Start again
Previous set of slides
Next set of slides

From the brand

Previous page

  2. As a professional auto repair brand store, Acymner is committed to providing customers with high-quality auto parts products and services. From car maintenance to auto parts repair, we are all excellent!

    Whether you are an amateur mechanic or a professional ,we do our best to provide you with the best possible service.It is our goal to let every customer buy favorite products in Acymner.

    You can fully enjoy the shopping experience from Acymner!

  3. Acymner 1/2" Drive Deep Spindle Axle Nut Impact Socket | 9PCS Metric Axle Nut Socket Set 29mm-38m...
    Acymner Oil Pressure Tester Kit | 0-140 PSI Engine Cylinder Oil Pressure Diagnostic Tester Tool S...
    Acymner 10pcs Bearing Race and Seal Bushing Driver Install Set | Aluminum Bearing Race Installer,...
    Acymner Vacuum and Fuel Pump Tester Gauge Kit | Gauge Leak Carburetor Pressure Diagnostics Tool Kit

    Acymner Professional Tools

    Visit the store

Next page

Product Description

Oil Pressure Tester Kit

This oil pressure tester gauge kit can test engine oil pressure value to aid to diagnose if the oil pressure gauge on instrument board and oil pressure sensor are damaged.

Specifications

Material Steel, aluminium, brass, rubber, plastic
Dial diameter 3"
Gauge scale range 0 to 140 PSI, 0 to 10 Bar
Hose MAX. working pressure 300 PSI
Hose total length 4FT

Details of Engine Oil Pressure Tester Kit

engine oil pressure tester

Oil Pressure Gauge

The pressure gauge uses metal gauge head with shockproof rubber cover,anti-fall, anti-shock, anti-scratch. The precision gauge provides reading in US and metric units to work with foreign and domestic vehicles in this oil pressure gauge tool.

oil pressure gauge

Steel Adapters

Adapters 1: R 1/8" 2999; Adapter 2: 1/8" x 27 NPT; Adapter 3: 1/4" x 18 NPT; Adapter 4: 3/8" x 20 UNF; Adapter 5: 1/2" x 20 UNF; Adapter 6: M10 x 1; Adapter 7: M12 x 1.5; Adapter 8: M14 x 1.5; Adapter 9: M16 x 1.5; Adapter 10: M18 x 1.5.

oil pressure tester gauge

Brass Connectors & Hose

  • Brass connector for faster and easier installation,and high hardness, rustless, durable and good air sealing.
  • The hose is made of nylon resin material, which is oil resistant and high temperature resistant.

Engine Oil Pressure Tester

Functions

  • The engine oil pressure tester kit is used to diagnose and test the engine oil pressure value, to check whether it is normal.
  • The measured value can be used to judge the operation of fuel system components such as electric gasoline pump and oil pressure regulator.

How to Use

  1. Choose the appropriate adapter to connect tester hose adapter.
  2. Screw the engine oil pressure sensor out and screw the engine oil pressure tester in.
  3. Start the engine and read oil pressure value on the gauge.
  4. According to manufacturer's recommendations, verify if vehicle oil pressure is normal.

Wide Compatibility

Fuel Pump Tester Gauge

The engine cylinder oil pressure diagnostic tester tool set comes with abundant adapters for applicable to most vehicles of makes and models, as long as the adapters can match with your engine and oil pressure does not exceed 140 PSI.

More Choices for Pressure Testers

Oil Pressure Tester Kit

Pressure Gauge Tester

Pump Tester Gauge

Buying Options

Radiator Pressure Tester

Customer Reviews
4.5 out of 5 stars 59
4.4 out of 5 stars 41
4.4 out of 5 stars 102
4.3 out of 5 stars 72
Brand
Acymner Acymner Acymner Acymner
Quantity
12 PCS 8 PCS 9 PCS 18 PCS
Gauge Range
0 - 140 PSI 0 - 300 PSI 0 - I0 PSI 0 - 35 PSI
Gauge Range
0 - 10 Bar 0 - 20 Bar 0 - 0.7 Bar 0 - 2.5 Bar
Storage Case Included
✔ ✔ ✔ ✔
