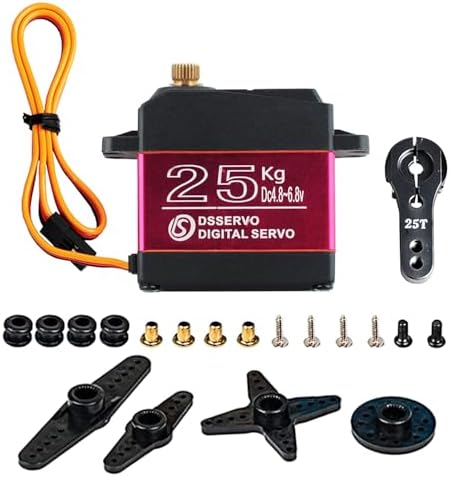

Stemedu DS3225 25KG High Torque RC Servo, Control Angle 180 Degree, Standard Single Axis Waterproof Metal Gear Digital Servo for 1/8 1/10 Baja RC Cars, Servos & Parts

To see product details, add this item to your cart. You can always remove it later.

The enhancements that you chose aren't available for this seller. Details

${cardName} not available for the seller that you chose

${cardName} unavailable for quantities greater than ${maxQuantity}.

Ships from

�鶹��

Sold by

Stemedu

Returns

Eligible for Return, Refund or Replacement within 45 days of receipt

Payment

Secure transaction

Support

Product support included

Add gift options

Add to Wish List

Added to

Unable to add item to Wish List. Please try again.

Other sellers on �鶹��

New (2) from $24.98 FREE Delivery on your first order.

Image Unavailable
Image not available for
Colour:

DS3225 25KG High Torque RC Servo, Control Angle 180 Degree, Standard Single Axis Waterproof Metal Gear Digital Servo for 1/8 1/10 Baja RC Cars

Visit the Stemedu Store

(31)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

🚩 Operating Voltage: 4.8 to 6.8 DC Volts
🚩 DS3225 25KG Large Torque Digital Servo - Stall Torque (5V): 24.5 kg/cm (291.5oz/in), Stall Torque (6.8V): 28 kg/cm (340.1 oz/in)
🚩 Digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance
🚩 Equipped with strong copper & aluminum gears, CNC aluminium middle Shell, made of first-grade material
🚩 Standard servo size:40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) , suitable for 1/8 1/10 scale RC cars

› See more product details

Report an issue with this product

This item: Stemedu DS3225 25KG High Torque RC Servo, Control Angle 180 Degree, Standard Single Axis Waterproof Metal Gear Digital Servo for 1/8 1/10 Baja RC Cars

$24.98

Get it by Saturday, Feb 28

Only 3 left in stock.

Sold by Stemedu and ships from �鶹�� Fulfillment.

Arduino Uno REV3 [A000066] - ATmega328P Microcontroller, 16MHz, 14 Digital I/O Pins, 6 Analog Inputs, 32KB Flash, USB Connectivity, Compatible with Arduino IDE for DIY Projects and Prototyping

$38.99

Get it by Thursday, Feb 26

In Stock

Sold by Electron City and ships from �鶹�� Fulfillment.

Total price:��$00

To see our price, add these items to your cart.

Try again!

Details

Added to Cart

One of these items ships sooner than the other.

Show details Hide details

Choose items to buy together.

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

Product information

Technical Details

Educational objective(s)	‎HIGH
Model Number	‎25KG - 180 Degree
Assembly Required	‎No
Batteries Required?	‎No
Batteries Included?	‎No
tech_spec_battery_description_toys	‎[PART] Batteries required
Material type(s)	‎Aluminum, Plastic
Colour	‎Red and Black
Manufacturer recommended age	‎17 - 20 years
Item model number	‎25KG - 180 Degree
Parcel Dimensions	‎17 x 10.9 x 2.2 cm; 80 g
ASIN	‎B09DVRVR14

Additional Information

Customer Reviews	(31) 4.0 out of 5 stars
�鶹�� Rank	#58,720 in Toys & Games (See Top 100 in Toys & Games) #334 in RC Servos & Parts
Date First Available	Sept. 25 2021
Manufacturer	Stemedu

Feedback

Would you like to tell us about a lower price?

Product Description

Features

High performance digital standard servo
High-precision metal gears with hard anodizing
CNC aluminium middle Shell
Dual ball bearings

Specification

Stall Torque (5V)	24.5 kg/cm (291.5oz/in)
Stall Torque (6.8V)	28 kg/cm (340.1 oz/in)
Speed	0.15 sec/60°(5V) / 0.13 sec/60°(6.8V)
Operating Voltage	4.8 ~ 6.8 DC Volts
Motor Type	DC Motor
Gear Type	Copper & Aluminum
Working frequency	50-333Hz
Control System	PWM(Pulse width modification)
Pulse width range	500��2500μ��
Neutral position	1500μ��
Running degree	180° (When 2500μsec)
Dead band width	3 μsec
Rotating direction	Counterclockwise (when 500~2500 μsec)
Weight	60 g (2.12 oz)
Size	40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)

Rotating angle: 0-180°, 0° (When 500μsec) -180° (When 2500μsec)
Pulse width range: 500��2500μ��
Neutral position: 1500μ��

Surface waterproof, but cannot be used in water

Package includes: Accessories pack
