| Brand | FEELWORLD |
|---|---|
| Manufacturer | FEELWORLD |
| Model | FW279S-US |
| Model Name | FW279S |
| Part Number | FW279S-US |
| Hardware interface | HDMI |
| Response Time | 1 Milliseconds |
| Scanner Resolution | UXGA Wide |
| Special features | Flicker-Free, High Dynamic Range |
| Mounting Hardware | Monitor, Mini HDMI Cable, Hot Shoe Mount, F970 Battery Plate, Operation Manual |
| Display Technology | LED |
| Standing screen display size | 7 Inches |
| Display type | LED |
| Color Screen | Yes |
| Viewing angle | 8E+1 Degrees |
| Image brightness | 2200 cd/m² |
| Image Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:10 |
| Display Resolution | 1920x1200 |
| Resolution | 1920 x 1200 |
| Maximum vertical resolution | 1 |
| Voltage | 12 Volts |
| Batteries included | No |
| Batteries Required | No |
| Refresh rate | 480 Hz |
| Connector Type | HDMI |
| Mounting type | vesa_mount |
| Manufacturer | FEELWORLD |
| Item model number | FW279S-US |
| Product Dimensions | 10 x 10 x 10 cm; 365 g |
| ASIN | B07J5C3D5S |
Frequently bought together
This item: FEELWORLD FW279S 7 Inch Ultra Bright 2200nit DSLR Camera Field Monitor Daylight Viewable High Brightness Full HD 1920x1200 3G SDI 4K HDMI Input Output
$489.99
Get it by Tuesday, Sep 9
Only 2 left in stock.
+
$24.63
Get it by Saturday, Sep 6
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Product information
Additional Information
| Date First Available | Nov. 21 2018 |
|---|---|
| Customer Reviews |
4.4 out of 5 stars |
| 鶹 Rank |
|
| Is discontinued by manufacturer | No |
Feedback
Videos for similar products
Product Description
Accurately expose and focus every shot.
- Histogram
- Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Zebra Exposure
- Embedded Audio
- Nine Grid
- Scan Mode (Under Scan, Over Scan)
- Zoom (4x,9x,16x)
- Anamorphic Mode (1.3x,2.0x,2.0x mag), Pixel to Pixel
- Center Marke, Safe Area (80%,85%,90%,93%,96%,2.35:1)
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Marker Color (Red,Green,Blue,White,Black）
- Check Field (Red/Green/Blue/Mono)
- Image Flip (H, V, H/V), Image Freeze, Zoom All U/D & L/R Zoom
- Compatible Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
(Note battery not include, need purchase sperate)
Since the FW279S is the ultra bright, so it's high Consumption: ≤18. So choose a larger battery capacity can be used for a longer period of time, the Sony F970 can use about 2-3 hours.
- FAQ
1. Can't turn on the monitor
Make sure to use the standard 12V 3A power adapter to connect the monitor. If power is supplied by F970 battery, please check if the F970 battery is fully charged.
2.Have noise during recording
Long press “<“ button and turn down volume to near zero, can aviod have not nosie during recording. Long press ">" is increase the volume.
3.The monitor display " no signal"
1）Try another HDMI cable.
2）And please try to connect monitor HDMI to your computer, try if the monitor have signal?
3）Change the camera output singal, confirm the monitor input signal whether support the camera output signal.
2200nit High Brightness Meet Sunlight Challenge
with its 2200 cd/m2 bright backlight, overcomes this environmental difficulty. When you monitor indoors you can adjust the backlight. FW279S can meet indoor and outdoor environmental monitoring. With 1920x1200 resolution, impressive 323 PPI, Rec.709 professional color calibration to provide a sharp image, ideal for focus pulling and image analysis on set and in the field. Includes 4K HDMI and 3G-SDI, you can connect any DSLR, prosumer or professional camera. The VESA 75 mounting holes set in the back to attach the monitor to a sturdier mount if needed.
Embedded Audio
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
Nine Grid
Nine Grid Zoom: Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Professional Color Calibration
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
More Detail about FW279S
Display Spec.
- Screen Size: 7" IPS
- Resolution: 1920x1200 pixels
- Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
- Aspect Ratio: 16:10
- Brightness: 2200/²
- Contrast Ratio: 1200:1
- Backlight: LED
- Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
- Input/ Output: 1X4K HDMI, 1XSDI
- Audio: Stereo Headphone, Speaker
- HDMI Input/ Output Format: 480i/576i/480p/576p1080i(60/59.94/50)720p (60/59.94/50/30/29/25/24/23.98)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
- SDI Format: 480i/576i720p(60/59.94/50/30/29/25/24/23.98)1080i(60/59.94/50)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
General
- Input Voltage: ٰ7～24
- Power Consumption: ≤18
- Power Connector: DC
- Working Temperature: -20°55°
- Storage Temperature: -30°65°
- Install Way: 1/4"-20 Thread Socket (bottom), 75mm VESA Mounting
- Size: 180Lx120Hx25D (mm)
- Weight: 365g/395g (With F970 Battery Plate)
- Note: Power Adapter need use 3A

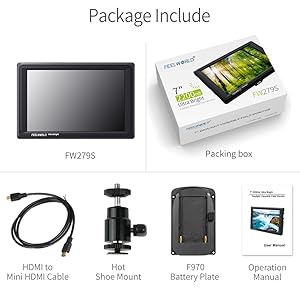

Package Include
- 1 x FW279S Monitor
- 1× HDMI to Mini HDMI Cable
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
- 1× Operation Manual
