| Model Number | LS4477-360 |
|---|---|
| Number of pieces | 1 |
| Batteries Required? | No |
| Batteries Included? | No |
| Material type(s) | Plastic Metal |
| Number of Channels | 3 |
| Manufacturer recommended age | 1 month and up |
| Item model number | LS4477-360 |
| Parcel Dimensions | 11 x 9.7 x 2.2 cm; 90 g |
| ASIN | B08JCVLSCK |
Frequently bought together
This item: Wishiot TD-8135MG 35KG 360 Degree Continuous Rotation Servo Digital Coreless 500μs-2500μs Large Torque Metal Gear for DIY Robot Robotic RC Model
$34.99
Get it by Saturday, Mar 7
Only 5 left in stock.
+
$30.38
Get it by Tuesday, Mar 10
Only 2 left in stock.
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Explore more from across the store
Page 1 of 1 Start again
- Miuzei MG996R Servo Motor Metal Gear High Speed Torque Digital Servo for RC DIY Helicopter Car Boat Robot (2)FREE Shipping by 鶹Get it by Saturday, Mar 7
- 30A Electric Brushless Motor Controller, 2 Pcs ESC Speed Controller with XT60 and 3.5mm Bullet Plugs for RC Drone RC Airplane HelicopterFREE Shipping by 鶹Get it by Sunday, Mar 8
- 30 Sets Servo Connector Male Female Plug Crimp Pin Cable Kit Compatible with Futaba JR Hitec Spektrum RC Connectors (with Crimping Tool)FREE Shipping by 鶹Get it by Saturday, Mar 7
- 5 Pcs JR/Futaba Style Servo 1 to 2 Y Harness Leads Splitter Cable Male to Female Extension Lead Wire for RC Models Airplane 7cmFREE Shipping by 鶹Get it by Saturday, Mar 7
Product information
Additional Information
| Customer Reviews |
4.5 out of 5 stars |
|---|---|
| 鶹 Rank |
|
| Date First Available | Sept. 30 2020 |
| Manufacturer | Wishiot |
Feedback
Product Description
Wishiot

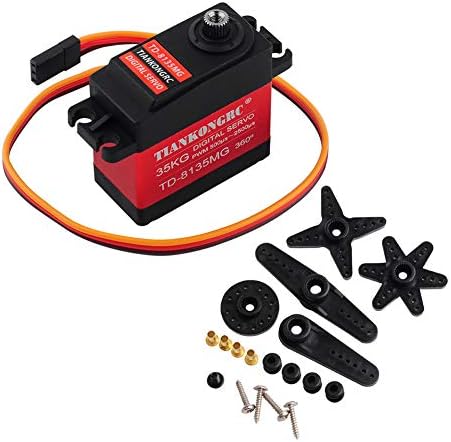

Wishiot TD-8135MG 35KG Digital Servo 360 Degree
- Large Torque ：Peak stall torque is 32.7kg.cm-35.2kg.cm
- High Quality：equipped with strong metal gear,CNC aluminium middle Shell
- High Rotation：well-controlled, 360 degree continuous rotation(can't control its angle). Widely uesd for DIY Car Robot Robotic RC Model
Electrical Specification
- Working voltage range: 4.8-8.4V
- No load speed：0.32sec/60°(4.8V), 0.22sec/60°(8.4V)
- Runnig current：40mA(4.8V), 200mA(8.4V)
- Peak stall torque: 32.7kg.cm(4.8V), 35.2kg.cm(8.4V)
- Stall current: 2800mA±10%(4.8V), 3800mA±10%(8.4V)
Mechanical Specification
- Size: 40.0*20.5*40.5mm
- Weight: 56g±5%
- Gear type: 5 Metal
- Limit angle: 360°
- Bearing: 2BB
- Horn type: Plastic, POM
- Case: Engineering plastics(PBT)+Aluminum alloy
- Connector wire: 320mm±5mm
- Motor: Carbon brush motor
- Splash water resistance: yes
Control Specification
- Command signal: Pulse width modification
- Amplifier type: Digital controller Pulse width range: 500～2500usec
- Neutral position: 1500usec
- Running degree: 360°±3°(when 500～2500usec)
- Dead band width: 5 usec
- Rotating direction: Counterclockwise (when 1000～2000usec)
- Storage Temperature Range: -30°C～80°C
- Operating Temperature Range: -25°C～70°C
