| Brand | Waveshare |
|---|---|
| Manufacturer | Waveshare |
| Model Name | ESP32-S3 1.69inch Touch Display Development Board |
| Part Number | ESP32-S3-Touch-LCD-1.69 |
| Memory storage capacity | 384 KB |
| Ram Memory Installed Size | 512 KB |
| RAM memory technology | DDR3 |
| OS | Linux |
| Processor Brand | Espressif |
| Processor Speed | 2.4E+2 MHz |
| Number of Processors | 2 |
| Processor Socket Type | DIP |
| Compatible processor types | ESP32-S3-Touch-LCD-1.69 |
| Processor model number | ESP32-S3-Touch-LCD-1.69 |
| Compatible Devices | Personal Computer, Microcontroller |
| Chipset Type | ESP32-S3-Touch-LCD-1.69 |
| Mounting Hardware | 1.69inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, MX1.25 battery header, RTC battery header, BOOT button, RST Reset button, PWM button, 4x GPIO, I2C, and UART interface headers |
| Batteries included | No |
| Batteries Required | No |
| Wireless Standard | Bluetooth, 802.11bgn |
| Total USB Ports | 1 |
| Connector Type | Wi-Fi |
| Manufacturer | Waveshare |
| Manufacturer reference | ESP32-S3-Touch-LCD-1.69 |
| Parcel Dimensions | 6.81 x 5.11 x 1.9 cm; 18 g |
| ASIN | B0D3GDH7VD |
- VIDEO
ESP32 S3 Touch LCD 1.69waveshare
Image Unavailable
Image not available for
Colour:
Colour:
-
-
-
- To view this video, download
Product information
Additional Information
| Date First Available | May 7 2024 |
|---|---|
| Customer Reviews |
4.0 out of 5 stars |
| Â鶹Çø Rank |
|
Feedback
Videos for similar products
Brand in this category on Â鶹Çø
Sponsored
From the brand
-
Wonrabai
Wonrabai specializes in Electronic Components and Development Tools.
Up to now, our product lines of electronic components include: Expansion Boards, LCD Displays, Cameras, ESP32 Development Board and with LCD or AMOLED Display,
IoT/Commnication (Long/Short Range Wireless, Converter-USB to RS485/RS232/RS422/UART/CAN/TTL /ETH,etc.), Robotics, AI Related Goods, etc.
Join us in shaping the future of electronics¡ªwhere innovation meets integrity.
-
Raspberry Pi Boards
-
LCD Displays
-
ESP32 Dev with LCD/AMOLED
-
ESP32 Dev Boards
Product Description
Features

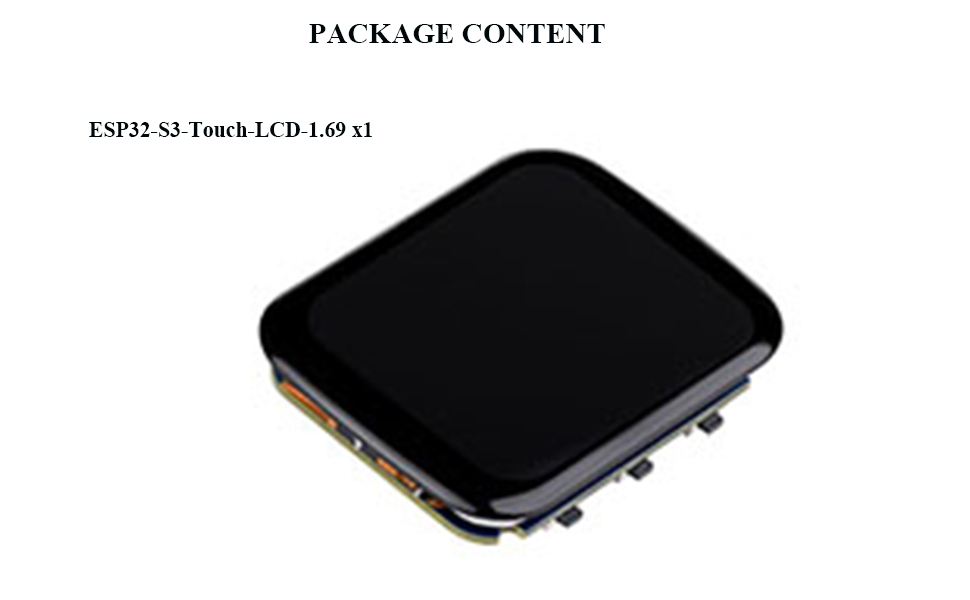

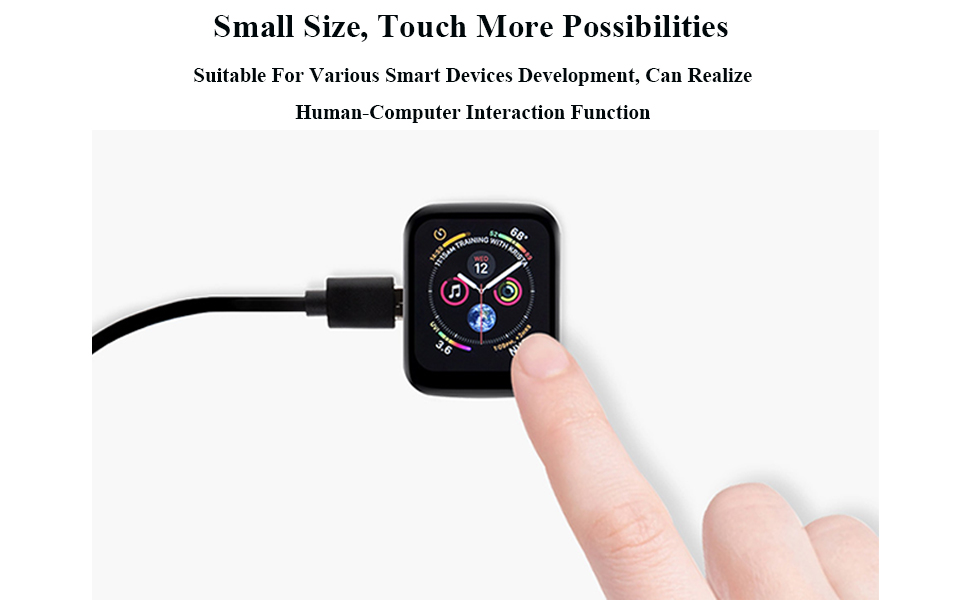

ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Lithium ba tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz W--F-i (802.11 b/g/n) and Blue--too--th 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch 240¡Á280 pixels 262K capacitive touch display for clear color pictures
- Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved SH1.0 RTC ba tte-ry header (supports charging) for RTC function requirement
- Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lithium ba tte-ry recharge/discharge header
- Reserved pads of 4 ¡Á GPIO, I2C, and UART interface, for connecting peripherals and debugging
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- High touch screen transmittance, fast response and long lifetime
