  • [BLE Vibration Sensor] WTVB01-BT50 Smart Vibration Module Ar-duino, 3-axis Vibration(Amplitude+Frequency+Displacement+Speed) Detector, Wireless Acceleration Shock Motor Monitor
  • Attitude measurement is achieved through the use of strapsWitmotion

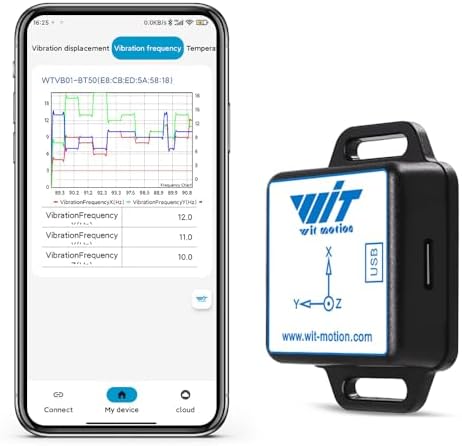

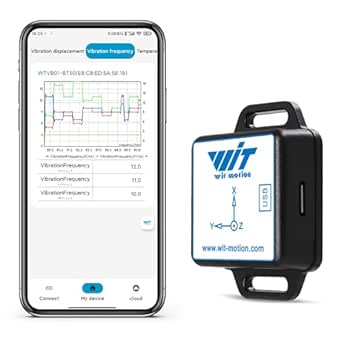

[BLE Vibration Sensor] WTVB01-BT50 Smart Vibration Module Ar-duino, 3-axis Vibration(Amplitude+Frequency+Displacement+Speed) Detector, Wireless Acceleration Shock Motor Monitor

4.0 out of 5 stars (74)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

  • 【Integrated Vibration Sensor】Real-time capture of 3-axis vibration and temperature data: Vibration displacement (0~30000um) + Speed (0~50mm/s) + Amplitude (0~180°) + Operating temperature (-20°C~60°C). Vibration and shock omnidirectional measurements can prevent breakdowns and repair costs.
  • 【BLE 5.0 Low Power】 50m transmission distance, approximately 8 hours battery life. Bluetooth 5.0 is compatible with Android/iOS systems. The WITMOTION APP supports connecting sensors on smartphones (up to 4 on the same phone). It can also be connected to a computer via TYPE-C, making it easy for users to choose the best connection.
  • 【Easy Install & Use】The wireless design allows the sensors to be installed on machine parts that are difficult to access. A small and portable sensor designed with strap holes at both ends that can be used and go anywhere.
  • 【Analysis Vibration Sensor System】Condition monitoring and vibration analysis are seamlessly integrated with WITMOTION PC software, making it quick and easy to analyze and visualize data. Maintenance teams can set it up as needed.
  • 【Attitude Measurement More Accurate & Reliable】Sensors integrated R&D fusion algorithm, low noise level, and increasing measurement accuracy ensuring stable data output. WITMOTION has been focusing on the sensor field for 10 years, providing professional attitude measurement solutions globally.
› See more product details

Frequently bought together

This item: [BLE Vibration Sensor] WTVB01-BT50 Smart Vibration Module Ar-duino, 3-axis Vibration(Amplitude+Frequency+Displacement+Speed) Detector, Wireless Acceleration Shock Motor Monitor
$65.38
Get it by Thursday, Mar 5
In Stock
Sold by Witmotion and ships from 鶹 Fulfillment.
+
[Bluetooth 5.0 50m Accelerometer] Witmotion® WT9011DCL MPU9250 High-Precision 9-axis Inclinometer Gyroscope+Angle(XY 0.2°)+Ma
$53.00
Get it by Wednesday, Mar 4
In Stock
Sold by Witmotion and ships from 鶹 Fulfillment.
+
[Bluetooth 5.0 Accelerometer+Inclinometer] WT901BLECL MPU9250 High-Precision 9-axis Gyroscope+Angle(XY 0.2° Accuracy)+Magneto
$65.54
Get it by Wednesday, Mar 4
In Stock
Sold by Witmotion and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
Choose items to buy together.

Explore more items

Page 1 of 1 Start again
Previous set of slides
Next set of slides

Product details

  • Batteries ‏ : ‎ 1 CR123A batteries required. (included)
  • Product Dimensions ‏ : ‎ 3.6 x 1.5 x 5.13 cm; 68 g
  • Date First Available ‏ : ‎ May 29 2023
  • Manufacturer ‏ : ‎ WITMOTION
  • Place of Business ‏ : ‎ anne@wit-motion.com, support@wit-motion.com
  • ASIN ‏ : ‎ B0C6KBSCLH
  • Item model number ‏ : ‎ WTVB01-BT50
  • Country of origin ‏ : ‎ China
  • 鶹 Rank: #23,050 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • Customer Reviews:
    4.0 out of 5 stars (74)

Product information

Technical Details

Manufacturer ‎WITMOTION
Place of Business ‎anne@wit-motion.com, support@wit-motion.com
Part number ‎WTVB01-BT50
Item Weight ‎68 g
Product Dimensions ‎3.6 x 1.5 x 5.13 cm; 68 g
Batteries ‎1 CR123A batteries required. (included)
Item model number ‎WTVB01-BT50
Item Package Quantity ‎1
Batteries Included? ‎Yes
Batteries Required? ‎Yes
Battery Cell Type ‎Lithium
Length ‎36 millimeters
Width ‎15 millimeters
Height ‎5.1 Centimetres

Additional Information

ASIN B0C6KBSCLH
Customer Reviews
4.0 out of 5 stars (74)

4.0 out of 5 stars
鶹 Rank
Date First Available May 29 2023

Feedback

[BLE Vibration Sensor] WTVB01-BT50 Smart Vibration Module Ar-duino, 3-axis Vibration(Amplitude+Frequency+Displacement+Speed) Detector, Wireless Acceleration Shock Motor Monitor

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product Description

The Superiority of AHRS IMU High Precision BLE5.0 Vibration Sensor WTVB01-BT50


BLE vibration sensor measures 3-axis angle, angular velocity, acceleration, and magnetic field. Its strength lies in the algorithm which can calculate the three-axis angle accurately.

The robust housing and the small outline make it perfectly suitable for industrial retrofit applications such as motion capturing, engineering machine monitoring, etc.

WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

The Superiority of Vibration Sensor

Merchant video
Current <25mA
Working Temperature -40℃ ~ +85℃
Battery life about 8 hours
Data output frequency 1-100Hz (default 10HZ) {Cutoff frequency: 1-100Hz (default 100Hz)}
Interface Type-C, Low-energy Bluetooth 5.0
Baud Rate 115200 (default, can not be changed)
Voltage 3.7-5V, built-in rechargeable battery (260mAh capacity, 3.7V)
Output Content 3-axis vibration speed, vibration angle, vibration displacement, and temperature.
Range Vibration speed:0~50mm/s; Vibration amplitude: 0~180°; Vibration displacement:0~30000um
Resolution Acceleration (0.5mg/LSB; 2048LSB/g), Gyroscope (0.061(°/s)/LSB), Magnet Field (0.0667mG/LSB), Angle (0.0055°/LSB)
Accuracy <F.S+5%
Multi-connection Recommend up to connect 4 devices (Support iOS/Android/Windows)
Type-C cable 20cm

WITMOTION Attitude Accelerometer IMU Sensor Series

WTVB01-BT50 Vibration

WTVB01-485 Vibration

WT901BLECL Accelerometer

WT9011DCL Accelerometer

WT901C-TTL Digital Sensor

WT901 Digital Sensor

Industrial Grade HWT901B

Buying Options
Customer Reviews
4.0 out of 5 stars 74
4.6 out of 5 stars 11
3.8 out of 5 stars 160
3.7 out of 5 stars 66
3.6 out of 5 stars 28
4.1 out of 5 stars 54
5.0 out of 5 stars 1
Interface
BLE 5.0, Type-C USB-RS485 Bluetooth 5.0, Type-C Bluetooth 5.0, Type-C TTL TTL RS232
Compatibility
Android/iOS phone, Windows PC Windows PC Android/iOS phone, Windows PC Android/iOS phone, Windows PC Android phone, Windows PC Android phone, Windows PC Android phone, Windows PC
Input Voltage
3.3-5V, in-built battery 5-36V 3.3-5V, in-built battery 3.3-5V, in-built battery 3.3-5V 3.3-5V 5-36V
Cut-off frequency
1HZ--100HZ 1HZ--100HZ Output frequency 0.2HZ--200HZ Output frequency 0.2HZ--200HZ Output frequency 0.2HZ--200HZ Output frequency 0.2HZ--200HZ Output frequency 0.2HZ--200HZ
3-axis vibration speed
✓ ✓ 3-Axis Acceleration 3-Axis Acceleration 3-Axis Acceleration 3-Axis Acceleration 3-Axis Acceleration
3-axis vibration angle
✓ ✓ 3-Axis Angular velocity 3-Axis Angular velocity 3-Axis Angular velocity 3-Axis Angular velocity 3-Axis Angular velocity
3-axis vibration displacement
✓ ✓ 3-Axis Angle 3-Axis Angle 3-Axis Angle 3-Axis Angle 3-Axis Angle
Temperature
✓ ✓ 3-Axis Magnetic Field 3-Axis Magnetic Field 3-Axis Magnetic Field 3-Axis Magnetic Field 3-Axis Magnetic Field
Housing
Plastic case Aluminum case, IP68 waterproof Plastic case Plastic case Plastic case no Aluminum case, IP67 waterproof
Main Features
Bluetooth range 50 meters Modbus,with PLC/Arduino/python Bluetooth range 50 meters Bluetooth range 50 meters 9-axis High Accuracy sensor 9-axis High Accuracy sensor Industrial Grade Accuracy
