  • UHPPOTE Door Access Control Kit with Electric Strike Lock Remote Control
  • Wiring Video (Access Keypad+HBK-R01+HBK-P02)UHPPOTE

Safety and product resources

Documents and guides

UHPPOTE Door Access Control Kit with Electric Strike Lock Remote Control

4.4 out of 5 stars (30)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.
  • This system come with a fail-secure lock which will locked when power is removed.
  • An exit button is included in this electric strike lock system kit, and you could exit from indoors easily by pushing it once.
  • 0/5/10 seconds autolock time delay adjustable, default is 5 seconds
  • Attention: Strike lock will work with mechanical lock or knob lock which need buy separately.
› See more product details

Frequently bought together

This item: UHPPOTE Door Access Control Kit with Electric Strike Lock Remote Control
$88.70
Get it by Wednesday, Mar 25
Only 4 left in stock.
Sold by UHPPOTE and ships from 鶹 Fulfillment.
+
1-Button RF Wireless Remote Control Transmitter 433.92MHz for UHPPOTE
$14.33
Get it by Sunday, Mar 22
In Stock
Sold by UHPPOTE and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
One of these items ships sooner than the other.
Show details Hide details
Choose items to buy together.

Product Description

1

Describe

  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the RF receiver which can programed up to 40 transmitters, and it has a range of 164ft.
  • The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
  • An exit button is included in this electric strike lock system kit, and you could exit from indoors easily by pushing it once.
  • 0/5/10 seconds locking delay time adjustable, default is 5 seconds.

Easy Settings

  • Human friendly: Function switches designed outside the device, easy to set the sound effects, working mode and delay time.
  • Sound effects feedback: Built-in buzzer provides feedback on operation and can be turned off as needed.
  • Expansion port: The expansion port support to add a access control keypad. Please search ASIN B00UX03JCS, B00X56ALEG or B00UX03A7W to get the keypad.

Strike Lock

  • Input Voltage: 12VDC
  • Current: 200mA
  • Holding Force: 1100lbs (500kg)
  • Fail secure, NO mode (Locked when power is removed)
  • Suitable For: Wooden door, metal door, PVC door
  • Strike lock needs to work with mechanical lock. Mechanical lock should buy separately.
  • With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)
  • Dimensions (LxWxH): 5-29/32"x1-9/16"x1-11/32" (150x39.5x34mm)
  • Function: Built-out MOV
  • Net Weight: 0.64lb (0.29kg)

Power Adapter

  • Input: AC100V-240V 50/60Hz
  • Max Output: DC12V / 1A (1000mA)
  • Wire Type: 22AWG
  • AC Cord Length: 4 feet (1.2 meters)
  • Output Transformer Adapter: 5.5x2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
  • Certificate: FCC

Attention

  • Strike lock will work with mechanical lock or knob lock which is sold separately.

111

Remote Control

  • Voltage: 12VDC
  • Frequency: 433MHz
  • RF Channel: 1
  • Transmitter Support: Max. 40
  • DC Encoding Type: Learning code
  • Working Range: 164ft in open area, 15%-30% in reality
  • Adjustable Locking Delay: 0/5/10sec
  • Working Mode: Momentary/Toggle
  • Enclosure Material: ABS Plastic

button

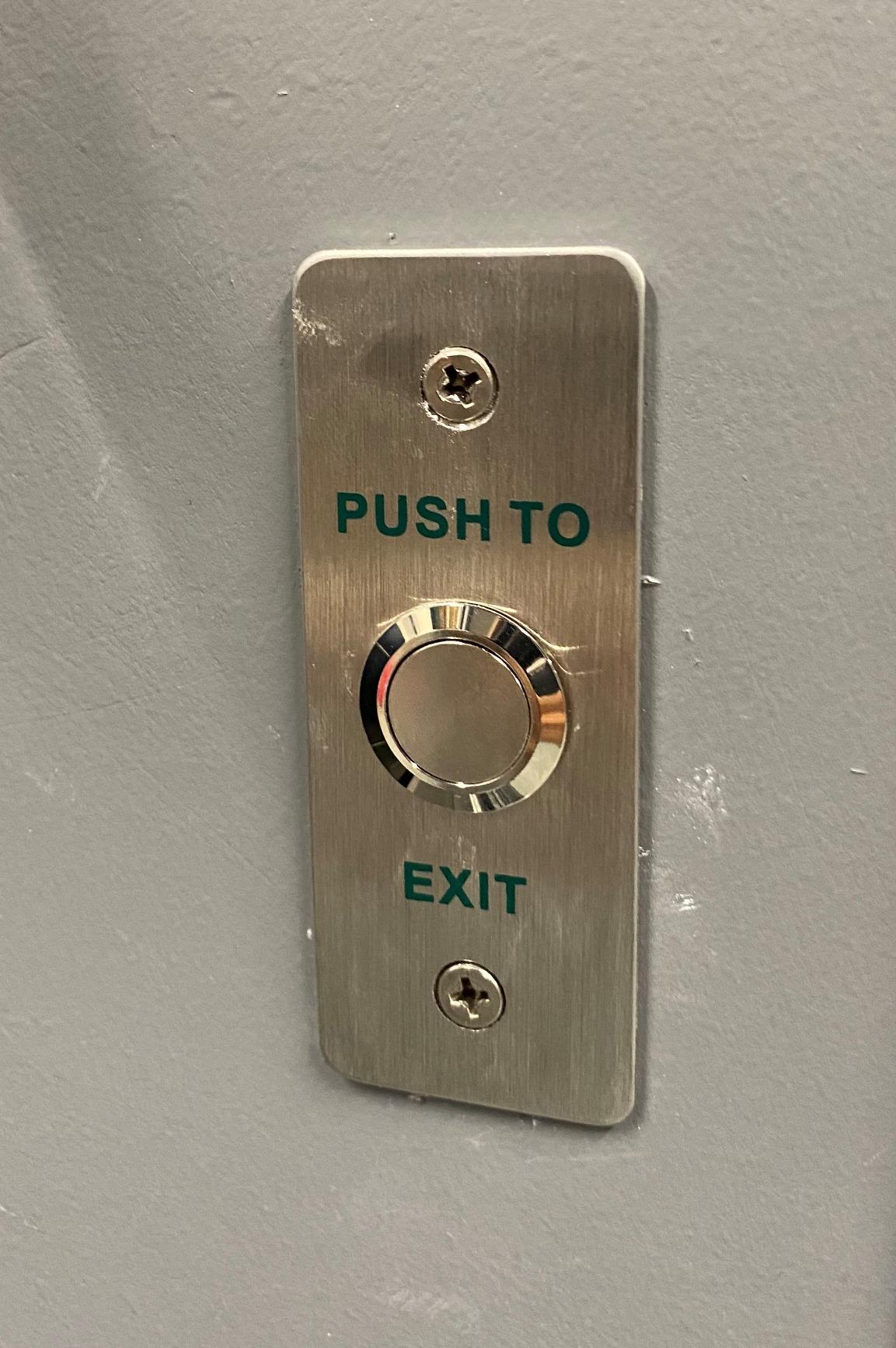

Exit Button

  • Dimensions (LxWxH): 3-35/64"x1-3/8"x1-3/64" (90x35x26.5mm)
  • Standard Structure: Stainless steel panel, steel button
  • Mechanical Life: 500000 tests
  • Current Rating: 3A@36VDC Max.
  • Output Contact: NO/COM
  • Operating Temperature: 14℉~131℉ (-10℃~55℃)
  • Operating Humidity: 0-95% (relative humidity)
  • Panel Material: Stainless steel panel, wire drawing finished
  • Suitable for hollow door

111

Remote Transmitter

  • Working Voltage: 6VDC (Built-in button battery)
  • Operating Current: 3mA
  • Powered By: 2pcs CR2016 batteries
  • Service Life of the Battery: 50000 cycles tests
  • Transmitting Frequency: 433MHZ
  • Enclosure Material: ABS plastic
  • Button: 1
  • EncodingType: Fixed code

de

Demo for Work with Knob Lock

  • Worked with knob lock
  • Strike lock will work with mechanical lock or knob lock which is sold separately.

no

No Polarity Requirement

  • With two contacts and no polarity requirement.

Tip:

  • The lock will have polarity when a diode added.
  • The diode can protects strike from over voltage, so would solder it into the positive side.

UT-KIT-130NO-814A

Package

  • 1 x Electric Strike Lock
  • 1 x Remote Receiver
  • 2 x Remote Transmitter
  • 1 x Exit Button
  • 1 x 12V Adapter (Cord Length: 4ft)
  • 1 x English User Manual
  • Tips: Please search ASIN B07G8Z5X2Y to get more transmitters.

Wiring Diagram

1

Operating Setting

  • Clear Code: Tap and hold RF icon for 8 seconds until the indicator changes from green to red, indicating the clear code is successful.
  • Match Remote: Tap RF icon followed by press the button on the remote transmitter within 20 seconds.

Product information

Technical Details

Brand ‎UHPPOTE
Manufacturer ‎UHPPOTE
Place of Business ‎DATA ELECTRONICS HK.,LIMITED
Model ‎946404ce-60e1-4caf-9fc8-a7976e52a076
Model Name ‎946404ce-60e1-4caf-9fc8-a7976e52a076
Compatible Devices ‎Smartphone
Special features ‎Infrared, Wireless
Mounting Hardware ‎Remote Control
Battery Description ‎Lithium
Batteries included ‎Yes
Batteries Required ‎Yes
Battery Cell Composition ‎Lithium Manganese Dioxide
Connector Type ‎Wireless
Material Type ‎Plastic
Does it contain liquid? ‎No
Includes rechargable battery ‎No
Manufacturer ‎UHPPOTE
Item model number ‎946404ce-60e1-4caf-9fc8-a7976e52a076
Product Dimensions ‎15 x 3.95 x 0.03 cm; 1.1 kg
ASIN ‎B079QJMD8S

Additional Information

Batteries 2 CR2 batteries required. (included)
Date First Available Dec 24 2020
