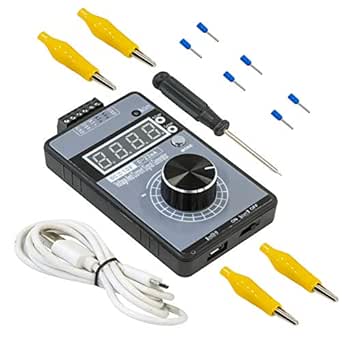

  • UCTRONICS DC 0-10V 0/4-20mA Current Voltage Signal Generator, USB Power Supply Interface Analog Simulator for PLC and Panel Debugging, Device Testing, Frequency Converter, Flow Valve

UCTRONICS DC 0-10V 0/4-20mA Current Voltage Signal Generator, USB Power Supply Interface Analog Simulator for PLC and Panel Debugging, Device Testing, Frequency Converter, Flow Valve

4.2 out of 5 stars (263)
To see product details, add this item to your cart. You can always remove it later.

About this item

  • Power Supply: external micro USB-5V or external power DC 15-30V, each way makes the generator work, both ways also can be connected at the same time.
  • Voltage Output: 0-10V, precision is 0.01V, rotate the encoder knob to adjust output voltage, can be calibrated.
  • Current Output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated.
  • Multiple Display: just push the small botton to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.
  • Product Dimension: 3.94 x 2.36 x 0.98 (100mm x 60mm x 25mm), portable and convenient. Note: optional 803040 battery expansibility (battery not included). Please search ASIN "B07PCKCV5K" to get built-in battery generator.
› See more product details

Product information

Technical Details

Manufacturer ‎UCTRONICS
Part number ‎U6206
Item Weight ‎90.7 g
Parcel Dimensions ‎9.7 x 9.3 x 3.6 cm; 90.72 g
Item model number ‎DC0-10V0-20mA-SIG-GEN
Is discontinued by manufacturer ‎No
Size ‎3.94 x 2.36 x 0.98 (100mm x 60mm x 25mm)
Colour ‎DC 4-20ma Signal Generator, No Battery
Pattern ‎Numerical Display, Precise Output, Minimalist Design
Power source type ‎Corded Electric
Item Package Quantity ‎1
Specifications ‎CE, NIST
Batteries Included? ‎No
Batteries Required? ‎No

Additional Information

ASIN B07L491RLM
Customer Reviews
4.2 out of 5 stars (263)

4.2 out of 5 stars
鶹 Rank
Date First Available March 14 2019

Feedback

UCTRONICS DC 0-10V 0/4-20mA Current Voltage Signal Generator, USB Power Supply Interface Analog Simulator for PLC and Panel Debugging, Device Testing, Frequency Converter, Flow Valve

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product details

  • Is discontinued by manufacturer ‏ : ‎ No
  • Parcel Dimensions ‏ : ‎ 9.7 x 9.3 x 3.6 cm; 90.72 g
  • Date First Available ‏ : ‎ March 14 2019
  • Manufacturer ‏ : ‎ UCTRONICS
  • ASIN ‏ : ‎ B07L491RLM
  • Item model number ‏ : ‎ DC0-10V0-20mA-SIG-GEN
  • 鶹 Rank: #33,892 in Industrial & Scientific (See Top 100 in Industrial & Scientific)
  • Customer Reviews:
    4.2 out of 5 stars (263)

Product Description

UCTRONICS signal generator is designed to simulate 0-10V voltage signal and 0/4-20mA current signal for PLC and panel Debugging, Device Testing, Frequency Converter, Flow Valve, ect. Very easy to use, it can be connected with micro USB-5V power supply or DC 15-30V external power. Whats more, it can display 4 different types of digit, 0-10V voltage, 0-22mA current, 0-100 percent and 0-50HZ. It will play a important role in your electronics work.

3

Power Supply:

External micro USB-5V or external power DC 15-30V, each way makes the generator work; both ways can be connected at the same time.

When used outdoors, it can be connected with mobile power supply conveniently.

Wiring Diagram:

7

How to judge whether the module device is active or passive? Common methods below:

1. Internal principle of the device, it is passive if "I+" is 24V+; it is active if I- is 24VG;

2. Use a multimeter to measure the voltag between I+ and I-, it is active if the vaule is 0V; it is passive if the vaule is 24V.

5

Encoder Knob:

Supports stepless adjustable ratation, better performance and longer service life than normal potentiometer.

6

Reliable:

Clear LED display.

No matter in PCL debugging or other electronics work, it always simulates the signal you need.

Brands in this category on 鶹

Sponsored

Customer reviews

4.2 out of 5 stars
263 global ratings

Customers say

Customers find this electric circuit testing device works great for testing and debugging purposes. They describe it as a very good product and good wee thing. The device provides very good calibration and proves very accurate for various applications. Users have different opinions on its ease of use and the power cable.
AI Generated from the text of customer reviews

Select to learn more

19 customers mention functionality, 15 positive, 4 negative
Customers find this electric circuit testing device works well for testing and debugging purposes. They describe it as a quality instrument and a good simulator that functions effectively as a nice little tool.
Had to fiddle and experiment to make it work for my needs. But works good nowRead more
Quality instrument works well.Read more
worked well and provided and economical solution for us Brian tRead more
For experimenting. But on off switch does not work. It means the device was not tested before shippingRead more
16 customers mention quality, 15 positive, 1 negative
Customers find this electric circuit testing device to be a good quality product. They describe it as a well engineered signal generator and a good simulator. Users appreciate it as a nice little tool and consider it a very good product overall.
Good Product...Read more
Good quality product, delivered quickly, and exactly as described.Read more
excellent product...Read more
Good product...Read more
10 customers mention accuracy, 10 positive, 0 negative
Customers find the electric circuit testing device very accurate for their purposes. The device provides accurate output and readout, with very good calibration capabilities. Users report that the voltage output is damn accurate and the device works well for equipment calibration.
Love it! Used it to calibrate 4-20mA signal conditioners. Accurate, stable and inexpensive.Read more
Used for equipment calibration.Read more
Very good calibration, tested with a Fluke 289. My only regret, i should buy the one with internal battery.Read more
8 customers mention ease of use, 5 positive, 3 negative
Customers have mixed experiences with the device's ease of use. Some find it really easy to use, while others report it is not intuitive on operation and hard to understand. Several mention it is not very straightforward when calibrating.
Easy to use...Read more
8 customers mention power cable, 3 positive, 5 negative
Customers have mixed opinions about the power cable on this electric circuit testing device. Some find it easy to get a power cable and appreciate the mini USB as a nice addition, while others note it doesn't have an internal battery and requires external power. The device can charge off of the micro USB.
...There is no battery. The switch for battery on/off is a phony one. You can either get 24v supply or power it up with USB cable. Thats it.Read more
