Twidec/Display PID Temperature Controllers Thermostat Box 1000W 10A 110V Temperature Control BoxTWIDEC
  • Twidec/MV100-B10 Digital Display PID Temperature Controllers Thermostat Regulator AC 85V - 265V + K Sensor Thermocouple + Heat Sink and Solid State Relay SSR 40 DA
  • To view this video, download

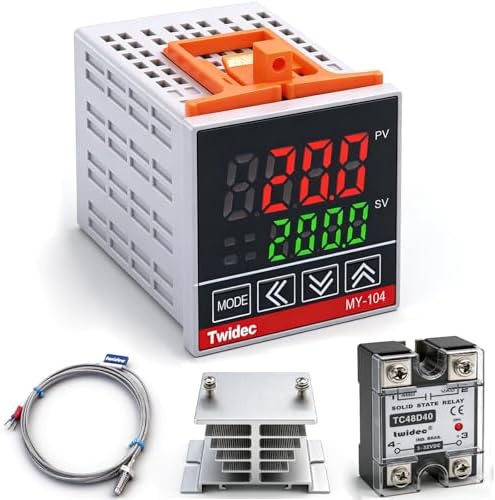

Twidec/MV100-B10 Digital Display PID Temperature Controllers Thermostat Regulator AC 85V - 265V + K Sensor Thermocouple + Heat Sink and Solid State Relay SSR 40 DA

4.2 out of 5 stars (121)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • Product name: Temperature Controller MV100-B10 ;Product name: solid state module relay SSR-40DA, 3-32VDC/24-380VAC; Product name: K-Type Thermocouple Sensor Dia: 6mm ,Cable Length: 2m(6.6ft).
  • Digital Display PID : Support reading with Centigrade or Fahrenheit unit £¨factory default to Fahrenheit unit£©; be able to display measured and Controller temperature £»Display Character: PV: 4 digital 9.9mm height Red LED Letters£»SV: 4 digital 8mm height Green LED Letters£»
  • Controller Front Panel Dimension: DIN 48mm(W)X48mm(L) ; Mounting hole size: DIN 45mm(W)X45mm(L) £»Total size £ºDIN 48mm(W)X48mm(L)X74mm(H);
  • Power Supply Voltage: AC 85-265V 50/60Hz £»Input: K£¬PT100 £¨can choose£©factory default to K type ; Output: Solid state relay SSR ; Alarm mode: factory default to 1 way High deviation alarm£¨can choose£©;
  • Pacakge: 1x MV100 Controller ; 1 x 40A SSR ; 1 x K sensor ; 1x White Heat Sink ;1x English manual
› See more product details

Frequently bought together

This item: Twidec/MV100-B10 Digital Display PID Temperature Controllers Thermostat Regulator AC 85V - 265V + K Sensor Thermocouple + Heat Sink and Solid State Relay SSR 40 DA
$62.50
Get it by Friday, Feb 13
In Stock
Sold by TWIDEC and ships from Â鶹Çø Fulfillment.
+
Twidec/2M NPT 1/4"inch (6X100MM) Pipe Thread Temperature Sensor Probe Two Wire Temperature Controller (0~600¡æ) 304 Stainless
$19.99
Get it by Wednesday, Feb 11
In Stock
Sold by TWIDEC and ships from Â鶹Çø Fulfillment.
+
DaierTek 30A 250V KCD2 KCD4 Rocker Switch DPST 4 Pin Red Lighted 120V Rocker Toggle Switch ON Off Heavy Duty T125-3Pack
$15.99?($5.33/count)
Get it by Wednesday, Feb 11
In Stock
Sold by DaierTek and ships from Â鶹Çø Fulfillment.
Total price:?$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Product information

Technical Details

Item weight ‎110 Grams
Display type ‎LED
Operating temperature ‎1200 Degrees Celsius
UPC ‎654913662895
Manufacturer ‎Twidec
Place of Business ‎suzhou, jiangsu 215008,CN
Part number ‎Output SSR
Item Weight ‎110 g
Product Dimensions ‎4.8 x 7.4 x 4.8 cm; 110 g
Item model number ‎Output SSR
Is discontinued by manufacturer ‎No
Item Package Quantity ‎1
Switch Type ‎1 way
Mounting Type ‎Panel Mount
Switch Style ‎Temperature Switch
Batteries Included? ‎No
Batteries Required? ‎No
Length ‎48 millimeters
Width ‎7.4 Centimetres
Height ‎48 millimeters

Additional Information

ASIN B07LCYWCB1
Customer Reviews
4.2 out of 5 stars (121)

4.2 out of 5 stars
Â鶹Çø Rank
Date First Available Feb. 13 2019

Feedback

Twidec/MV100-B10 Digital Display PID Temperature Controllers Thermostat Regulator AC 85V - 265V + K Sensor Thermocouple + Heat Sink and Solid State Relay SSR 40 DA

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product Description

  • LED digital display, simulated liquid crystal display
  • Low temperature drift coefficient components are adopted, with a measurement accuracy of 0.3 grade.
  • PID control, accurate temperature control, anti-interference and strong stability
  • Support all kinds of thermocouple and thermal resistance input

Product Introduction

ssr

SSR Single Solid State Relay

  • Current : 40A
  • Frequency : 50/60Hz
  • output Voltage : 24-480vac
  • Control Voltage : 3-32vdc
  • mounting hole diameter : 4.5Mm/0.18"
  • Total size (approximate) : 58 x 45 x 32Mm/2.3" x 1.8" x 1.26" (l*w*t)

lt-104

K-Type Thermocouple Temperature Sensor

  • Measuring Range: 0~400¡ãF
  • Probe Length: 6mmx20mm/0.23¡°x0.79¡°£¨D * L£©
  • Terminal: 2 Insulated forks; Thread:2 Meters
  • Internal Insulation: Fibreglass; External Shielding: Metal Shield;Thread £º 1/4"

É¢ÈÈƬ

Aluminum Heat Sink

  • Material: Aluminum; Color: White
  • Applies to: Single Phase Solid State Relays 10A,25A,40A
  • Radiator size (approx.): 80mmx 50mmx 50mm/3.1" x2.0" x2.0" (L*W*H)
  • Heat sink and solid state relay in this product will be coated with thermal grease and installed properly.

Panel Description

f

  • Front Panel Dimension: 51mm X 51mm/2"X2"(W*L)
  • Hole Size£º46mm X 46mm/1.8"x1.8"(W*L)
  • Power Supply Voltage: 85-265VAC 50/60Hz
  • Life expectancy of Relay: Mechanical¡Ý10,000,000 operations Electrical¡Ý10,000,000 operations
  • Weight: Approx. 110g

Wide Application

g

The temperature controller is widely used and is suitable for various occasions such as industrial manufacturing, chemical research, home appliance maintenance, etc.
