| Manufacturer | Thermalright |
|---|---|
| Place of Business | 111 |
| Part number | PS120SE BLACK |
| Item Weight | 1.52 kg |
| Product Dimensions | 12.5 x 13.5 x 15.4 cm; 1.52 kg |
| Manufacturer reference | PS120SE BLACK |
| Material | Aluminum, Copper |
| Wattage | 2.4 watts |
| Air Flow Capacity | 66.17 Cubic Feet Per Minute |
| Noise Level | 25.6 Decibels |
| Included components | cpu cooler |
| Batteries Required? | No |
| Length | 12.5 Centimetres |
| Width | 13.5 Centimetres |
| Height | 15.4 Centimetres |
-
-
-
-
-
-
-
VIDEO -
Image Unavailable
Colour:
-
-
-
- To view this video, download

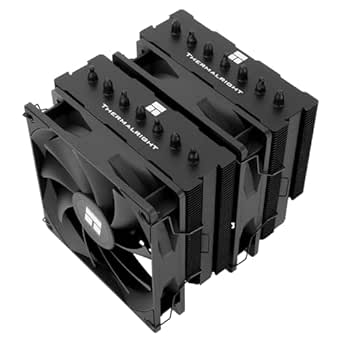

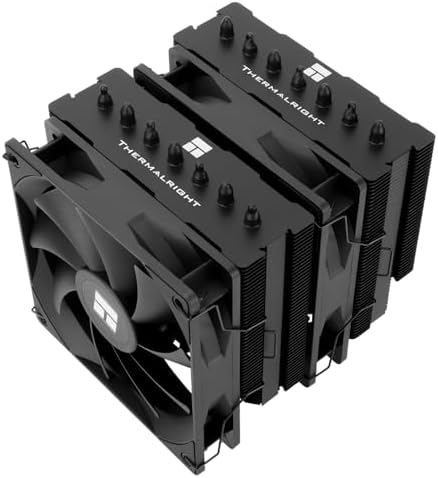

Thermalright Phantom Spirit 120 SE Black CPU Air Cooler,Doubler CPU Fans and Double Towers,154mm High CPU Cooler,for AMD:AM4/AM5,Intel 1150/1151/1200/1851/1700(PS120 SE Black)
Purchase options and add-ons
| Product Dimensions | 12.5L x 13.5W x 15.4H Centimetres |
| Brand | Thermalright |
| Power connector type | 4-Pin |
| Wattage | 2.4 watts |
| Cooling method | Air |
| Compatible devices | Desktop |
| Noise level | 25.6 Decibels |
| Material | Aluminum, Copper |
| Maximum rotational speed | 1500 RPM |
| Air flow capacity | 66.17 Cubic Feet Per Minute |
About this item
- [Better cooling] Adopting black paint fully electroplated reflow soldering process, the top adopts blackened nano coating+fully electroplated heat pipe+fine micro carved copper bottom, greatly increasing the effective heat dissipation area. memory cut corner avoidance design and can achieve excellent heat dissipation performance during operation.
- [AGHP technique] 7x6mm heatpipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators. UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you.
- [Product specification] PS120SE Black; CPU Cooler dimensions:125(L)x135(W)x154(H)mm (4.92x5.31x 6.06 inch); Heat sink material: aluminum,The main body is made of anodized black frosted top pieces + finely carved pure copper base technology, the main body is fully aluminum fins, bringing maximum heat dissipation area. combined with the high thermal conductivity of the thermal paste, which can perfectly perform the cooler's most powerful cooling effect.
- [154mm height] Double tower radiator height of 154mm, for the chassis more compatible, and do not have to worry about ATX motherboards high waistcoat, do not have to worry about the height of the memory, the main body of all-aluminium fins, can bring the maximum cooling area.
- [Compatibility] CPU cooling slot support: Intel: LGA1851/1700/1150/1151/1155/1156/1200, AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.(Note: AMD's motherboard installation requires the use of the original motherboard backplane for installation.)
Frequently bought together

Videos for similar products
Product information
Technical Details
Additional Information
| ASIN | B0D942PLPR |
|---|---|
| Customer Reviews |
4.3 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | July 9 2024 |
Feedback
Product details
- Product Dimensions : 12.5 x 13.5 x 15.4 cm; 1.52 kg
- Date First Available : July 9 2024
- Manufacturer : Thermalright
- Place of Business : 111
- ASIN : B0D942PLPR
- Manufacturer reference : PS120SE BLACK
- Country of origin : China
- 鶹 Rank: #1,972 in Electronics (See Top 100 in Electronics)
- Customer Reviews:
Product Description
Product summary presents key product information
Keyboard shortcut
Shift
+
Alt
+
opt
+
D
Product Summary: Thermalright Phantom Spirit 120 SE Black CPU Air Cooler,Doubler CPU Fans and Double Towers,154mm High CPU Cooler,for AMD:AM4/AM5,Intel 1150/1151/1200/1851/1700(PS120 SE Black)
From Thermalright
About this Item
- [Better cooling] Adopting black paint fully electroplated reflow soldering process, the top adopts blackened nano coating+fully electroplated heat pipe+fine micro carved copper bottom, greatly increasing the effective heat dissipation area. memory cut corner avoidance design and can achieve excellent heat dissipation performance during operation.
- [AGHP technique] 7x6mm heatpipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators. UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you.
- [Product specification] PS120SE Black; CPU Cooler dimensions:125(L)x135(W)x154(H)mm (4.92x5.31x 6.06 inch); Heat sink material: aluminum,The main body is made of anodized black frosted top pieces + finely carved pure copper base technology, the main body is fully aluminum fins, bringing maximum heat dissipation area. combined with the high thermal conductivity of the thermal paste, which can perfectly perform the cooler's most powerful cooling effect.
- [154mm height] Double tower radiator height of 154mm, for the chassis more compatible, and do not have to worry about ATX motherboards high waistcoat, do not have to worry about the height of the memory, the main body of all-aluminium fins, can bring the maximum cooling area.
- [Compatibility] CPU cooling slot support: Intel: LGA1851/1700/1150/1151/1155/1156/1200, AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.(Note: AMD's motherboard installation requires the use of the original motherboard backplane for installation.)
Product description
Parameters
Model: PS120SE Black
Heatsink size: 125*135*154mm
Fan size: 120*120*25mm
Rotational speed: 1500RPM±10%
Noise ≤25.6dBA
Airflow: 66.17CFM(MAX)
Wind pressure: 1.53mm H2O(MAX)
Fan connection: 4PIN PWM
Voltage: 12V DC
Current: 0.2A
Bearing Type: S-FDB Bearing
Package Details
Main Body x 1, TL-C12B V2 Fan x 1,Fan Hook x 4, AMD Bracket x 2, INTEL Bracket x 2, INTEL LGA17XX/115X Backplane x 1, Black Cylinders x 4, Screws x 4, TF7 Thermal Paste x 1, Manual x 1
