Features:
- Built-in high precision chip for high sensitivity and accurate temperature control.
- Support Centigrade or Fahrenheit unit temperature display.
- When the thermocouple is input, the resolution of digital display can reach 0.1¡æ/0.1¨H.
- Relay and SSR integration, users can freely use relay output or SSR output.
- Short shell design, only 85mm depth, easy to mount and use.
- Robust flame-retardant housing, waterproof, dustproof and anti-shock.
Specification:

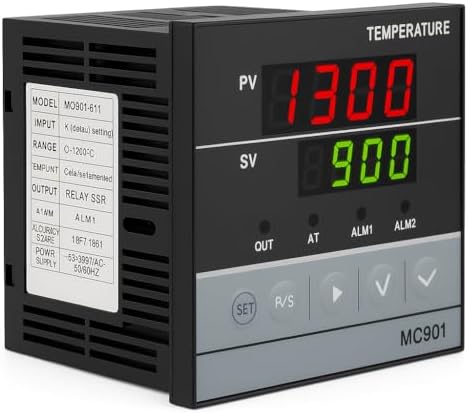

Model: MC901
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption: <10VA
Measurement object: temperature
Temperature range: -199~1300¡ãC
Temperature measurement error:¡À1¡ãC
Measurement accuracy:¡À0.5%FS
Working voltage: 85~265V
Output : Relay/SSR output
Display: ¡ãF or¡ãC
Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1¡ãC / 0.1¡ãF
Mounting type: embedded panel
Mounting size: 92*92mm / 3.6*3.6in
Dimensions: 96*96*85mm / 3.8*3.8*3.3in
Weight: Approx. 252g/8.9oz
Package List:
1 x Digital PID Temperature Controller
2 x Bolts
