Product Description
- RAM: 8MB
- Output: 0.5-1W
- Size: 30*30mm
- Speaker Size: Dia 36mm
- Control mode: button or TTL (You can select different trigger mode by connecting with different soldering pads, as the picture shown）
There are two ways to supply power:
- 4.5-5V, non-rechargeable battery (Batteries are not included.)
- 3.4-5V, 3.7V rechargeable lithium battery
- Playing mode: it can be changed to power on and play mode, short-circuit two solder points of button on the board, then it will play the songs once power on.
- Download sound files via USB cable
- Press the button to play

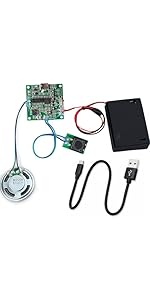

Package included
- 1 X 8MB Sound Recording Module
- 1 X Empty Battery Case
- 1 X Mini button
- 1 X Speaker
- 1 X USB cable
Instruction
You can find a user guide document in this page:
- Under the "Product guides and documents"
Control mode
- In the table,‘0' means having 3.3K resistor; '1' means without 3.3K resistor.
- You can see that there are 3 resistors on the board, the default mode is 000 (It will play the music once you press the button. If you press the button again during playing, it will stop immediately)
- You can change to other mode by removing the resistor on the board. For example, if you want to set 001 (Under this mode, you need to hold down the button to play the music. It will stop once you release the button.), you need to remove the third resistor that marked C on the board. To remove the resistor, you need a soldering iron to melt the solder and take the resistor away. It is a little difficult if you are not good at soldering so we recommend you to use 000 default mode.
Note:
- 1. The songs or record format must be MP3 / WAV.
- 2. The supporting speaker is used as a prompt sound effect speaker. If you want to play singing with higher sound quality, it is recommended to use a better speaker, but please note that the effect of this speaker can never be compared with a special speaker.
- 3. If the sound is low, replace the battery with all new.
