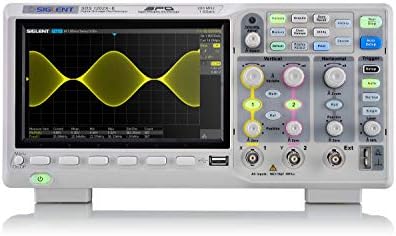

This item: Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey
$586.82
Get it Feb 10 - 12
Only 9 left in stock.
+
$42.37
Get it Feb 11 - 13
Only 1 left in stock.
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product information
Additional Information
| ASIN | B06XZML6RD |
|---|---|
| Customer Reviews |
4.6 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | April 19 2017 |
Feedback
From the manufacturer
SDS1000X-E Series Super Phosphor Oscilloscope
SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels.
Key Features
- Math co-processor speeds front panel operation
- Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
- Low background noise and 500 μV / div to 10 V / div voltage scales
- Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
- On-screen Bode plot and web-browser control (standard on 4 channel only)
- WiFi control (optional on 4 channel only)
- True measurement and math can use all 14 Mpts of memory
- Large 7-inch TFT-LCD display with 800 * 480 resolution
Key Performance Specifications
- 100 MHz-200 MHz
- 2+EXT/4 CH
- 14 Mpts Record length
- 1 GSa/s sample rate
- 1Mpts FFT
- 16 Logic/MSO Optional on 4 Channel Only
Gate and Zoom Measurement
Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.
Hardware-Based High Speed Pass/ Fail Function
The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.
1Mpts FFT
The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.
History Waveforms (History) Mode and Segmented Acquisition (Sequence)
Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.
Serial Bus Decoding Function (Standard)
SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.
True Measurement to 14 M Points
SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.
Bode Plot (Four Channel Series Only)
SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.
Web Control (Four Channel Series Only)
With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel
SDS1104X-E
|
SDS1202X-E
|
SDS1204X-E
|
|
|---|---|---|---|
|
|
|
||
| Customer Reviews |
928
|
1,393
|
— |
| Bandwidth | 100 MHz | 200 MHz | 200 MHz |
| Channels | 4 | 2+EXT | 4 |
| Real Time Sampling Rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| 256 -Level Intensity Grading and Color Temperature Display | ✓ | ✓ | ✓ |
| Memory Depth (Max.) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) | 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
| Trigger Type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video |
| Capture Rate | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
| USB AWG Module (Four Channel Series Only, Option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output (SAG1021I only) | Not Support | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output (SAG1021I only) |
| 16 Digital Channels (Four Channel Series Only, Option) | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH | Not Support | Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH |
