To see product details, add this item to your cart. You can always remove it later.
Purchase options and add-ons
Brand
SazkJere
Speed
200 RPM
Horsepower
25 Watts
Material
Plastic
Manufacturer
SazkJere
About this item

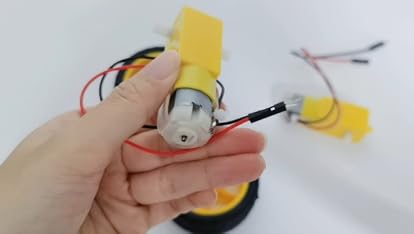

💕This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors.
💕TT Motor: with EMC, it has an anti-interference ability. Perfect for plugging into a breadboard or terminal blocks.
💕L298N as main driver chip makes strong driving ability, small heating, strong anti-interference, low calorific value. Dual-channel H-bridge driver working mode creates higher working efficiency. To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.
TT Motor Description: This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1") male connectors. Perfect for plugging into a breadboard or terminal blocks
TT Motor Feature: Rated Voltage: DC 3~6V Continuous No-Load Current: 150mA +/- 10% Min. Operating Speed (3V): 90+/- 10% RPM Min. Operating Speed (6V): 200+/- 10% RPM Torque: 0.15Nm ~0.60Nm Stall Torque (6V): 0.8kg.cm Gear Ratio: 1:48 Body Dimensions: 70 x 22 x 18mm Wires Length: 200mm 28 AWG Product Weight: 29g / 1.02oz
L298N Motor Drive Controller Board Module name : dual H bridge motor drive module Work mode : H bridge drive (double road) Main control chip : ST L298N dual H-bridge driver chip Logical voltage : 5V Drive voltage : 5v-35v Logical current : 0mA-36mA Driving current : 2A(MAX single bridge) Storage temperature : - 20 ℃ to + 135 ℃ Maximum power : 25W
Notes: 1. General Application: When your driver is 7V-12V, you can enable the on-board 5V logic supply. 2. When using the on-board 5V power supply, the + 5V power supply in the interface does not input voltage, but it can draw 5V voltage for external use. 3. Unconventional application of high-voltage drive: When the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.

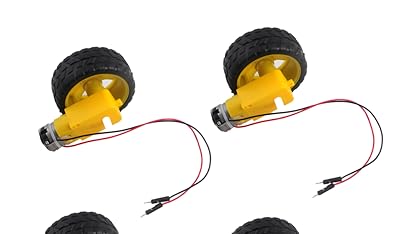

Package Includes: 4 X TT Motor DC Gearbox Motor With Wheel 1 X L298N Motor Driver Module
💕This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1”) male connectors.
💕TT Motor: with EMC, it has an anti-interference ability. Perfect for plugging into a breadboard or terminal blocks.
💕L298N as main driver chip makes strong driving ability, small heating, strong anti-interference, low calorific value. Dual-channel H-bridge driver working mode creates higher working efficiency. To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.

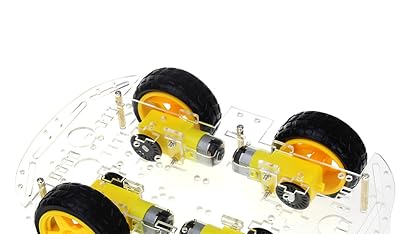

💕Used for electronic fans, electronic machinery, toys, cars, robots, arduino projects, etc.
Product description
TT Motor Description:
This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 2.54mm(0.1") male connectors. Perfect for plugging into a breadboard or terminal blocks
TT Motor Feature:
Rated Voltage: DC 3~6V
Continuous No-Load Current: 150mA +/- 10%
Min. Operating Speed (3V): 90+/- 10% RPM
Min. Operating Speed (6V): 200+/- 10% RPM
Torque: 0.15Nm ~0.60Nm
Stall Torque (6V): 0.8kg.cm
Gear Ratio: 1:48
Body Dimensions: 70 x 22 x 18mm
Wires Length: 200mm 28 AWG
Product Weight: 29g / 1.02oz

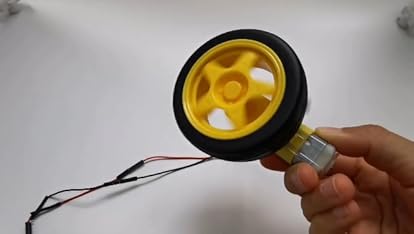

Wheel Feature:
Wheel diameter: 65mm
Wheel thickness: 26mm
L298N Motor Drive Controller Board
Module name : dual H bridge motor drive module
Work mode : H bridge drive (double road)
Main control chip : ST L298N dual H-bridge driver chip
Logical voltage : 5V
Drive voltage : 5v-35v
Logical current : 0mA-36mA
Driving current : 2A(MAX single bridge)
Storage temperature : - 20 ℃ to + 135 ℃
Maximum power : 25W
Notes:
1. General Application: When your driver is 7V-12V, you can enable the on-board 5V logic supply.
2. When using the on-board 5V power supply, the + 5V power supply in the interface does not input voltage, but it can draw 5V voltage for external use.
3. Unconventional application of high-voltage drive: When the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.
Package Includes:
4 X TT Motor DC Gearbox Motor With Wheel
1 X L298N Motor Driver Module
