Dash Cam Hardwire Kit USB-C with LED Screen, 12V-30V to 5V 3A 4m/13.12ft Hardwire Kit Adjustable Low Voltage Protection 24H Parking Monitoring Hardwire Power Cable with 8 Fuse Adapter

Visit the Range Tour Store

(3)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Brand	Range Tour
Special feature	Built-In Display, Adjustable Low Voltage Protection
Included components	Hardwire Kit
Mounting type	Windshield Mount
Product Dimensions	3.4D x 8.6W x 3.8H Centimetres
Item weight	250 Grams
Screen size	0.96 Inches
Are batteries included?	No
Compatible devices	Camera

About this item

Dash cam hardwire kit for car cameras Dash cam power supply installation kit hardwiring 5V adapter for dash cam USB C hardwire kit dash cam hardwire Fuse tap for dash cam Parking mode kit Low voltage protection Constant power supply for dash camera wiring harness 24-hour surveillance kit for car camera Dash cam battery discharge prevention Vehicle power cable for dash cam ACC ignition wire for dash cam cable kit.
Smart LED Display Screen: This hardwire power cable is equipped with an LED digital display screen, which displays the voltage of the battery and the set voltage, controls the voltage value of the car at any time, monitors whether the battery is operating normally, and protects the equipment.
Adjustable Low Voltage Protection: The 3-core Dashcam Hardwire Kit with the adjustable low voltage protection mechanism, allows you to freely set and adjust the voltage value to match the use condition of the car's battery ( There are 4 groups of defaulted voltage values: OFF, 11.8V, 12V, 12.4V ). Additionally, the Hardwire Kit will automatically cut off power when the voltage falls below the cutoff voltage, preventing the power from running out.
24-hour Parking Monitor: The Hardwire Kit connects with the fuse box and the vehicle's battery, providing a constant power supply for your dash cam. This feature ensures that your camera records continuously, even after the engine is turned off, thanks to the 24-hour parking monitor (Please ensure your dash cam supports parking mode).
Hidden Installation: The 4m/13ft cable Hardwire Kit's simply hidden wiring keeps the car neat and releases the cigarette lighter for connecting to more devices. The control box comes with adhesive on the back, which can be stuck to the top of the car windscreen, making it easy to adjust the voltage value. Note: If you are unsure of the circuit system we advise hiring a professional to do it.
Wide Compatibility: Input: 12V-30V; Output: 5V / 3A. This USB-C hardwire kit is compatible with most dash cams or other devices on the market. We still recommend that you inquire if your device is compatible with it before purchasing!

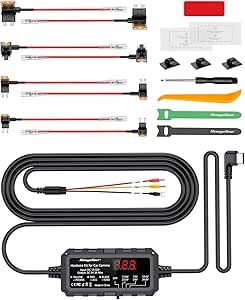

Package Contents: 1*4m/13ft USB-C hardwire kit, 8*Fuse tap cable (2*Mini /2*ATO / 2*Micro / 2*Micro2), 1*Wiring trim tool, 1*Opening toolbar, 3*Adhesive cable organizers, 2*Cable ties. Everything you need for the installation has been considered and included. Warm Tips: We suggest you test the hardwire kit before using it. When connecting the hardwire kit, please ensure the engine is off.

› See more product details

Report an issue with this product

Product information

Technical Details

Brand	‎Range Tour
Manufacturer	‎Range Tour
Place of Business	‎Range Tour
Part Number	‎Z6
Compatible Devices	‎Camera
Special features	‎Built-In Display, Adjustable Low Voltage Protection
Mounting Hardware	‎Hardwire Kit
Number of Items	‎5
Standing screen display size	‎0.96 Inches
Batteries included	‎No
Batteries Required	‎No
Type of cable or wire	‎USB
Mounting type	‎Windshield Mount
Manufacturer	‎Range Tour
Manufacturer reference	‎Z6
Product Dimensions	‎3.4 x 8.6 x 3.8 cm; 250 g
ASIN	‎B0F8VD29GK

Additional Information

Date First Available	May 16 2025
Customer Reviews	(3) 4.0 out of 5 stars
�鶹�� Rank	#89,134 in Electronics (See Top 100 in Electronics) #1,061 in Car On-Dash Mounted Cameras

Feedback

Would you like to tell us about a lower price?

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

Product Description

First, make sure your dash cam supports parking mode.

Range Tour Dashcam Hardwire Kit USB-C with LED Screen 5V/3A (also fits for 1-2A)

Range Tour Dash Cam Hardwire Kit USB-C Port, 5V/2.5A (also suitable for 1- 2A)

Once the car battery voltage is lower than 11.8V or 23.6V, it will cut the power supply, leaving enough power to ignite the engine.

Suitable for most vehicles, including SUVs, cars, trucks, and buses, Vans.

Please make sure your dashcam supports the 3-core (BAT / ACC / Ground) 24-hour Time-Lapse parking mode function on camera settings.

Dashcam captures and records footage at 1fps per second to conserve memory, allowing for continuous surveillance of a parked vehicle.

Troubleshooting Videos

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
ACC & BAT
Merchant video

Troubleshooting 1

How to determine whether a dash cam has a parking monitor function?

Make sure your dash cam has a parking monitor function in the dash cam settings menu; otherwise, do not purchase this hardwire kit.

Make sure the red, yellow, and black wires are properly connected before connecting the car camera for the hardwire kit to work.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Low Voltage Protection
Merchant video

Troubleshooting 2

Why did the dash cam stop working after a period of use?

When the car voltage is lower than 11.8V / 23.6V, 12V / 24V, 12.4V / 24.8V, the dash cam stops working, leaving enough power to start the engine.

Why can't the dash cam be activated by plugging in the red wire (ACC)?

The red wire(ACC) is a signal wire and the yellow wire(BAT) is the power wire.

If only the red wire (ACC) is connected, the dash cam cannot be turned on because the ACC wire is a signal wire used to detect whether the car is started or turned off.
Why can't the dash cam be activated by plugging in the yellow wire(BAT)?

If only the yellow wire (BAT) is connected, the dash cam can boot directly, but there is no signal to prove that the car is turned off, so the parking monitoring function of the dash cam cannot be activated.
Why doesn't it work after a period of use?

The Hardwire Kit comes with a sensitive voltage sensing switch, which will monitor the car battery voltage in real-time.

Once the voltage is lower than 11.8V or 23.6V, it will cut the power supply, leaving enough power to ignite the engine.

Range Tour, Your Reliable Driving Partner!

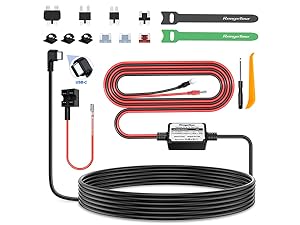

2-core Dash Cam Hardwire Kit	3-core Dash Cam Hardwire Kit	3-core Dash Cam Hardwire Kit
Length 4m / 13.12ft	Length 4m / 13.12ft	Length 4m / 13.12ft
Low Voltage Protection 11.6V / 23.6V	Low Voltage Protection 11.7V / 23.7V	Low Voltage Protection 11.7V / 23.7V
2-core Functionalities Equivalent to a car charger, replace it with a hidden cable.	3-core Functionalities The dashcam has a parking monitoring function.	3-core Functionalities The dashcam has a parking monitoring function.

2-core Dash Cam Hardwire Kit

3-core Dash Cam Hardwire Kit

Length

4m / 13.12ft

Length

4m / 13.12ft

Length

4m / 13.12ft

Low Voltage Protection

11.6V / 23.6V

Low Voltage Protection

11.7V / 23.7V

Low Voltage Protection

11.7V / 23.7V

2-core Functionalities

Equivalent to a car charger, replace it with a hidden cable.

3-core Functionalities

The dashcam has a parking monitoring function.

3-core Functionalities

The dashcam has a parking monitoring function.
