| Manufacturer | Qingping Technology (Beijing) Co., Ltd. |
|---|---|
| Part number | CGDN1 |
| Item Weight | 143 g |
| Product Dimensions | 6.4 x 4.6 x 5.5 cm; 143 g |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Item model number | CGDN1 |
| Is discontinued by manufacturer | No |
| Item Package Quantity | 1 |
| Batteries Included? | Yes |
| Batteries Required? | Yes |
| Battery Cell Type | Lithium Ion |
| Length | 6.4 Centimetres |
| Width | 4.6 Centimetres |
| Height | 5.5 Centimetres |
Videos for similar products
Product information
Additional Information
| ASIN | B092HK4BB1 |
|---|---|
| Customer Reviews |
3.8 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | June 4 2021 |
Feedback
Product Description
Monitor the CO₂ level of your office, ventilate in time to improve your working efficiency
Our breathing plays a major role of adding CO₂ into the indoor air, and when the CO₂ level is high in a small space such as a bedroom or an office, we will feel drowsy.
Monitor the temperature and humidity of the baby's room
Get to know the air quality of the baby's room, take actions in time to let the baby sleeps better.
Thousands of Breathings Every Day, Air Quality Matters a Lot
Clean and fresh air calls for your attention if you want your home to be healthy for you and your family. CO₂ has its reputation to show whether the air is fresh enough, and high level CO₂ would lead to drowsiness. The particles also matter, especially the fine dust particles such as PM2.5, may infiltrate into our cardiovascular system and lead to serious health consequences.
About the Measurement Accuracy of Temperature/Humidity
The typical accuracy of Qingping Air Monitor Lite is ±0.8℃/33.44℉ for temperature (when the practical temperature is 5~40℃/41~104℉) and ±8% RH for humidity (when the practical humidity is 20%~80% RH).
When the device is not fully charged, the heating caused by charging impacts the measurement accuracy of temperature and humidity to some extent.
To get accurate readings, the device should be fully charged first, then keep it plugged and place it somewhere windless for 30 minutes. In this case it can eliminate the heating interference from charging.
Please kindly note that the temperature and humidity monitored by the product may be inaccurate in a windy environment.
Features
Accurate and Fast Responding
- You can get the real-time data of PM2.5, PM10, CO2, temperature, and humidity from the display. Built-in sensors provide accurate and fast responding readings. You can reset the CO2 in Qingping+ app.
- Readings on the OLED screen are clear, easy to read.
Easy Operation
- Press the back button to power it on/off;
- Tap or slide the touch bar on the top to switch the readings, or, set the carousel in the Qingping+ app.
- Set the screensaver in Qingping+ app, then when you are not using it to check metrics, over some time it will show the time (please upgrade the firmware to the latest version first).
Remote Access and Historical Data
- Check the readings remotely in Qingping+ app, you can download it on Google Play Store or App Store. If using Apple Home app, a hub is needed for remote access, such as a HomePod, Apple TV (the 4th generation or newer);
- The latest 30-day data can be exported from Qingping+ app.
Rechargeable Battery
- Please set the "Auto-off While Using Battery" as "never" if you want to use it without power supply, or it will auto off once it is not charged for more than 10 minutes by default.
- The product shall be charged by a USB-C charging cable;
- We did not include a power adaptor inside the package, you could use common ones in your hand to charge for it.
Important Notes
1. The product CANNOT work with "Mi Home" app in the U.S or in Europe now.
2. HomeKit users need an Apple hub for remote access and automation, such as a HomePod mini/Apple TV.
3. We suggest to use Qingping+ app to upgrade the firmware before you first-time use, and we occasionally release new firmware to fix bugs.
Track CO2, PM2.5, PM10, Temp and RH, Get the Full Picture of Your Indoor Air Quality
Understand the IAQ on the screen, or remotely with Wi-Fi
Qingping Air Monitor Lite tracks 5 major factors, indicating the indoor air quality that impacts your health. The product works with Qingping+ app (iOS and Android) and Apple Home app. You can check the readings remotely, and have the 30-day historical data exported.
Measurement Range:
Temperature: 32°F ~ 104°F (0°C ~ 40°C), humidity: 0 ~ 99%RH (under non-condensation environment)
CO2: 400 ~ 9999 ppm
PM2.5/PM10: 0 ~ 500 μg/m³
Specifications
- Weight: 0.32 lb (132g)
- Size: 2.52'' x 1.81'' x 2.17'' (64 x 46 x 55 mm)
- Size of the display: 2.35'' x 1.96‘’ (59.9 x 49.9 mm)
- Bluetooth: BLE 5.0
- Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz
- Battery capacity: 2000mAh
- Charging port: USB-C
- Power input: 5V ⎓ 1A
Check the historical data of your home in APP
Step1: Add the Device to Home App
You can add the device to Apple's Home app by scanning the code, you can find the code on the back of the device.
Once the device is added successfully, you can check data in Home app; for remote access, an Apple home hub is needed.
Step2: Set Automation in Home App
In Home app, you can set automation based on different levels of CO2 and PM (for CO2, only "Detects High Carbon Dioxide" can be set to trigger automation, which is 2000ppm). You can also set automation based on specific readings of temperature or humidity.
Note: An Apple home hub is necessary for automation. Please upgrade your iPhone to iOS 15.1 or newer, and please also upgrade the software of the hub to the latest version.
Step3: Set the Device and Upgrade Firmware in Qingping+ App
You can set the device, upgrade firmware and export the latest 30-day historical records in Qingping+ app, which can be downloaded on App Store/Google Play.
If you have added the device in Apple's Home app, it will show in Qingping+ app automatically.

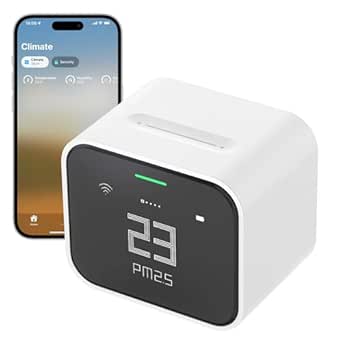

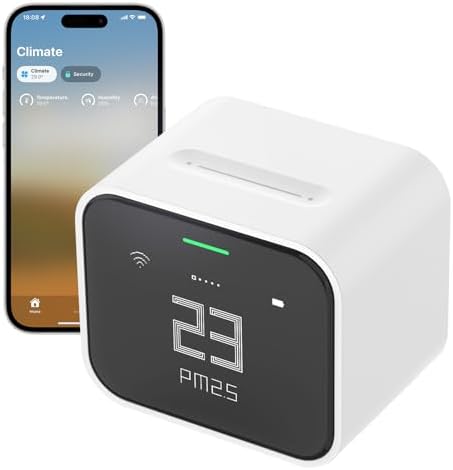

Qingping Air Monitor Lite
|
Qingping Air Monitor
|
|
|---|---|---|
|
|
||
| Customer Reviews |
591
|
— |
| Screen | OLED (with a touch bar at the top of the device) | IPS touch screen |
| Measured Objects | PM2.5, PM10, CO2, Temperature, Humidity | TVOC, PM2.5, CO2, Temperature, Humidity |
| Sensor Calibration | CO2 | CO2 and TVOC |
| Date, Time and Calendar | Does not support it | ✓ |
| Weather Forecast | Does not support it | ✓ |
| AQI | Does not support it | ✓ |
| Supports Apps | Apple's Home app, Qingping+ | Qingping+ |
| Connectivity | Wi-Fi connection | Wi-Fi connection |
