Product Description

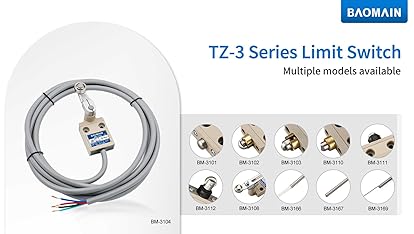

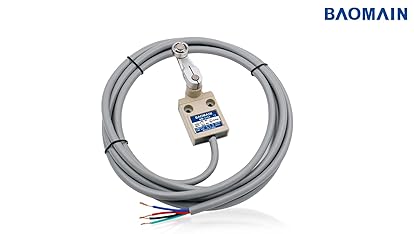

Sealed Limit Switch
Features:
Impact: The sealed limit switch housing is covered with reinforced PP material, waterproof, oil resistant, has higher mechanical strength and is impact resistant.
High Load Carrying Capacity: The sealed limit switch is made of thickened copper conductors and excellent silver contacts, with strong electrical conductivity, low resistivity, no arcing, stable performance, sensitive contacts and greater load carrying capacity.
Strong Sealing Performance: The seal limit switch has strong sealing performance, the front and rear cover and cylinder body adopt riveted and rolled package structure, the connection is.
High Toughness: This sealed limit switch has a smoother mechanical action, high toughness and high fatigue.
Wide Application: This sealed limit switch is widely used in conveyor belts, lifts, car parks, plastic processing machinery, self assembly machinery, packaging machinery, semiconductor manufacturing, stamping machinery, etc.
Specifications:
OF Maximum: 600 g / 21.16 oz(approx.)RF Minimum: 100 g / 3.53 oz(approx.)PT Maximum: 2mm / 0.08inOT Minimum: 5mm / 0.2inMD Maximum: 0.8mm / 0.03inOP (mm): 44±1.2FP: \
Operating Speed: 0.01mm to 50cm/sec (locking plug type)Frequency: Mechanical: 120 times/min, Electrical: 30 times/minContact: 15mΩ or less (initially)Insulation: 100mΩ or more (below 500VDC)Dielectric Strength: 1,000VAC, 50/60Hz for 1 minute between non continuous terminals, 1,500VAC, 50/60Hz for 1 minute between current carrying and non current carrying parts, 1,500VAC, 50/60Hz for 1 minute between terminals and earthVibration: Misfire Endurance: 10 to 55 Hz, 1.5 mm double amplitudeShock: Mechanical endurance: 1,000m/Sec² (approx. 100G'S), False action endurance: 300m/Sec² (approx. 30G'S)Ambient Temperature: When in use: -10°C ~ +80°C (no icing)Humidity: <95%RHOperating Life: Mechanical: Over 10,000,000 cycles (at rated OT value), Electrical: Over 500,000 cycles
