| Brand | SUNFOUNDER |
|---|---|
| Manufacturer | sunfounder |
| Model | DE-A-Pironman 5 |
| Model Name | Pironman 5 |
| Part Number | DE-A-Pironman 5 |
| RAM | 2 GB |
| Memory Type | DDR3 SDRAM |
| Hard Disk Size | 1 GB |
| OS | Raspberry Pi OS |
| Processor Brand | NVIDIA |
| Processor Type | Intel Core i9 |
| Hardware Platform | PC |
| Graphics Card Interface | AGP |
| Compatible Devices | Raspberry Pi 5 |
| Special features | Tower Cooler, Dual RGB Fans |
| Batteries included | Yes |
| Batteries Required | Yes |
| Battery Cell Composition | Lithium Metal |
| Total USB Ports | 1 |
| Human Interface Input | Keyboard |
| Material Type | Aluminum |
| Manufacturer | sunfounder |
| Item model number | DE-A-Pironman 5 |
| Product Dimensions | 15.49 x 13.46 x 9.4 cm; 380 g |
| ASIN | B0D5CTRSQK |
Product information
Additional Information
| Batteries | 1 Lithium Metal batteries required. (included) |
|---|---|
| Date First Available | May 31 2024 |
| Customer Reviews |
4.3 out of 5 stars |
| 鶹 Rank |
|
Feedback
Videos for similar products
Brand in this category on 鶹
Sponsored
Product Description
The Pironman 5 includes the Pi5 NVMe PIP (PCIe Peripheral Board), a PCIe adapter board specifically designed for NVMe solid-state drives. This board supports four sizes of NVMe SSDs: 2230, 2242, 2260, and 2280, all of which can be installed in an M.2 M key slot. The connection is certified for Gen 2.0 speeds (5 GT/sec), but can be forced to Gen 3.0 (10 GT/sec) for faster performance.
Compatible NVMe SSDs include:
ADATA Legend 700, 800, and XPG SX8200 Pro, Axe Memory Generic Drive, Crucial P2, P3, P3 Plus M.2, Inland PCIe NVMe SSD, KIOXIA EXCERIA and EXCERIA G2 NVMe SSD, Kingston KC3000, NV2, Lexar NM710, NM620, Netac NV3000, NV2000 NVMe SSD, Origin Inception TLC830 Pro NVMe SSD, Pineberry Pi Pinedrive (2280), PNY CS1030, Sabrent Rocket 4.0, Rocket Nano, Samsung 970 EVO Plus, 980, 980 Pro, Team MP33, Western Digital SN850, SN740, SN570, SN530, and Black SN750 SE (Phison Controller), and Blue SN550/SN580 series.
(If you know how to install the latest rpi-eeprom updates, pieeprom-2024-01-24.bin fixed the Western Digital Blue SN550 nvme boot issue.
Incompatible NVMe SSDs:
Due to compatibility issues, we recommend avoiding the following NVMe SSD drives equipped with a Phison controller:
Western Digital Green SN350 series,Black SN850 series, Black SN770, Inland tn446 nvme drive, Corsair MP600 SSD, Samsung PM991, Kingston OM8SEP4256Q-A0, Transcend 110Q (TS500GMTE110Q). Specifically, SN350 and SN570 prevent the Raspberry Pi 5 from booting at all.
The Detailed Online Tutorials can be found here: pironman5.rtfd.io. Online Tutorials Available in EN, ES,DE,FR,IT and JP.
Pironman 5
|

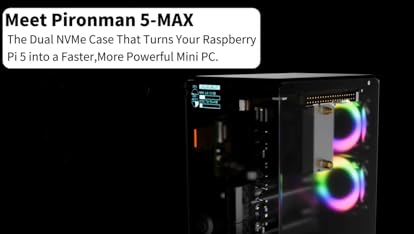

Pironman 5-Max
|
Pironman 5-Mini
|
|
|---|---|---|---|
| Customer Reviews |
756
|
292
|
130
|
| Compatible Devices | Raspberry Pi 5 2GB/4GB/8GB/16GB | Raspberry Pi 5 2GB/4GB/8GB/16GB | Raspberry Pi 5 2GB/4GB/8GB/16GB |
| Input | USB Type C, 5V/5A | USB Type C, 5V/5A | USB Type C, 5V/5A |
| Cooler | PWM Tower Cooler + RGB Fan x 2 | PWM Tower Cooler + RGB Fan x 2 | PWM Active Cooler + RGB Fan |
| HDMI Ports | 2 Standard HDMI Ports | 2 Standard HDMI Ports | 2 Micro HDMI Ports |
| Display | OLED | OLED | None |
| Support NVMe SSD | 1（ NVMe SSD 2230-2280） | 2（ NVMe SSD 2230-2280） | 1（ NVMe SSD 2230-2280） |
| IR Receiver | ✓ | ✓ | NO |
| Power Button | ✓ | ✓ | ✓ |
| Curriculum Link | pironman5.rtfd.io | pironman5.rtfd.io | pironman5.rtfd.io |
