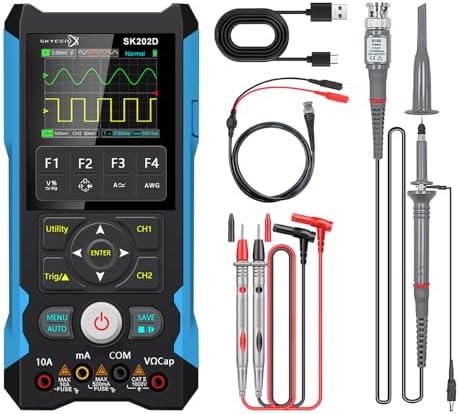

Oscilloscope Multimeter,SkyCenx SK202D 3 in 1 Handheld Oscilloscope Multimeter DDS Generator, 2 Channels, 80MHz Bandwidth, 200MSa/s Sampling Rate, 6000 Counts

Visit the SKYCENX Store

(5)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Brand	SKYCENX
Power source	Battery Powered
Style	Digital
Colour	Black
Specification met	CE, RoHS
Upper temperature rating	40 Degrees Celsius
UPC	782331265784
Manufacturer	E-ONE Science and Technology

About this item

▼ 【2 Channel Oscilloscope】 The oscilloscope features 80 MHz bandwidth, 200 MSa/s sampling rate, and an automatic measurement function. Its vertical sensitivity range is 10mV/div to 10V/div (via Input BNC). It supports measurement data waveform hold, capable of storing 2000 sets of data and 200 waveforms. Additional features include FFT mathematical operations, cursor measurement, persistence mode, and YZ mod
▼ 【6000 Counts Multimeter】AC Voltage: 0-750 V, DC Voltage: 0-1000 V, DC/AC Current: 0-10 A, Resistance: 0-60 MΩ, Capacitance: 0-99.99 mF, support continuity Measurement and On-Off Test
▼ 【Signal Generator】The signal generator supports three modes for precise waveform capture: Auto/Normal/Single. Additionally, the waveform output frequency can go up to 5 MHz (The sine wave range is 1 Hz to 5 MHz, the square wave range is 10 Hz to 1 MHz, and the triangle wave range is 10 Hz to 1 MHz) with a 1 Hz step, and supports 3 different waveforms.
▼ 【Supports Type-C Connection and Data hold and storage functions】The SK202D Oscilloscope Multimeter support Type-C connection to smart devices such as computers or tablets,Additionally,it features a data and waveform hold function during measurements, allowing it to store 2,000 sets of data and 200 wavaforms.
▼ 【Supports fast charging for extended usage time】The SK202D oscilloscope multimeter supports 15W fast charging, providing approximately 10 hours of usage time to meet your long measurement needs. Additionally, it has a built-in auto power-off function to save battery.
▼ 【Outstanding Design】The SK202D uses an FPGA+MCU+ADC hardware architecture and a 320×240 resolution TFT color screen instead of an LCD. Data and waveforms remain clearly visible in bright environments or at different angles, making it suitable for various everyday measurement needs.

› See more product details

Report an issue with this product

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

Product information

Technical Details

Manufacturer	‎E-ONE Science and Technology
Place of Business	‎4F 3TH BUILDING,NO.613HUAWEI ROAD,QIANSHAN INDUSTRY DISTRICT, Zhuhai,GUANGDONG,CHINA,519075
Part number	‎ET202D
Item Weight	‎880 g
Parcel Dimensions	‎23.5 x 18.01 x 4.5 cm; 879.97 g
Batteries	‎2 Lithium Ion batteries required. (included)
Manufacturer reference	‎ET202D
Colour	‎Black
Style	‎Digital
Power source type	‎Battery Powered
Measurement Accuracy	‎There are multiple values; please refer to the manual for details
Specifications	‎CE, RoHS
Included components	‎ET202D oscilloscope and all the accessories
Batteries Included?	‎Yes
Batteries Required?	‎Yes
Battery Cell Type	‎Lithium Ion

Additional Information

ASIN	B0DPWPWF3G
Customer Reviews	(5) 4.1 out of 5 stars
�鶹�� Rank	#90,126 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #114 in Lab Oscilloscopes
Date First Available	Dec 17 2024

Feedback

Would you like to tell us about a lower price?

Product details

Batteries ‏ : ‎ 2 Lithium Ion batteries required. (included)
Parcel Dimensions ‏ : ‎ 23.5 x 18.01 x 4.5 cm; 879.97 g
Date First Available ‏ : ‎ Dec 17 2024
Manufacturer ‏ : ‎ E-ONE Science and Technology
Place of Business ‏ : ‎ 4F 3TH BUILDING,NO.613HUAWEI ROAD,QIANSHAN INDUSTRY DISTRICT, Zhuhai,GUANGDONG,CHINA,519075
ASIN ‏ : ‎ B0DPWPWF3G
Manufacturer reference ‏ : ‎ ET202D
Country of origin ‏ : ‎ China
