| Manufacturer | LYCEBELL |
|---|---|
| Place of Business | LYCEBELL |
| Part number | LC-CA-7200APP |
| Item Weight | 280 g |
| Product Dimensions | 20.7 x 7.49 x 3.71 cm; 280.09 g |
| Item model number | 7200APP |
| Size | 40.27 cubic inches |
| Colour | Orange |
| Style | Digital |
| Power source type | Battery Powered |
| Item Package Quantity | 1 |
| Measurement Accuracy | &;±0.5% |
| Specifications | CE, RoHS, IEC Rated CAT III 600V |
| Included components | Clamp Meter |
| Batteries Required? | No |
| Length | 8.15 inches |
| Width | 2.95 inches |
| Height | 1.46 inches |
Videos for similar products
From the brand
LYCEBELL Technology Co.,Ltd.
LYCEBELL provide reliable support for scientific research, production and testing work in various industries around the world.
-
LYCEBELL instrumentation not only occupies a place in the domestic market, but also wins a good reputation in the international market. Its advanced technology and excellent quality make the products exported to all over the world, providing reliable support for scientific research, production and testing work in various industries around the world.
-
Industrial Instruments
-
Anemometer
-
Gas Monitor
-
Hot Sellers
Product information
Additional Information
| ASIN | B0F2H8626X |
|---|---|
| 鶹 Rank |
|
| Date First Available | July 21 2025 |
Feedback
Product Description

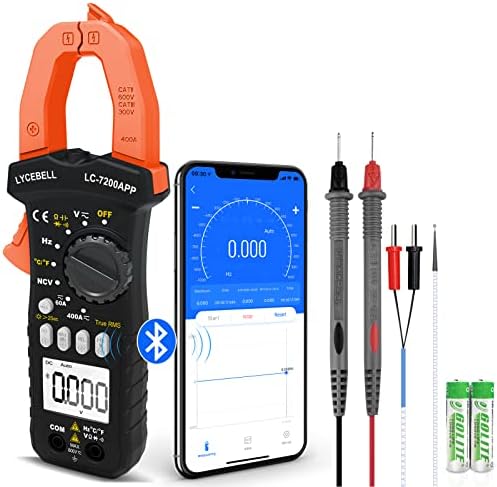

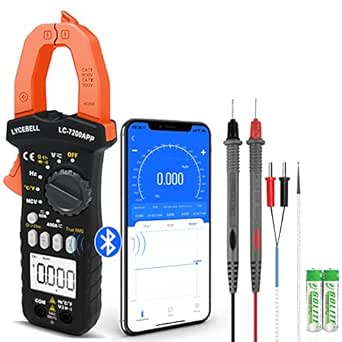

Common electrical parameters measurement: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle; along with special detection functions: temperature measurement, non-contact AC voltage detection, diode forward voltage drop testing, and continuity beep detection.
Connects to smartphones via Bluetooth (effective range: 10–15 meters). The app eliminates the limitation of traditional multimeters—where readings can only be taken on-site—making it ideal for remote monitoring scenarios. It also supports data recording, management, analysis, and sharing.
Dimensions: 207×75×37mm for easy portability; powered by two 1.5V AAA batteries (easy to replace). It features a design with large-scale IC A/D converters—paired with overload protection circuitry—that reduces the risk of damage and extends service life.
General Characteristics:
- Maximum Display: 6000 counts digit
- Measurement Principle: Dual-integrating A/D conversion
- Sampling Rate: 2–3 times per second
- Polarity Display: Negative polarity input displays ‘-’
- Over-Range Display: Displays ‘OL’ or ‘-OL’
- Safety Standards: This instrument complies with IEC-1010 safety standards for double insulation, pollution degree 2, and overvoltage categories CAT II 600V or CAT III 300V.
- Power supply: 2 x AAA 7# batteries
- Jaw opening: 26 mm
Testing Specifications:
- DC Voltage Range: 600mV/6V/60V /600V; Accuracy: ±(0.5% of reading+2 digits); Overload protection: 600V DC or AC rms
- AC Voltage (True RMS) Range: 6V/60V/600V; Accuracy: ±(1.0% of rdg + 3 digits); Overload protection: 600V DC or AC rms; Frequency Range: 40 to 2kHz
- DC Current Range: 60A/400A; Accuracy: ±(2.5% of rdg + 10 digits); Overload protection: 400A DC or AC rms
- AC Current (True RMS) Range: 60A/400A; Accuracy: ±(2.5% of rdg + 10 digits); Overload protection: 400A DC or AC rms
- Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ; Accuracy: ±(1.0% of rdg + 2 digits); Overload protection: 250V DC or AC rms
- Capacitance Range: 6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF; Accuracy: ±(3.0% of rdg + 10 digits); Overload protection: 250V DC or AC rms
- Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz; Accuracy: ± (0.1% of rdg + 5 digits)
- Duty cycle Range: 0.1%～99.9%; Accuracy: ± ( 2.0% of rdg + 2 digits ); Sensitivity: sine wave 0.6V rms; Overload protection: 250V DC or AC rms
- Temperature Range: -20℃~1000℃/-4℉~1832℉; NiCr-NiSi K-type sensor; Overload protection: 250V DC or AC rms
- Non Contact AC Voltage (NCV) Detection: Test voltage range: 90V～1000V AC rms; The lamp light will light up together with sound.
