  • Nano V3.0 Module Mini Nano Board ATmega328P CH340G Chip 5V 16MHz with USB Cable Compatible for Arduino 2pcs

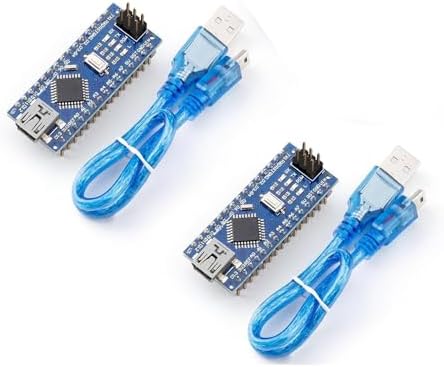

Nano V3.0 Module Mini Nano Board ATmega328P CH340G Chip 5V 16MHz with USB Cable Compatible for Arduino 2pcs

3.5 out of 5 stars (2)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
  • The Nano board has also many interfaces which is enough for most applications, such as 14 digital inputs and outputs and 8 analog inputs etc.It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
  • Nano is an ultra small Simple I/O platform based on open source code. Compared with the previous USB version Arduino Diecimila, Nano has a significant advantage in size, which can be used to develop electronic devices that require independent operation and interactive effects; It can also be used to develop interactive works that are connected to computers and work together with software such as Flash, Processing, Max/Mp, PD, VVVV, etc.
  • This module modifies Ft232RL to CH340G, which can be used on Windows 8, Windows 8.1, and Windows 10 systems. For Windows 7 and above systems, simply connect to the internet and the system will automatically search for drivers without the need for users to download them.
› See more product details

Product description

Technical parameters :
1.12 digital input / output port D2 to D13 2.8 analog inputs A0 ~ A7 3.1 pairs TTL level serial transceiver port RX / TX 4.6 PWM port , D3 , D5, D6, D9 , D10 , D11 5. Atmel ATmega328P - AU MCU 6 USB download and power 7. Support the external 5V ... 12V DC power supply 8. To support 9V battery powered 9 support ISP download Package included:
Nano Board*2 USB Cable Compatible*2

Product information

Technical Details

Brand ‎Hutomwua
Manufacturer ‎Hutomwua
Place of Business ‎Hutomwua
Model Name ‎Nano V3.0
OS ‎Arduino IDE
Processor Brand ‎Atmel
Processor Speed ‎16 MHz
Number of Processors ‎1
Compatible Devices ‎Personal Computer, Windows 8, Windows 8.1, Windows 10, Arduino IDE
Number of Items ‎2
Batteries Required ‎No
Total USB Ports ‎1
Connector Type ‎USB, UART
Manufacturer ‎Hutomwua
Parcel Dimensions ‎15 x 10 x 1.8 cm; 100 g
ASIN ‎B0F32C27HH

Additional Information

Date First Available March 31 2025
Customer Reviews
3.5 out of 5 stars (2)

3.5 out of 5 stars
鶹 Rank

Feedback

Nano V3.0 Module Mini Nano Board ATmega328P CH340G Chip 5V 16MHz with USB Cable Compatible for Arduino 2pcs

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product details

  • Parcel Dimensions ‏ : ‎ 15 x 10 x 1.8 cm; 100 g
  • Manufacturer ‏ : ‎ Hutomwua
  • ASIN ‏ : ‎ B0F32C27HH
  • Country/Region of origin ‏ : ‎ China
  • Customer Reviews:
    3.5 out of 5 stars (2)

Brands in this category on 鶹

Sponsored

Product Summary: Nano V3.0 Module Mini Nano Board ATmega328P CH340G Chip 5V 16MHz with USB Cable Compatible for Arduino 2pcs

From Hutomwua

3.5 out of 5 stars, 2 ratings

Customer reviews

Price

No featured offers available

Other sellers

Other sellers

About this Item

  • The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
  • The Nano board has also many interfaces which is enough for most applications, such as 14 digital inputs and outputs and 8 analog inputs etc.It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
  • Nano is an ultra small Simple I/O platform based on open source code. Compared with the previous USB version Arduino Diecimila, Nano has a significant advantage in size, which can be used to develop electronic devices that require independent operation and interactive effects; It can also be used to develop interactive works that are connected to computers and work together with software such as Flash, Processing, Max/Mp, PD, VVVV, etc.
  • This module modifies Ft232RL to CH340G, which can be used on Windows 8, Windows 8.1, and Windows 10 systems. For Windows 7 and above systems, simply connect to the internet and the system will automatically search for drivers without the need for users to download them.

Product description

Technical parameters : 1.12 digital input / output port D2 to D13 2.8 analog inputs A0 ~ A7 3.1 pairs TTL level serial transceiver port RX / TX 4.6 PWM port , D3 , D5, D6, D9 , D10 , D11 5. Atmel ATmega328P - AU MCU 6 USB download and power 7. Support the external 5V ... 12V DC power supply 8. To support 9V battery powered 9 support ISP download Package included: Nano Board*2 USB Cable Compatible*2
