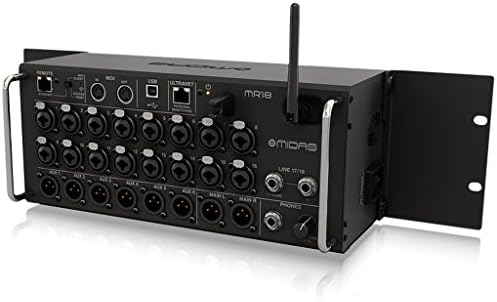

MR18

The Midas M32 completely redefined what is possible from a digital mixer – and thousands of users are enjoying the results. Now that technology has been incorporated into the small but powerful MR18 rack-mountable mixer, which will forever change the way you record and the way you play live music.

A Mixer Whose Time has Come

Over the past few years, the world of recording and performance audio has experienced a major paradigm shift, one that requires musicians and performers alike to take advantage of emerging technologies that offer flexibility and ease of use. The MR18 is an 18-input/8-bus portable mixer housed in a sturdy stage box design for use with iPad and Android tablets. It is ideally suited for both live and studio applications thanks to 16 award-winning Midas Pro mic preamps, integrated Wifi module for wireless control, MIDI I/O – and a multi-channel, bidirectional USB Audio Interface. Free iOS, Android and PC apps enable you to move about the venue or the tracking room and manipulate all the parameters of your mix, and the performers have the same freedom to dial-in their personal monitor mixes. Advanced engineering and meticulous design combine to deliver professional-grade performance and impressive affordability – the MR18.

16 Midas Pro Mic Preamps

The Midas Pro mic amp was developed for the PRO Series mixing consoles and is also found in the M32 – and has been recognised by leading live sound and recording engineers as the very essence of the famous Midas sound. It is here in the MR18 that more than 40 years of design excellence has come together with premium grade components to provide unparalleled warmth and depth, subtle ambience, and immaculate spatial positioning – for more precise imaging than competing models. The award-winning Midas microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic landscapes that have captivated audiences worldwide. MR18 comes equipped with 16 Midas Pro preamps, all of which are literally ready for your input via the Neutrik combo connectors with locking latches.

Built-In Tri-Mode Wifi Router

Designed for the ultimate in mobility, the MR18 comes with an integrated Wifi module for direct control of your mixer’s functions – without the need to setup and configure an external router. The MR18 gives you the freedom to focus on your mix, while allowing you to move about the venue to experience what every part of the audience is hearing. Plus you can adjust live monitor wedges from the artist’s perspective – or better yet, let them mix their own IEMs and floor monitors via their own tablets.

1. Access Point is the easiest way to connect up to 4 clients directly and concurrently (i.e., iPad, Android smartphone/tablet or laptop). This mode should have your remote control up and running in less than a minute.
2. Wifi Client allows you to add your mixer to the existing wireless network where the controlling apps and devices are connected.
3. Alternately, wired connections can be made directly to your PC, to a local area network (LAN), or when connecting to a dedicated Wifi router

Recording Simplified

The incredibly fast and comprehensive 18 x 18 channel, bi-directional USB interface makes the MR18 an amazingly powerful digital mixing solution for recording directly to your iPad or PC. Dial in the perfect monitoring mix with effects and zero-latency, while sending up to 16 source signals – and the keyboard player's MIDI notes to your DAW for recording and editing.

Whether you are making rock history in the studio, or you want to capture intimate live performances – it has never been easier to record stunning tracks with exceptional clarity.

Revolutionary Auto-Mixing

When your application calls for a multiple-microphone setup, such as an onstage panel discussion, press conference or courtroom proceeding, etc., it can become a challenge to maintain so many open mics – and preserve maximum gain and priority for the moderator.

A major first for compact audio mixers, our revolutionary M AIR Gain Sharing technology can easily manage fully automated mixes with up to 16 live microphones. Based on the legendary Dan Dugan automix system, the MR18’s gain sharing paradigm automatically controls the levels of all selected microphones in real time, without any gating artifacts or noise modulation.

This function dramatically reduces the typical feedback, studio noise and comb filtering challenges that can occur when two, or more mics are in close proximity of each another. M AIR Gain Sharing technology provides a consistent system gain structure, even when multiple speakers are talking at the same time.

4 Onboard M32 Effects Engines

Equipped with the very same FX engines as the now legendary M32 Digital Mixing Console, the onboard virtual FX Rack provides access to four true-stereo (8 mono), multi-effects processors including delay, chorus, dynamics – plus the MR18 can run production-quality, true-stereo reverbs concurrently with 31-band EQ on the main and aux buses, all without the need for any additional hardware.

You can select any combination of high-end simulations of legendary studio effects, such as the Lexicon 480L and PCM70, as well as the EMT250 and Quantec QRS reverbs. Onboard processing means your computer no longer has to do the heavy lifting during a mixing session with DAW plugins, as the MR18 has a whole studio of FX under its bonnet.

Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32 mix engine, ensuring flawless performance, flexible routing and the end of cable faults.

100-Band RTA for all Channel/ Bus EQs

The MR18 includes a high-resolution 100-band Real Time Analyzer (RTA), with full Bar and Spectrograph views. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time – capturing a sonogram window of a full 10 seconds.

Switch between the Large RTA view, displaying any available signal in full screen resolution, or the Combined RTA view shown above each of the channel and bus EQ curves – and see the results of your filtering choices. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the Main LR or Aux buses. Monitoring and controlling frequencies has never been easier!

16 Channels of Personal Monitoring

The easy way to send sound, Behringer's propriatary ULTRANET connectivity allows you to send 16 digital sources over a lightweight and easyto- deploy Cat 5e cable to P16-D Digital ULTRANET Distributors, or directly to P16-M Personal Monitor Mixers. This powerful and advanced technology makes it easy for individual performers to create their own “more me” mix – and frees you to put on your best show. ULTRANET also provides the perfect conduit for sending your mix to the new TURBOSOUND iQ Series loudspeakers, which can tap into the 16-channel digital bus directly.

Uncompromised Channel Processing

The MR18 allows you to achieve the same incredible level of EQ finesse as the award-winning M32 thanks to its 100-band Real Time Analyzer, which is built into every input channel and bus EQ. Visual feedback built into the control app allows you to see and make fast, surgical adjustments to frequencies in need of a boost or a cut. You will wonder how you ever EQ’d without it!

Every input channel also features Low-Cut, 4-band fully parametric EQ and the same Gate and Compressor dynamics suite found in the M32 – with one very special addition; you can choose either Expert or Simple functionality. In Expert mode, you can drill down and take total control over every nuance of your dynamics. Or, if you are more of the ‘plug and play’ type, Simple mode lets you either select from one of 4 carefullyoptimized presets – or load your own channel templates.

MIDI In/Out for Live Performance Controllers

The physical MIDI I/O port on the MR18 mixer can also be used for connecting external MIDI controllers, such as BEHRINGER's X-TOUCH or B-CONTROL products, for dynamically controlling channel level, muting and panorama adjustments during your performance. The installed firmware also supports the Mackie Control protocol, allowing you to easily apply comprehensive remote editing and parameter adjustments via any compatible MIDI device.

Dedicated Apps and Software ֠All Platforms Covered

Since we wanted the MR18 to benefit from the best remote apps, we engaged dedicated development teams for the iOS*, Android*, and PC/Linux/Mac* based remote control applications. When you download an M AIR app for your operating system, you can rest assured that you will get the fully optimized experience we intended. Future firmware updates will be available free of charge and add even more professional-grade features, FX "Plug-Ins", and functionality.

M AIR EDIT (PC/Mac/Linux)

If your application requires a computer for Midas M Air mixer remote control, then M AIR EDIT was made just for you. Simply copy and launch the free software with your computer, connect to the mixer via its built-in Ethernet (LAN) connector using a Cat 5e cable (max. 100 m length) – and all M AIR mixer functions are instantly mirrored on your computer screen. Since a PC screen is larger than the one on your telephone, M AIR EDIT allows the opening and scaling of more app windows, such as routing or FX editing – letting you decide how much information you need at a glance. All touch screens are supported, or you can use a mouse to adjust your physical mixer’s settings. You can even control multiple mixers remotely from a single computer, or create several strategically placed computer stations to control the same mixer. With M AIR EDIT, your PC, Linux or Mac computer becomes your virtual mixer – both live and in the studio.

M AIR MIX for iPad

Front of House is wherever you and your iPad are – thanks to the new M AIR MIX app for iPad. Simply download the free app to your iPad, set the Midas M Air mixer to Access Point mode and connect your iPad to the MR18 network that will show up. After launching the M AIR MIX app, select the mixer image, and all of your M AIR mixer’s settings can now be adjusted directly from your iPad. You can save your favorite scenes, and load previously stored scenes and presets to/from your iPad or customize your channel layout – all with the support of innovative drag 'n' drop functionality.

M AIR MIX for Android

Designed specifically for all Android mobile devices (2.2 or higher), which includes tablets and smartphones, the app can be used in one of two modes: full access mixing mode; or bound to a specific aux bus for creating personal monitor mixes remotely on Midas M Air mixers. Using this free and easy to learn app, each performer can use their Android device to dial-in the perfect personal IEM or wedge monitor mix, without having to consult the audio engineer for assistance. With the M AIR MIX App for Android, personal monitor mixing just got a whole lot more personal – both live and in the studio! But M AIR MIX offers even more; in full access mixing mode, the app provides control over all channel processing including the RTA overlay, effects editing, storing/loading scenes or presets, and much more – whether you are running a 12" tablet or a 5" smartphone.

Superb Value

The feature-packed MR18 is the result of the engineering, manufacturing and application expertise of legendary console manufacturer Midas, the iconic signal processing genius of Klark Teknik– and MUSIC’s unique ability to deliver a superior value proposition. MR18's sound quality far surpasses that of competing models, both on paper and in performance. With 18 inputs, 16 Midas Pro mic preamps, 6 aux buses, a built-in Wifi router, MIDI I/O, a multi-channel bidirectional USB audio interface, and free downloadable apps for iOS, Android and PC, and a host of other high-end professional features, the M AIR MR18 is equipped to handle your most demanding audio application.
