| Manufacturer | Rigol |
|---|---|
| Part number | RIGOL DS1202Z-E |
| Item Weight | 2.89 kg |
| Product Dimensions | 31.31 x 16.08 x 12.24 cm; 2.89 kg |
| Item model number | DS1202Z-E |
| Is discontinued by manufacturer | No |
| Size | 61.26 liters |
| Colour | White |
| Style | Sleek |
| Power source type | Corded Electric |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Length | 31.3 Centimetres |
| Width | 16.1 Centimetres |
| Height | 12.2 Centimetres |
Frequently bought together

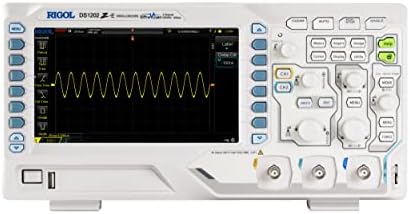

This item: RIGOL DS1202Z 200 Megahertz 2 Channel Digital Oscilloscope Digital Waveform Multimeter Basic Realtime Visualization and Analysis with 7 Inch Display
$535.79
Get it Feb 26 - Mar 2
Only 6 left in stock.
+
$31.95
Get it by Wednesday, Feb 25
In Stock
+
$208.38
Get it Feb 25 - 27
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product information
Additional Information
| ASIN | B07XSH2NR2 |
|---|---|
| Customer Reviews |
4.7 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | Oct. 29 2019 |
Feedback
Product Description
RIGOL Digital Oscilloscope DS1000Z-E Series
The 1000Z Series is RIGOL’s Digital Oscilloscope platform for Basic Visualization. It offers unprecedented value and capability in a 2 channel oscilloscope with 100 and 200 MHz models with a 7 inch display and RIGOL's UltraVision technology. Some models include generators and digital channels.
Innovative UltraVision Technology(Analog Channel)
- Deep Memory Depth (up to 24 Mpts, std.)
- Higher Waveform Capture Rate (up to 30,000 wfms/s)
- Real-time Waveform Recording&Playback (up to 60,000 frames)
- Intensity Graded Color Display
- Fine delayed sweep function
- Multiple waveform math operation functions
- Pass/fail test function
- Standard interfaces: USB Device, USB Host, LAN and Aux
Main Features
- 1 GSa/s real-time sample rate
- up to 24 Mpts standard memory depth
- 2 analog channels
- Bandwidth of 200 MHz and 100 MHz
- 30,000 wfms/s max waveform capture rate
- Real-time hardware waveform recording and playback functions; up to 60,000 frames of a waveform can be recorded
- Intensity graded color display
- Low noise, 1 mV/div to 10 V/div vertical dynamic range
- 7.0-inch WVGA (800*480) TFT LCD, with wide screen format, vivid picture, low power consumption, and long service life
- Up to 15 trigger types, including various protocol triggers
- Parallel decoding and multiple serial decodes functions standard
- Auto measurement of 37 waveform parameters (with statistics)
- Ethernet and USB Communication
- FFT functions using display or memory data
- Adjustable waveform brightness
- Auto setting of waveform display
Waveform Refresh Rate of 30000 WFMS / S
30,000 Waveforms per second waveform refresh rate makes it easier to catch infrequent signal anomalies
24m Storage Depth
Standard 24 MPts memory depth (in 1 channel mode) allows the user to give full consideration to the overall signal details, while maintaining a high sampling rate for a longer period of time. Zoom in to view small signal details in the complete waveform record.
Hardware Waveform Recording and Playback
Record up to 60,000 frames of a dynamic signal and play them back like a movie for analysis and training. Locate infrequenct issues over long time periods and go directly to the issue.
Serial Bus Triggering and Decoding
Decode and trigger on serial bus systems including RS232, UART, I2C, and SPI all from the Oscilloscope's display. Gather data in hex, binary, or ascii and export to an event table for further analysis.
DS1102Z-E
|
DS1202Z-E
|
DS1054Z
|
DS1000Z-BAG
|
|
|---|---|---|---|---|
|
|
|
|
||
| Customer Reviews |
57
|
— |
— |
81
|
| Analog BW | 100 MHz | 200 MHz | 50MHz | RIGOL Instrument Carry Bag for DS1000Z, DS1000Z-E, and DS1000Z Plus Oscilloscopes |
| Number of Analog Channels | 2 | 2 | 4 | no data |
| Max. Real-time Sample Rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel) | 1 GSa/s (single-channel), 500 MSa/s (dual-channel) | 1 GSa/s(sigle-channel), 500 MSa/s(dual-channel), 250 MSa/s(three/four-channel) Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) | no data |
| Max. Memory Depth | standard 24 Mpts (single-channel), 12 Mpts (dual-channel) | standard 24 Mpts (single-channel), 12 Mpts (dual-channel) | standard 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel) Digital channel: standard 24 Mpts (8-channel), 12 Mpts (16-channel) | no data |
| Max. Waveform Capture Rate | 30,000 wfms/s | 30,000 wfms/s | 30,000 wfms/s | no data |
| Hardware Real-time Waveform Recording and Playback Functions | Up to 60,000 frames | Up to 60,000 frames | Up to 60,000 frames | no data |
| Standard Probes | Two PVP3150 150 MHz passive HighZ probes | Two PVP2350 350 MHz passive HighZ probes | 4 sets of PVP3150 150 MHz Passive HighZ Probes | no data |
