| Product Dimensions | 37 x 9.7 x 5.4 cm; 1.19 kg |
|---|---|
| Item model number | Pedalboard |
| Colour Name | White |
| Connector Type | 1/4 inch (6.35mm) audio jack |
| Hardware interface | 1/4-inch Audio |
| Signal format | Digital |
| Power Source | Corded Electric |
| Voltage | 9 Volts (DC) |
| Item Weight | 1.19 kg |
-
-
-
-
-
-
-
VIDEO -
Image Unavailable
Colour:
-
-
-
- To view this video, download
MOOER L6 MKII Guitar Multi Effects Pedalboard Pedal Controller Bass Pedal Switcher
Purchase options and add-ons
| Brand | MOOER |
| Style | Loop Switcher |
| Colour | White |
| Product Dimensions | 2.46L x 1.37W x 0.37H Meters |
| Item weight | 1.19 Kilograms |
| Voltage | 9 Volts (DC) |
| Amperage | 300 Milliamps |
| Audio output effects | Boost, Overdrive, Distortion, Modulation, Delay, Reverb |
| Controls type | Push Button, Knob |
| Power source | Corded Electric |
About this item
- MOOER L6 MKII Programmable loop switcher with 6 loops, the Pedal Controller L6 can enhance and control even the most robust pedal and multi-effects setups.
- The L6 MKII has a pre-position buffer (BUF-F) and post-position buffer (BUF-B) available for activation which will minimize signal attenuation and result in minimum tone loss in the guitar signal.
- Two modes of operation: PLAY mode and LIVE mode. The PLAY mode allows the user the option of utilizing the footswitches to recall up to 36 saved presets. By choosing LIVE mode, the L6 MKII can function as a traditional pedalboard with each footswitch able to quickly toggle on/off the corresponding loop.
- In addition to two play modes, the L6 also has the choice of a pre- or post- signal buffer to choose from to reduce impedance caused by instrument cables or other electronic interference.
- Other bonus features: Dedicated MUTE footswitch; Includes built-in tuner and supports external tuner; Footswitch LED for each loop make it fast and easy to see which loops are activated; Large LED display panels allows you read easily from a distance.
Additional details
Frequently bought together

Videos for similar products
Brand in this category on 鶹
Product information
Technical Details
Additional Information
| ASIN | B092D4SJY9 |
|---|---|
| Customer Reviews |
4.3 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | June 10 2021 |
| Manufacturer | Shenzhen MOOER Audio Co., Ltd. |
Feedback
Product Description
| LOOP | Programmable loop switcher with 6 loops. |
| BUFFER | The L6 MKII has a pre-position buffer (BUF-F) and post-position buffer (BUF-B) available for activation which will minimize signal attenuation and result in minimum tone loss in the guitar signal. |
| PLAY/LIVE | Two modes of operation: PLAY mode and LIVE mode. This allows the user the option of utilizing the footswitches to recall up to 36 saved presets or activate pedal loops individually in a traditional manor. |
| FAST | Footswitch LED for each loop make it fast and easy to see which loops are activated. |
| MUTE | Dedicated MUTE footswitch |
PLAY MODE
By choosing PLAY mode, the user can save and recall up to 36 preset configurations that allow for the simultaneous engagement/ disengagement of multiple loops with the press of one footswitch.
LIVE MODE
By choosing LIVE mode, the L6 can function as a traditional pedalboard with each footswitch able to quickly toggle on/off the corresponding loop.
TUNER MODE
Other bonus features for the L6 include a built-in tuner, dedicated mute switch, and large LED display panels to read easily from a distance.
PCL6 MKII Includes built-in tuner and supports external tuner.
In addition to two play modes, the L6 also has the choice of a pre- or post- signal buffer to choose from to reduce impedance caused by instrument cables or other electronic interference. Without the buffer engaged, the L6 will operate in true bypass. Other bonus features for the L6 include a built-in tuner, dedicated mute switch, and large LED display panels to read easily from a distance.
Specification
- Input: 1/4"monaural jack (impedance: 2M Ohms)
- Output: 1/4"monaural jack (impedance: 4.7k Ohms)
- Power Requirements: AC adapter 9V DC (center minus plug) 300mA, MOOER Power Supply is recommended
- Current Draw: 300mA
- Dimensions: 370mm (D) x 97mm (W) x 54mm (H)
- Weight: 1.15kg
- Accessories: Owner's Manual
A7 Ambiance
|
D7 Delay
|

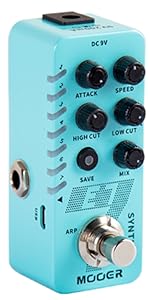

E7 Synth
|
