| Manufacturer | KNIPEX Tools LP |
|---|---|
| Place of Business | BUFFALO GROVE, IL, 60089 US |
| Part Number | 09 12 240 |
| Product Dimensions | 23.75 x 5.46 x 2.41 cm; 451.32 g |
| Item model number | Knipex - 09 12 240 |
| Is discontinued by manufacturer | No |
| Size | One Size |
| Colour | Multi |
| Style | Pliers |
| Finish | Brushed |
| Material | Blend |
| Pattern | Solid |
| Shape | Rectangular |
| Power Source | hand_powered |
| Item Package Quantity | 1 |
| Number of Pieces | 1 |
| Number of Handles | 2 |
| Handle Material | Plastic |
| Certification | DIN ISO 5746 ASME B107.20 |
| Usage | ['Pulling', 'Cutting', 'Gripping'] |
| Included Components | High Leverage Lineman's Pliers w/ Fish Tape Puller & Crimper |
| Batteries Included? | No |
| Batteries Required? | No |
| Item Weight | 451 g |
| Country of origin | China |
Frequently bought together
This item: Knipex 09 12 240 9.5-Inch Ultra-High Leverage Lineman's Pliers with Fish Tape Puller and Crimper
$80.20
Get it by Saturday, Nov 22
In Stock
+
$68.23
Get it by Saturday, Nov 22
In Stock
+
$94.99
Get it by Tuesday, Nov 25
Only 6 left in stock (more on the way).
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
From the manufacturer
Knipex Quality - Made in Germany
Ultra-High Leverage Lineman's Pliers - Comfort Grip.
The rivet size has been reduced and moved closer to the jaws to create a ultra-high leverage design

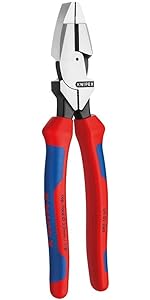

09 12 240 Lineman's Pliers, 9 1/2-Inch
At a Glance:
- High transmission ratio for easy cutting
- Effective cross-hatched knurled gripping zone in the jaws
- Additional serrated gripping zone below the articulated joint for powerful leverage
- Cutting edges for soft, hard and ACSR wire
09 12 240, 9 1/2-Inch High-Leverage New England-Style Lineman's Pliers
Knipex Tools redesigned Lineman’s Pliers are heavy-duty for the most demanding jobs. The rivet has been reduced in size and moved closer to the jaws to create an ultra-high leverage design for 25% easier cutting power. The cutting edges are induction hardened with a cutting edge hardness of approximately 64 HRC for long life and easy cutting of soft, hard and ACSR wire. Additionally, they feature a serrated cross-hatched knurled gripping zone in the jaws for gripping and pulling (such as for fencing applications). There is an additional gripping zone below the joint for strong gripping of wires and pulling nails. Select models also include a universal terminal crimper and a fish tape puller on the backside. Our Lineman's Pliers are forged from vanadium electric steel and are available in dipped, multi-component grip and 1000V insulated handles.
The back recess has an oval shaped design which works better on thicker, round or oval shaped cable
Specifications:
- Cutting capacity: Up to 3/16-inch nail and wire pin; 1/8-inch wire rope strand and steel wire
- Length: 9-1/2 inches
- Weight: 16.6 ounces
- Handles: Comfort Grip
Quality in Every Detail
Sometimes we give our pliers a really hard time. We try to destroy them to find out what makes them good and long-lasting. Because we don't want to leave anything to chance, we take a long, careful look.
The steel Knipex uses is precisely hardened with a maximum of 0.8 percent carbon and defined parts of chromium and vanadium, guaranteeing optimum cutting performance and service life — even though it requires special production and costs a bit more. But our high product demands require this.
Knipex also looks closely at the small details. The angles, the sharpness, the hardness, the toughness of the cutting edges. The precision and smooth movement of the joint. The handle design and the finish. We keep reviewing these subjects, we research, we test, and we improve our pliers.
High transmission ratio for easy cutting
Effective cross-hatched knurled gripping zone in the jaws
Additional serrated gripping zone for powerful leverage
Select models feature a crimper and fish tape puller
