| Brand | innomaker |
|---|---|
| Manufacturer | innomaker |
| Model | InnoMaker Rasp Pi HiFi DAC Hat |
| Model Name | InnoMaker Rasp Pi HiFi DAC Hat |
| Part Number | RPI-HIFI |
| Hardware Platform | Raspberry Pi |
| Hardware interface | 3.5mm Audio |
| Compatible Devices | Raspberry Pi 4, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi 3B, Raspberry Pi 3B+ |
| Number of Items | 1 |
| Audio output mode | Stereo |
| Speaker surround sound channel configuration | Stereo |
| Batteries included | No |
| Batteries Required | No |
| Wireless Standard | Infrared |
| Signal-to-noise ratio (dB) | 112 dB |
| Material Type | Crystal |
| Has auto-focus | No |
| Has Programmable Buttons | No |
| Manufacturer | innomaker |
| Item model number | InnoMaker Rasp Pi HiFi DAC Hat |
| Parcel Dimensions | 12.9 x 8.9 x 4.7 cm; 60 g |
| ASIN | B07D13QWV9 |
Customers who viewed this item also viewed
Page 1 of 1 Start again
- I2S Interface Pifi DAC PCM5122 DAC + HiFi DIGI Digital Audio Card Analogue Output Signal for Raspberry Pi B+ / 2 Model B / 3B (64-bit)FREE Shipping by 鶹Get it by Wednesday, Feb 18Only 4 left in stock.
- Raspberry Pi HiFi DAC HAT PCM5122 DAC HAT Audio Card Expansion Board for Raspberry Pi 4, 3 B+, 3 B, 2, B+, Pi Zero/Zero WFREE Shipping by 鶹Get it by Sunday, Feb 15Only 3 left in stock.
- Digital Audio Card, HiFi DIGI Digital Audio Card Insulated Power Supply for 3 Model B / 2B / BFREE Shipping by 鶹Get it by Wednesday, Feb 18Only 1 left in stock.
Product Description

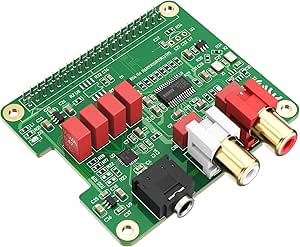

InnoMaker HiFi DAC Audio Hat for Raspberry Pi
- The Innomaker HiFi DAC Hat maybe the best optimized partner for Raspberry Pi audio output.
- Used on-board PCM5122 as the IIS clock master, instead of the clocks from RPI which comes with too much jitter.
- Added dual low jitter oscillators(45.158M and 49.152M) to support more exact sample rate clocks.
- No soldering, no additional cables. Just plug it in and do some simple configuration,
- You would get a high-class music player which is low-cost.
TI PCM5122 Chipset
Audiophile Texas Instruments 32bit/384KHz DAC PCM5122
- DAC SNR is 112Db.
- DAC THD+N @ -1 dBFS -78dB.
- Full Scale Output of DAC is 2.1Vrms.
- Dynamic Range of DAC is 112dB.
- Sampling Frequency ranges from 8kHz to 384kHz.
- Ultra-low noise voltage regulators for optimal audio performance.
TPA6130A2 Amplifier
Stero Directpath Headpfone Amplifier TPA6130A2
- Integrated EEPROM for automatic configuration(Option).
- Automatically switching frequencies according to the input I2S signals.
- Dual low jitter crystal oscillators for Master Clock generation.
- Infrared remote control connector (using GPIO26).
- DAC output coupled with Film capacitor.
40-Pin Connector
Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+, A+, A with the 40-pin connector.
RCA Output
Gold Plated RCA output connector
3.5mm Audio Jack
High-quality 3.5mm stereo audio jack. With 138mw headphone Amplifier can directly drive headphone.
High Precision Oscillators
45.1584M and 49.152M two hight precision oscillators
WIMA Capacitance
German WIMA professional-level film capacitance
Note:
- In “Output” setting page, must seleted Output Device/DAC Model: Allo BOSS.
- We use two low jitter oscillators (45.158M and 49.152M) on-board to support more exact sample rate. It's way better than many other DAC module. If you make wrong driver setting, the dac module may play abnormal (for example: playback at double speed via HiFi-Berry driver).
[ Key Features: ]
- Dedicated 384kHz/32bit high-quality DAC PCM5122 for best sound quality.
- Audio output connectors: 2x RCA (LEFT &Right) &3.5mm head phone Jack.
- With 138mw headphone Amplifier can directly drive headphone.
- Work status indicators facilitate the understanding of the system working status.
- DAC SNR is 112Db.
- DAC THD+N @ -1 dBFS -78dB.
- Full Scale Output of DAC is 2.1Vrms.
- Dynamic Range of DAC is 112dB.
- Sampling Frequency ranges from 8kHz to 384kHz.
- Ultra-low noise voltage regulators for optimal audio performance.
- Integrated EEPROM for automatic configuration(Option).
- Automatically switching frequencies according to the input I2S signals.
- Dual low jitter crystal oscillators for Master Clock generation.
- Infrared remote control connector (using GPIO26).
