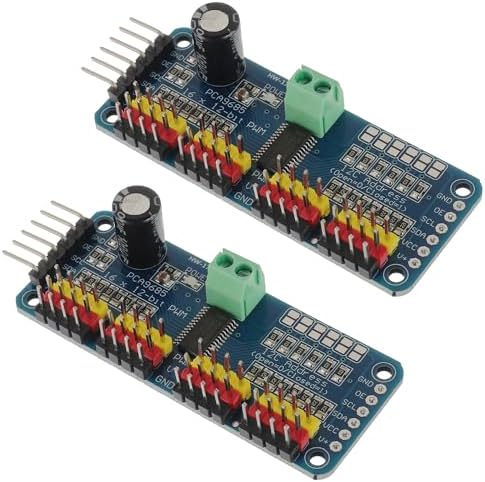

  • HUAREW PCA9685 16 Channel PWM Servo Driver Board 12 bit IIC Interface Module Compatible with Arduino and Raspberry Pi (2pcs)

PCA9685 16 Channel PWM Servo Driver Board 12 bit IIC Interface Module Compatible with Arduino and Raspberry Pi (2pcs)

4.6 out of 5 stars (29)
鶹's Choice highlights highly rated, well-priced products available to ship immediately.
鶹's Choice
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • PCA9685 contain an I2C communication PWM driver with a built in clock, so you do not need to continuously send it signal tying up your microcontroller
  • Green power indicator lamp, 3 pin connectors in groups of 4, so you can plug in 16 servos at one time(servo motor plug slightly wider than 0.1 inch)
  • Green power indicator lamp, 3 pin connectors in groups of 4, so you can plug in 16 servos at one time(servo motor plug slightly wider than 0.1 inch)
  • 12 bit resolution for each output for servos, that means about 4us resolution at 60Hz update rate
  • PCA9685 IIC module 5V compliant, you can also control it from a 3.3V microcontroller and still safely drive up to 6V outputs
› See more product details

Frequently bought together

This item: HUAREW PCA9685 16 Channel PWM Servo Driver Board 12 bit IIC Interface Module Compatible with Arduino and Raspberry Pi (2pcs)
$19.99
Get it by Monday, Mar 2
In Stock
Sold by HUAREW and ships from 鶹 Fulfillment.
+
Miuzei MG90S 9G Micro Servo Motor Metal Geared Motor Kit for RC Car Robot Helicopter, Mini Servos for Arduino Project (10)
$39.99
Get it by Monday, Mar 2
In Stock
Sold by Miuzeipro and ships from 鶹 Fulfillment.
+
Elegoo 120pcs Multicolored Dupont Wire 40pin Male to Female, 40pin Male to Male, 40pin Female to Female Breadboard Jumper Wir
$12.99
Get it by Monday, Mar 2
In Stock
Sold by ELEGOO Official CA and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Product description

PCA9685 16 channel 12 bit PWM servo driver with a built in clock

Technical Parameters:
Model: PCA9685
Resolution: 12 bit
Voltage: DC 5-10V
Frequency: 40-1000Hz
Channel Number: 16 channel
Communication Interface: IIC

：
The PCA9685 chip can be used to make DIY robots,or use PWM output to drive many LED indicator lights. So This PCA9685 16 Channel 12 Bit PWM Servo Driver can provide great assistance when the insufficient PWM output pins for the MCU in your project

Features:
1.Compatible with Arduino and Raspberry Pi
2.Output enable pin to quickly disable all the outputs
3.Reverse polarity protection on the terminal block input
4.The PCA9685 chip is wrapped in the center of the board
5.I2C input, control 16 PWM output, you can control the 16 way servo motor

Cascade design:
V + line to place a large capacitor, the maximum external input voltage depends on the 10V 1000uf capacitor.All PWM output lines have a 220 ohm series resistor protection and can easily drive LED

Package Includeds:
2 pieces * PCA9685 16 channel 12 bit PWM servo driver

Product information

Technical Details

Operating temperature ‎85 Degrees Celsius
UPC ‎791162195252
Manufacturer ‎HUAREW
Type of Guarantee ‎no
Batteries Required ‎No
Included components ‎no

Additional Information

ASIN B0CRV3MK14
Customer Reviews
4.6 out of 5 stars (29)

4.6 out of 5 stars
鶹 Rank
Date First Available Jan. 9 2024
Manufacturer HUAREW
Place of Business no
