Manufacturer | HQUA |
---|---|
Item model number | 120VAC |
Product Dimensions | 30.48 x 30.48 x 12.7 cm; 4.98 kg |
ASIN | B07YY7T5NT |
Learn more
No featured offers available
We feature offers with an Add to Cart button when an offer meets our high standards for:
- Quality Price,
- Reliable delivery option, and
- Seller who offers good customer service
-
-
-
-
-
-
-
VIDEO
-

Image Unavailable
Colour:
-
-
-
- To view this video, download

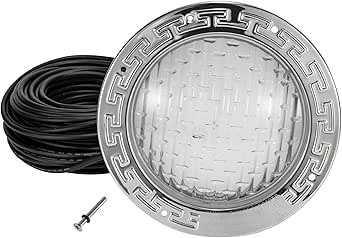

HQUA PN01 120V AC LED Inground Pool Light, 10 Inch 40W with 100 Feet Cord, UL Listed Transformer Included, 6500k Cool White, Fit for 10" Large Wet Niches.
Brand | HQUA |
Colour | White |
Material | Stainless Steel |
Style | Modern |
Light fixture form | Close to Ceiling |
Room type | Game Room |
Product Dimensions | 25.4L x 25.4W x 10.2H Centimetres |
Specific uses for product | In-Ground Pool |
Indoor/Outdoor usage | Outdoor |
Power source | AC |
About this item
- 6500K Pure cool white LED pool light. Great option to replace the pool lights existed. This model PN01 pool light contains face ring, pilot screw, led light assembly, 100’ electric cord, and 120V AC to 12V DC transformer UL listed. Fit for large 10” standard wet niches.
- This is an all-in-one LED light. All SMD LEDs are soldered in the light fixture. No place and no need to disassemble the light and install a bulb in it. You could either use the old electric cords (2C 18AWG) or our new cords in the installation.
- Excellent Electrical Safety, SELV and Dual waterproofing. The UL listed transformer changes 120V AC into 12V DC which is 100% safe for the human body. Dual waterproofing, the fixture shell is waterproof. The SMD LEDs are waterproof since they are sealed by a special transparent layer.
- Installation: A wet niche/housing needed. Fit for standard 10 inch wet niche with a 12 o'clock pilot screw and 6 o'clock notch. We list the most popular niche/housing models in the below product description. Light Fixture Size: 10“✖4”✖3“, 10" diameter of the face ring, 4" diameter of the back housing, 3" deep. Please inspect to see if our product could fit for your pool.
- This LED pool light could emit the same light as the 300W incandescent bulb. 10% energy bill, 100% illumination.
- Fit for Pentair 620004, 79206700, 78210200-78210700, 78232400, 78232500, Hayward DuraNiche SP0600U, JiffyNiche SP0607U, SSNiche SP0609C, Sta-Rite 05161, 05163. Jacuzzi 9413 series. Jandy PLNICLRG, SSNICLRG, PLNICVFLRG
Customers who viewed this item also viewed
- LED Pool Light with Remote Control for Inground Pools, DC12V 35W RGB Dimmable Submersible Pool Lights Underwater Color Changing IP68 Swimming Pool LightFREE Shipping by 鶹Get it by Saturday, Jun 7Only 7 left in stock.
- HQUA PN01DC 120V AC Remote Control LED RGBW Color Change Inground Pool Light, 10 Inch 50W with 100 Feet Cord, UL Listed Transformer Included, Fit for 10" Large Wet Niches.FREE ShippingGet it Jun 18 - Jul 2Usually ships within 4 to 5 days
Product information
Technical Details
Additional Information
鶹 Rank | #165,846 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden) #396 in Pool Lighting Products |
---|
Feedback
Product details
- Batteries : 1 CR2 batteries required.
- Is discontinued by manufacturer : No
- Product Dimensions : 30.48 x 30.48 x 12.7 cm; 4.98 kg
- Date First Available : Oct. 21 2019
- Manufacturer : HQUA
- ASIN : B07YY7T5NT
- Item model number : 120VAC
- 鶹 Rank: #165,846 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)
- #396 in Pool Lighting Products
- Customer Reviews:
Product Description
Why you need a LED pool light?

What advantages you would get from PN01?
- High Efficiency. Due to the high energy conversion ratio. 35 W LED light is equal to 300 W incandescent bulb.
- Low Cost. Only 1/9 power consumption. Reducing the frequency of replacement, it has ten times the life of incandescent lamps.
- Full Set of Replacements. You don't need to buy extra compatible plug, power supply, or electric cord for this unit. If you already have a wet niche, it would need nothing else.
- Perfect After-sales Service. HQUA will repair or replace any product that failed during two years' normal operation.
- High Quality LEDs. These LEDs not only have a good performance on pure cool white, but also with excellent light distribution.
4 Key Points to Keep Your Safety.
Power Supply HLG-40H-15A, UL Listed.
- Class 2 Power supply, IP67 suit for outdoor environment. Weatherproof, Even could sink into underwater 3.3 ft for 30 minutes.
- Design for 40W unit, but we only set up for 35W. Leaving sufficient design margin.
- IP 67 Waterproof Connector included for hard wire and connection.
Electric Cord,100 Ft, UL listed.
- 2*18 AWG SJOW 300V Cord. It could handle 4 Amperes, but we only run 3 amps on it. Temperature range from 105 F to 220 F.
12V DC Output for LEDs' Array.
- The max voltage is 12V DC on the light side. Which is stricter than the standard of 25V DC that been using in the most of landscape lighting, also as known as SELV (safety extra-low voltage).
- Even if there is a electric leakage happened, you wouldn't get any hurt for that.
Unique Waterproof Gel
- The special material was used to cover the LEDs and the bottom of the light. Durable design will ensure both safety and light transmittance.
- Protects the LEDs away from the water. And the human boday away from the electricity. But light will still go through the gel with only 1-3% lost.
What kind of niche this light would fit for?
Stainless Steel Niche for Concrete Pool
Plastic Niche for Concrete Pool
Plastic Niche for Vinyl/Fiberglass Pool
- These niches above are not included in the package of PN01 light. It is not provided. We only describe what kind of niche/housing that PN01 would fit for since so many niches in the market.
We try to list some of the common niches that PN01 could fit for:
Pentair 45361000, 620004, 60028300, 79200255, 79206700, 78210200-78210600, 78232400, 78232500, 79211600.
Hayward DuraNiche SP060XX series.
Sta-Rite 05161, 05163.
Jacuzzi 9413 series
Jandy PLNICLRG, SSNICLRG, PLNICVFLRG
- We might miss some niches that been used in the market. Your niches/housings might not be just like the same with these units. But the main structure is the same. They would both have pilot holes in the upward side, and a little notch at the downward side.
- If you cannot assure this light would fit for your niche, please feel free to ask and get more help with that. Some pics would help a lot.

A few notices for the installation:
- The correct connection is : 110V-120V AC to GFCI to Transformer (HLG-40H-15A) to 100' electric cord through the conduit to the LED light
- The LED light needs a wet niche to be installed in. We don't provide a niche/housing for the concrete/vinyl/fiberglass pool. If you need purchase a niche/housing for this product. Please consider the brands and part numbers listed above.
- Follow all the requirements about the dimensions above to get a better performance and avoid potential damage.
- Leave enough electric cords behind the light in the niche is very important to change the replacements and maintain this product.
Brands in this category on 鶹
Customer reviews
Top reviews from Canada
Top reviews from other countries
- Blueman2Reviewed in the United States on March 10, 2023
5.0 out of 5 stars Very bright, OK after 3 months of use
Verified PurchaseI replaced an old but working Pentair 120V 300W incandescent light. It was easy to remove the old, cut the cord, tape the end of the new cord to the old cord, and pull the wire through the conduit. Then just mount light on pool bracket. NOTE: Mine did not include the screw necessary to mount the light. I had to order one from 鶹. The supplied water proof transformer was also easy. Plugged that into a water resistant plug near where my light J-Box was. Just be aware this is DC, so get the polarity correct.
I would estimate the light is about 1.5X brighter than my old one. So about equivalent of a 500W incandescent. The color is more white and striking, so that may also make me think it is brighter. But it really makes the pool stand out. Almost too bright? Not sure. Looks great though.
Next to see is how long the brightness lasts. Several people have reported it dims over time. I will report back if I notice any dimming. One thing to be very careful of is to NEVER turn on the light unless it is under water. The bulb depends on water for cooling. You will end up burning it out or making it dimmer after even 10 minutes of use without water. OK to do a quick test, but no more.
- TonyReviewed in the United States on May 27, 2022
5.0 out of 5 stars .installed October 2021 and working great
Verified PurchaseThe lights are awesome.. brilliant light going through the pool. Had a few failures on these lights but James, manufacturers and myself really made a great effort to correct the problems and they achieved good success in producing a great pool light. We've had them running for about 3 months now and are working perfectly..Many people have complimented on the beauty of the pool in the evening in comparison to the 500 watt incandescent lighting we had prior. 35 watts is a great energy saver and even better as we have two in our pool.. thanks again for a great seller for a product sold on 鶹....just another follow up.. still working great installed in October of 2021..its almost October of 2022 and the lights are as brilliant as they were installed a year ago.. Thanks again to the company working with me in resolving old issues.. can't say enough about the product and the company..so happy in Hawaii..
Just checking back in for the pool lights installed in 2021... just still working great with no issues.. really appreciate the tech support a number of years back that worked with me on previous issues.. James and company went way above normal replies to actually correcting previously known faults.So amazed and happy to note that all turned out well.. savings are great and product is providing us a great feature in our pool..update.. October 22, 2024... lights are still working great without issues.. super happy after working with James in 2021 to figure out some negative issues but continued to work with him to improve the product and couldn't be happier.. Thanks for a great company and product..and service..Tony
Tony.installed October 2021 and working great
Reviewed in the United States on May 27, 2022
Just checking back in for the pool lights installed in 2021... just still working great with no issues.. really appreciate the tech support a number of years back that worked with me on previous issues.. James and company went way above normal replies to actually correcting previously known faults.So amazed and happy to note that all turned out well.. savings are great and product is providing us a great feature in our pool..update.. October 22, 2024... lights are still working great without issues.. super happy after working with James in 2021 to figure out some negative issues but continued to work with him to improve the product and couldn't be happier.. Thanks for a great company and product..and service..Tony
Images in this review
- PAPA.AMGReviewed in the United States on July 5, 2021
1.0 out of 5 stars So far so good. Nice light, nice tone. Failing after 11 months
Verified PurchaseEdit: after 11 months the light is now far dimmer. No sure if it is still under warranty
Got tired of my old screw in LED unit burning out. While it was far brighter (75w vs 35w) than this unit, it did not last.
So I scoured the internet on how to fish new pool cable. I poured dishwashing fluid with water down the junction box 3/4" PVC, cut the other end, attached this cable, and of course they separated in the middle somewhere. About a 30' run. I then had to get a fishing cable - link below, and used that to finally inch the new cable. My son was at the top and fed it the cable 1 inch at a time.
Hooked it up to a app controlled outlet - link below, and this way I can use Alexa and Smarterthings to control it.
While the light is not as bright as the other LED light, it does light up the pool, approximately 35' long, OK. I edited the attached photos top match the real look of the pool. I am not sure how long this will last, and I am not good that any replacement would require a new cable run, but so far it is good.
Smart outlet
https://amzn.to/2Ve1htP
Fishing Line
https://amzn.to/3hgfUVH
PAPA.AMGSo far so good. Nice light, nice tone. Failing after 11 months
Reviewed in the United States on July 5, 2021
Got tired of my old screw in LED unit burning out. While it was far brighter (75w vs 35w) than this unit, it did not last.
So I scoured the internet on how to fish new pool cable. I poured dishwashing fluid with water down the junction box 3/4" PVC, cut the other end, attached this cable, and of course they separated in the middle somewhere. About a 30' run. I then had to get a fishing cable - link below, and used that to finally inch the new cable. My son was at the top and fed it the cable 1 inch at a time.
Hooked it up to a app controlled outlet - link below, and this way I can use Alexa and Smarterthings to control it.
While the light is not as bright as the other LED light, it does light up the pool, approximately 35' long, OK. I edited the attached photos top match the real look of the pool. I am not sure how long this will last, and I am not good that any replacement would require a new cable run, but so far it is good.
Smart outlet
https://amzn.to/2Ve1htP
Fishing Line
https://amzn.to/3hgfUVH
Images in this review
- Johnathan OchoaReviewed in the United States on March 26, 2025
5.0 out of 5 stars Brighter than your future
Verified PurchaseThe media could not be loaded.
Johnathan OchoaBrighter than your future
Reviewed in the United States on March 26, 2025
Images in this review
- JRReviewed in the United States on May 18, 2025
2.0 out of 5 stars Faulty Transformer.
Verified PurchaseWe were in the process of selling our home and needed to replace the pool light because it was 40 years old. Anyway, after the pool technician completed the job, he was unable to turn the light on and after hiring a electrician. They both identified that the transformer was faulty and we had to make. Some last minute changes to get the light to work. Unfortunately those parts are not available in the pool store.
