| Educational objective(s) | Learn and practice remote control operation and vehicle control through different vehicle types and driving modes |
|---|---|
| Model Number | BRN9719425785379UW |
| Number of game players | 1 |
| Assembly Required | No |
| Batteries Required? | Yes |
| Batteries Included? | No |
| tech_spec_battery_description_toys | Lithium-Ion |
| Material type(s) | Acrylonitrile Butadiene Styrene (ABS) |
| Number of Channels | 6 |
| Colour | Black |
| Item model number | BRN9719425785379UW |
| Parcel Dimensions | 27.89 x 21.21 x 12.29 cm; 635 g |
| ASIN | B07B2SVQ3M |
Product information
Additional Information
| Customer Reviews |
4.7 out of 5 stars |
|---|---|
| 鶹 Rank |
|
| Date First Available | March 11 2018 |
| Manufacturer | Flysky |
Feedback
Frequently bought together

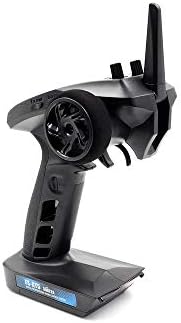

This item: Flysky FS-GT5 6CH AFHDS RC Transmitter w/FS-BS6 Receiver for RC Car Boat
$122.09
Get it Jan 8 - 20
In Stock
+
$33.29
Get it by Tuesday, Dec 30
Only 3 left in stock.
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product Description
1. The antenna、2. Channel 6、3. Channel 5
4. Display
5. The LED Light
6. The Key code
7. Navikeyi
8. Return, Exti key
9. The Power Switch
10. Channel 4（3 gears of high）
11. Direction Ratio
12. Channel 1 Handwheel
13. Throttle adjustment
14. Direction fine tuning
15. Channel 2 Trigger
16. Channel 3（Control forward and backward output）
17. Battery compartments
Details Functions and Use：
MODEL: The transmitter can hold up to 20 models (01-20). Each configuration can quickly be recalled.
NAME: This function is for naming a model using up to 4 characters in length : 0123456789 ABCDEFGHIJ K L MNOPQRSTUVWXYZ
Reverse (REV): The reversing function is used to correct the direction of travel for any channel.
End Point Adjust (EPA): The EPA function is used to set the travel limits for each channel.
Sub Trim (SUB-TR): This function can be used to change the centre point of any channel.
Dual/Rate (D/R): This function is used to limit the ST or TH D/R.
Exponential (EXP): This function is used to add a curve to the output of a channel. When set to 0 the curve response is linear; however when set to a positive or negative value the curve will no longer be linear.
A.B.S. (ABS): This function uses the throttle output to create automatic braking in order to make braking easier on different surfaces.
Trim (TRIM): This function is used to change the center point of each channel. For example if the steering wheel, when centered, leaves the model's wheels pointing out of alignment, this function can be used to correct it.
Failsafe (ESAFE): This function protects the model, the safety of the user and others. When active the failsafe will set all channels to a predefined value until either; power is removed or it regains signal. If a channel is set to off it will remain in the last position it was in when signal is lost.
CRAWL: This function is used to create a crawler mix, meaning that the front and back wheels can move in different directions. By default this function is set to off. Channel 3 will always be assigned as the rear wheels.
S.V.C. (SVC): This function is only available for the FS-BS6. However because of frequent updates this function may become available for other receivers, for more information please visit our website. Intelligent vehicle control needs the use of the receivers gyroscope. Using the gyroscope this function will alter throttle and steering in order to keep the model going in the desired direction.
2.4Ghz Flysky RC Transmitter：
Built-in vibration motor, just the rightamplitude, vibration can indicate thevoltage is too low and out of controlalarm, even in a noisy place it also notmiss important warning!
ANTLER-LOCK:
180° adjustable antenna, easy to carry
AFHDS 2A second generation enhanced automatic FM digital system：
- Uniquei dentity：Before connecting the control,set the code first to exclude other frequency interference,so as to make the control more stable and reliable.
- Multiple frequency jump：According to the ID frequency point,automatic frequency hopping. Avoid more distractions and respond quickly.
FS-BS6 Receiver
- Built-in gyroscope stabilization system
- Channel: 6
- Frequency range: 2.408-2.475GHz
- Number of bands: 135
2.4GHz system: AFHDS 2A
- Modulation method: GFSK
- Input power: 4.0-8.4V DC
- Size: 30 * 22 * 16mm
Control Distance:
- Water: About 150m (Note: the antenna of the receiver should be exposed to the water)
- Ground: About 200-300m (in the open and undisturbed environment)
