| Manufacturer | ECOWITT |
|---|---|
| Place of Business | Room 601, Block A, Building 1, Phase 1, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Community, Nanshan District, Shenzhen City, China |
| Item Weight | 2.36 kg |
| Product Dimensions | 17.81 x 5.51 x 14.5 cm; 2.36 kg |
| Is discontinued by manufacturer | No |
| Colour | White |
| Style | WS2320 |
| Material | Plastic |
| Shape | Rectangular |
| Power source type | Battery Powered |
| Item Package Quantity | 1 |
| Display Style | LCD |
| Special Features | Alarm, Lightweight, Wireless |
| Included components | Instruction Manual |
| Batteries Included? | No |
| Batteries Required? | Yes |
| Length | 7.01 inches |
| Width | 2.17 inches |
| Height | 5.71 inches |
Videos for similar products
Product information
Additional Information
| ASIN | B0792WD1GP |
|---|---|
| Customer Reviews |
4.3 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | Sept. 11 2018 |
Feedback
Product Description

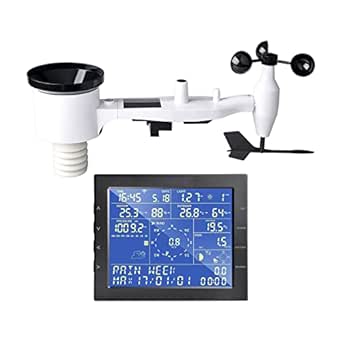

ECOWITT WS2320 Wi-Fi Weather Station with Wireless Solar Powered 7-in-1 Weather Sensor
Features
- Time and date, Moon phase
- Indoor/Outdoor temperature and humidity
- Wind speed, gust speed, and wind direction (compass)
- Absolute and Relative barometric pressure
- Rainfall rate and totals for day, week, month, year and life-time total
- Calculated wind chill, dew point and heat index display
- Solar light intensity and UV index
- Selectable display units for each sensor: C or F (temperature); mph, km/h, m/s, knots or Beaufort (wind speed); inHg, hPa or mmHg (pressure); in or mm (rainfall); lux, fc or w/m2 (solar lighting)
- Weather forecast based on barometer reading
- Maximum and minimum values for sensor with time stamp
- High/low alarm options for sensors
- Message panel showing alarm conditions, min and max data, etc.
- PC software (requires Wi-Fi connection; downloaded)
- Backlight high/low adjustable when connected to power adapter
- RF Frequency : 915 MHz ( Please Note : The products sold on 鶹.com/鶹.ca are all 915 MHz; The products sold on 鶹.co.uk/鶹.de are 868 MHz; The products sold on 鶹.com.au are 433 MHz. )
PC Software Operation
- Software to monitor the WS2320 weather station or set values is available for your computer or laptop. The following operating systems are supported: Windows version XP, Vista, 7, 8 or 10.
- The link for downloading the software is on the "8 PC Software Operation" of user manual.
Installation and configuration
- Download the “WeatherSmartIP_V1.2(0609).zip.” from that link, decompress and install the software.
- Please make sure your PC is on the same network segment as your WS2320 console(using Wi-Fi or Ethernet cable)
- Please choose "Systeom" from manu, and then “Select Device” and select the IP address that your console is using.
Basic Functions of PC Software
- ✔ Basic Setting
- ✔ Alarm
- ✔ Max/Min Today
- ✔ Max/Min Overall
- ✔ Rain Totals
- ✔ Tabular and Graph Record
7-in-1 Wireless Solar Powered Weather Sensor
- Outdoor Sensor Body with built-in: Thermo-hygrometer / Rain Gauge / Wind Speed Sensor/ Wind Direction Sensor, Light and UV sensor, Solar panel.
- This device provides accurate weather datas and is Wi-Fi capable to stream
- data from the weather station to Internet based weather services.
LCD Console Display
- Immediately after power up (inserting batteries and/or power adapter), the unit will turn on all segments of the LCD for 3 seconds and will then display one or more messages on the bottom: firmware version, RF frequency and sensor identifier. Then the unit will start to look for reception of the outdoor sensor data which may take up to 3 minutes. Once the signal has been found and registered, the unit will enter the receive and display mode.
- The console display contains 10 distinct information segments as well as a message panel on the bottom left side.
- The console operates in several different modes: normal, settings, history, alarm, max/min, and calibration settings. Each mode is explained in the following sections.
- Any mode other than normal, can always be exited to return to normal mode by depressing the “HISTORY” button briefly. Thirty seconds of inactivity in any mode will also cause a return to normal mode.
Wi-Fi Connection for the Weather Station Console
- To send weather data to these services you must connect your console to the internet via Wi-Fi. The console can only operate using Wi-Fi when the external power adapter is connected and plugged in!
Publish to Internet Weather Services
- ✔ Weather Underground : Provides local & long-range weather forecasts, weather reports, maps & tropical weather conditions for locations worldwide.
- ✔ WOW : A UK based weather observation website.
- ✔ Weather Cloud : A large network of weather stations reporting data in real time from all over the world.
- ✔ Ecowitt Weather : Ecowitt’s new weather server that can host a bunch of sensors that other services don’t support at this time.
- ✔ Custom sites （using either Wunderground or Ecowitt protocol.）
