  • Low Voltage Disconnect and Charging Discharging Protection 2 IN 1 40A DC 5V-60V Low Voltage Cutoff with LCD Display Low Voltage Protector Disconnect Switch Module Charging Discharging Protection Board
  • LVP working principleMgcSTEM

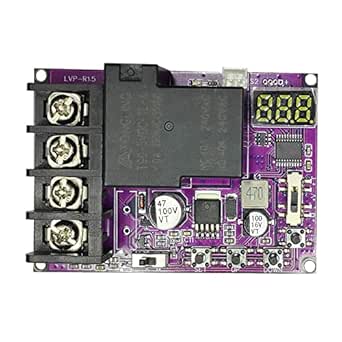

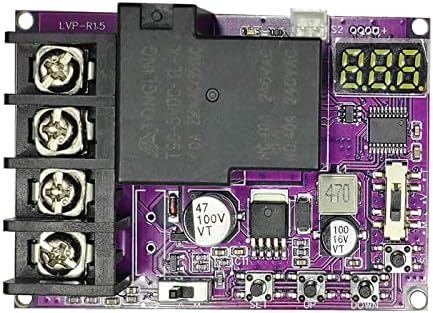

Low Voltage Disconnect and Charging Discharging Protection 2 IN 1 40A DC 5V-60V Low Voltage Cutoff with LCD Display Low Voltage Protector Disconnect Switch Module Charging Discharging Protection Board

4.3 out of 5 stars (151)
To see product details, add this item to your cart. You can always remove it later.
Coupon:
Apply 10% coupon Terms

Purchase options and add-ons

About this item

  • It has a 2-in-1 charging mode (battery overcharge protection) and discharging mode (battery low voltage protection). The charging mode can be used for solar charging, and the battery automatically disconnects when it reaches the set voltage. The discharging mode can be used for battery low voltage protection.
  • Two low-power modes: automatic mode and manual mode. Manual mode consumes 0 power after the relay disconnects, and manual button reset is required after disconnection;
  • In automatic mode, the relay enters a low-power mode after disconnecting (LED turns off after 60s without any button action, and the LED resumes display when a button is pressed again). Standby current is 5mA (18V), and it automatically restarts when the voltage is restored.
  • The device has an internal flash storage module, so all settings can be restored after a power off.
  • Maximum 40A current, operating voltage from 5V to 60V.Supports a 99 seconds start delay, 99 seconds disconnect delay, and a 99:59:59 hours timer disconnect timer.
› See more product details

Frequently bought together

This item: Low Voltage Disconnect and Charging Discharging Protection 2 IN 1 40A DC 5V-60V Low Voltage Cutoff with LCD Display Low Voltage Protector Disconnect Switch Module Charging Discharging Protection Board
$21.24
Get it by Monday, Mar 2
In Stock
Sold by MgcSTEM and ships from 鶹 Fulfillment.
+
Linkstyle 2PCS Digital Voltage Gauge, DC 4V–100V LED Battery Meter with Round Display & Two-Wire Connection for 12V/24V Car M
$11.99
Get it by Monday, Mar 2
In Stock
Sold by Linkstyle and ships from 鶹 Fulfillment.
+
VIABRICO 10Gauge 100FT Electrical Wire Cable Flexible Wire Extension Cord 10AWG Copper Clad Aluminum Copper Wire 2 Conductors
$29.99
Get it by Monday, Mar 2
In Stock
Sold by ORGEWOW and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.

Explore more from across the store

Page 1 of 1 Start again
Previous set of slides

  3. Sustainability features

    This product has sustainability features recognized by trusted certifications.
    Safer chemicals
    Made with chemicals safer for human health and the environment.
    As certified by
    Global Recycled Standard

    Global Recycled Standard

    Global Recycled Standard (GRS) certified products contain recycled content that has been independently verified at each stage of the supply chain, from the source to the final product and meet social, environmental, and chemical requirements. The purchase of Global Recycled Standard (GRS) certified products supports the use of recycled content in the supply chain. A product must contain at least 50% certified GRS material to qualify for inclusion in Climate Pledge Friendly.

    Certification Body

    Bureau Veritas

    Certification Number

    TE-00320112

    Climate Pledge Friendly

    Discover more products with sustainability features.Learn more
Next set of slides

Product information

Technical Details

Manufacturer ‎MgcSTEM
Part number ‎LV-P01-001
Item Weight ‎59 g
Parcel Dimensions ‎11.4 x 10.01 x 3.2 cm; 59 g
Item model number ‎7f97e121-c03e-4f22-97e6-13224b8cd3e9
Colour ‎Purple
Material ‎Plastic
Voltage ‎60 Volts
Amperage Capacity ‎40 Amps
Item Package Quantity ‎1
Measurement System ‎Imperial
Mounting Type ‎Screw Mount
Included components ‎1
Batteries Included? ‎No
Batteries Required? ‎No

Additional Information

ASIN B0C2VMGCZR
Customer Reviews
4.3 out of 5 stars (151)

4.3 out of 5 stars
鶹 Rank
Date First Available April 22 2023

Feedback

Low Voltage Disconnect and Charging Discharging Protection 2 IN 1 40A DC 5V-60V Low Voltage Cutoff with LCD Display Low Voltage Protector Disconnect Switch Module Charging Discharging Protection Board

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product Description

low voltage cutoff
low voltage cutoff
low voltage cutoff

DISCHARGE MODE CONNECTION DIAGRAM

low voltage cutoff

WARNING


  1. Please make sure that "IN+ IN- OUT+ OUT-" and the positive and negative poles of the battery cannot be reversed. Reverse connection will damage the product, battery and charger;
  2. The charging mode and discharging mode need to use the button setting to switch the mode before use. See the description below for the switching method.
  3. It is a charging/discharging controller but not a charger or voltage converter.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

low voltage cutoff

Merchant video
Low Voltage Cutoff

OUR PRODUCTS

DC 5V-60V

Working Voltage

30V

Low Voltage Cutoff

Electronic Switch

Display Voltage

Widely Used

DC 5V-60V

Working Voltage

30V

Low Voltage Cutoff

Electronic Switch

Display Voltage

Widely Used

DC 5V-60V

Working Voltage

9V-70V

Low Voltage Cutoff

Electronic Switch

Display Voltage

Widely Used

DC 5V-60V

Working Voltage

9V-70V

Low Voltage Cutoff

Electronic Switch

Display Voltage

Widely Used
