| Manufacturer | icstation |
|---|---|
| Part number | 14854 |
| Item Weight | 68 g |
| Parcel Dimensions | 7.87 x 7.62 x 2.79 cm; 68 g |
| Item model number | 14854 |
| Colour | Black |
| Style | DC 6V-60V 20A |
| Material | Lithium |
| Power source type | Battery Powered |
| Item Package Quantity | 1 |
| Included components | Low Voltage Protector |
| Batteries Included? | No |
| Batteries Required? | No |
| Battery Cell Type | Lithium |
Videos for similar products
Product information
Additional Information
| ASIN | B07YTVK1JK |
|---|---|
| Customer Reviews |
3.8 out of 5 stars |
| 鶹 Rank |
|
| Date First Available | Oct. 11 2019 |
Feedback
Product Description
Low Voltage Disconnect
About ICSTATION
- ICStation has more than 10 years experience on electronic industry products
- Provide any solution to the problem
- Looking forward to your inquiry and hope to built long term cooperation relationship with you!

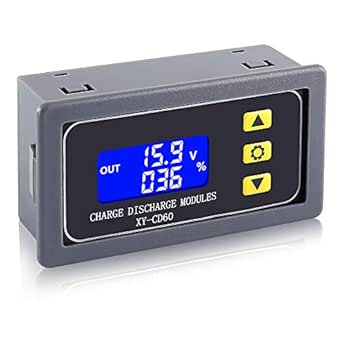

ICStation Low Voltage Disconnect
for DC 6V-60V Lithium/Lead Acid Battery
- Prevent Over-charge
- Prevent Over-discharge
- Display battery voltage, percentage, and operating time.
- Charging Time Control (00:00-99:59 hours)
- Discharging Time Control (00:00-99:59 hours)
- Delay (0~999 seconds)
- Max Current: 20A
- Suitable for 22-14AWG wires
- PDF Instruction can be downloaded at [Product information]-[Technical Specification]-User Manual [pdf ]
Charge Mode
Automatic Charge
When the battery power is lower than the setting lower limit value(dn), the relay closes and the charger starts to charge the battery. IN flashing means the battery is in charge.
Prevent Overcharge
When the battery capacity reaches the upper limit voltage(UP), the relay opens and it cuts off the charger.
Discharge Mode
Prevent Over-discharge
When the battery voltage reaches the set lower limit values, Icstation digital LVD module will disconnect the load automatically to avoid the battery from over-discharging to prolong the battery lifetime.
Automatically Reconnects
When the battery voltage reaches the upper limit values, the relay closes and the battery starts to discharge. OUT flashing means it is discharging.
Buttons
- UP: Press UP to switch from Percentage to Time display. Hold on 5s to switch Charge / Discharge Mode. It displays IN when it is in Charge Mode; displays OUT when it is in Discharge Mode.
- SET: Press to check the current parameters. Hold on the button to enter the parameters setting.
- DOWN: Press to turn on/off the relay, just like a STOP button.
How to set the parameters?
- Press and hold on the SET button to enter the parameters setting manual.
- Press the SET button to switch between different parameter settings.
- Adjust the value with the UP and DOWN buttons. Hold the button for quick adjustments.
- Press and hold the SET button to save your settings and exit the setup manual.
