| Brand | DIYmall |
|---|---|
| Manufacturer | DIYmall |
| Model | FBA_FZ0728X2 |
| Model Name | FBA_FZ0728X2 |
| Part Number | FBA_FZ0728X2 |
| Special features | High Weight Capacity |
| Display type | LCD |
| Color Screen | No |
| Batteries included | No |
| Batteries Required | No |
| Material Type | copper |
| Form Factor | Mini |
| Includes rechargable battery | No |
| Manufacturer | DIYmall |
| Item model number | FBA_FZ0728X2 |
| Product Dimensions | 10 x 20 x 37 cm; 5 g |
| ASIN | B010FG9RXO |
Frequently bought together

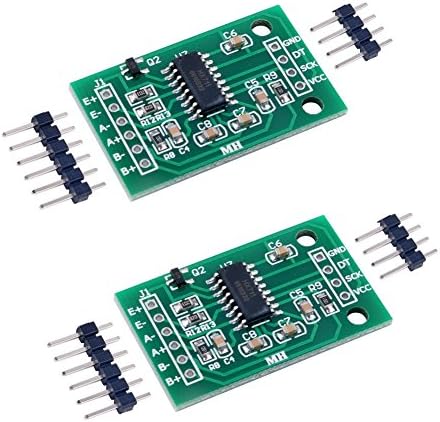

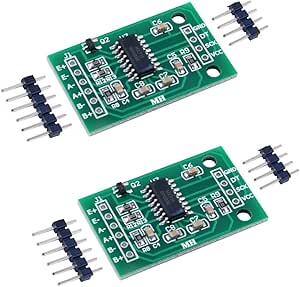

This item: DIYmall 2pcs Hx711 Weight Weighing Load Cell Conversion Module Sensors Ad Module for Arduino Microcontroller
$9.50($4.75/count)
Get it by Tuesday, Mar 3
Sold by DIYmall and ships from 鶹 Fulfillment.+
$23.49($2.94/metre)
Get it by Wednesday, Feb 25
In Stock
+
$9.99
Get it by Wednesday, Feb 25
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product Description
Description:
This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.
Features:
# Two selectable differential input channels
# On-chip active low noise PGA with selectable gain of 3264 and 128
# On-chip power supply regulator for load-cell and ADC analog power supply
# On-chip oscillator requiring no external component with optional external crystal
# On-chip power-on-reset
# Simple digital control and serial interface: pin-driven controlsno programming needed
# Simultaneous 50 and 60Hz supply rejection
# Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
# Operation supply voltage range: 2.6 ~ 5.5V
# Operating Temperature Range:-20 degree ~ +85 degree
Applications:
This weighing sensor amplifier module can use to be
weight scales,
kitchen scale,
industrial process control etc...
- Document link:
- h-ttps://github.com/aguegu/ardulibs/tree/master/hx711
- h-ttps://cdn.sparkfun.com/datasheets/Sensors/ForceFlex/hx711_english.pdf
- h-ttps://www.youtube.com/watch?v=nGUpzwEa4vg
Connection diagram
What you will get:
2 X HX711 weight sensor AD module
1460PCS Resistors Kit Assortment
|
2 in 1 Alligator Clip to Dupont Wire
|
2PCS DOIT DEVIT V1 ESP32-WROOM-32 Development Board
|
DIYmall 0.96" Inch Blue and Yellow OLED Dispaly Module
|
120PCS Dupont Wire Ribbon Cables Kit
|
3V 2XAAA Battery Holder Case
|
|
|---|---|---|---|---|---|---|
|
|
|
|
||||
