  • 3 VIDEOS

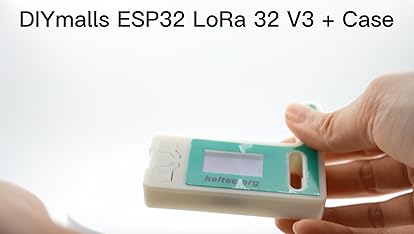

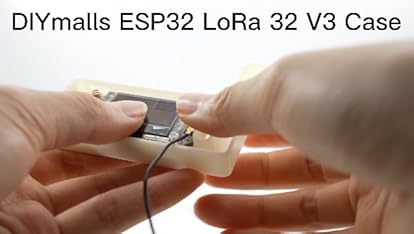

lora32 v3 install antenna and shellDIYmall
  • DIYmall 2 Sets 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display ESP32-S3 Dual-core SX1262 Type-C Lora Kit forArduino IoT
  • To view this video, download

2 Sets 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display ESP32-S3 Dual-core SX1262 Type-C Lora Kit forArduino IoT

4.5 out of 5 stars (170)
To see product details, add this item to your cart. You can always remove it later.

About this item

  • WiFi LoRa 32 is a classic IoT dev-board. The newly launched V3 version retains Wi-Fi, BLE, LoRa, OLED display, and other functions
  • MCU: ESP32-S3FN8 (V2 is ESP32-D0WDQ6), LoRa Chip: SX1262(V2 is SX1276/8), USB Socket: Type-C(V2 is Micro-USB)
  • The MCU is different, so the definitions of V2 and V3 GPIO pins are different
  • Upgraded V3 version has better impedance matching of RF circuits
  • When you use esp32 oled lora, you need to use 2pcs together. One is used for receiving and another for sending
  • It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers
  • What you will get: 2 X ESP32 Lora V3 development board + 2 X 915MHz Antenna + 2 X JST 1.25mm-2P Connector cable + 2.54 pin (no welding) + 2 X Protective Case for lora board
› See more product details

Product information

Technical Details

Brand ‎DIYmall
Manufacturer ‎DIYmall
Model ‎FZ2886-AX2K
Model Name ‎ESP32 Lora V3
Part Number ‎FZ2886-AX2K
Memory storage capacity ‎32 MB
Ram Memory Installed Size ‎32 MB
RAM memory technology ‎LPDDR4
OS ‎FreeRTOS
Processor Brand ‎Espressif
Processor Speed ‎0.24 GHz
Number of Processors ‎2
Hardware interface ‎USB
Compatible Devices ‎Arduino Boards, LoRa Gateways
Batteries included ‎No
Batteries Required ‎No
Wireless Standard ‎Bluetooth, 802.11bgn
Total USB Ports ‎1
Connector Type ‎Bluetooth, Wi-Fi, USB
Manufacturer ‎DIYmall
Item model number ‎FZ2886-AX2K
Product Dimensions ‎5 x 2.55 x 0.97 cm; 91 g
ASIN ‎B08629526P

Additional Information

Date First Available March 19 2020
Customer Reviews
4.5 out of 5 stars (170)

4.5 out of 5 stars
鶹 Rank

Feedback

DIYmall 2 Sets 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display ESP32-S3 Dual-core SX1262 Type-C Lora Kit forArduino IoT

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.
Brief content visible, double tap to read full content.
Full content visible, double tap to read brief content.

Videos for similar products

Previous page

  1. DIYmall 915MHz ESP32 LoRa V3 Development Board SX1262 0.96 Inch OLED Display WiFi+BLE Lora Kit with LoRa Antenna for Arduino IOT Smart Home (2Sets)19
    $71.99

  2. DIYmalls 915MHz LoRa V3 LoRa32 ESP32 OLED Board + 915 MHz Antenna + LoRa Case Enclosure Cover for Meshtastic, not Compatible with Heltec V266
    $37.98

  3. DIYmalls ESP32 OLED LoRa V3 Board SX1262 + LoRa Case Protective Cover + 915 LoRa Antenna for Arduino Meshtastic LoraWan IOT (Pack of 2)53
    $69.98

  4. DIYmalls 915 ESP32 LoRa OLED Board V3 + 915MHz LoRa Antenna U.FL to SMA for Arduino IOT LoraWan Gateway, not Compatible with Heltec V2140
    $35.98

  5. Pack of 2 ESP32 LoRa V3 Battery 1100 mAh Protective Case Antenna 868 MHz Devices SX1262 LoRa V3 for Tastic Mesh AR Duino LoRaWAN IoT (N30)138
    $129.99

  6. DIYmalls 915MHz ESP32 LoRa OLED Board V3 Type-C SX1262 + LoRa Antenna U.FL to SMA for Meshtastic LoraWAN (Pack of 2)140
    $63.98

  7. Heltec V3 Case for ESP32 LoRa Development Board Custom Meshtastic Case with Antenna Port and Charging Slot (N32 Version, Green)61
    $34.11

  8. LILYGO T-Echo Meshtastic 915MHz LoRa SX1262 Wireless Module TTGO Development Board NRF52840 GPS RTC NFC Arduino with BME280 Pressure Sensor152
    $101.00

  9. DIYmalls 915MHz LoRa V3 LoRa32 ESP32 OLED Board + 915 MHz Antenna + LoRa Case Enclosure Cover for Meshtastic, not Compatible with Heltec V266
    $37.98
Next page

Product Description

lora

About LoRa:

WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

Features:

- Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

- SX1262 LoRa node chip.

- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.

- Onboard 0.96-inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information.

- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

- Support the Arduino development environment.

- This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.

- With good RF circuit design and low-power design.

Specifications

Master Chip ESP32-S3FN8 (Xtensa(R)32-bit lx7 dual core processor)
LoRa Node Chip SX1262
USB to Serial Chip CP2102
Frequency 863~928MHz
Max. TX Power 21±1
Max. Receiving sensitivity -134dBm@SF12 BW=125KHz
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth Bluetooth 5 (LE)
Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin
Battery 3.7V lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 50.2 * 25.5* 10.2 mm
lora

Power supply

Except when USB or 5V Pin is connected separately, lithium battery can be connected to charge it. ln other cases, only a single power supply can be connected.

Power supply mode---------- Minimum---------Typical-------Maximum---------Company

Type-C USB(≥500mA)---------4.7-------------------5----------------6-----------------V

Lithium battery(≥250mA)-----3.3-----------------3.7--------------4.2----------------V

5V pin(≥500mA)--------------- 4.7------------------5----------------6-----------------V

3V3 pin(≥150mA---------------2.7-----------------3.3--------------3.5----------------V

Support Meshtastic

lora
lora

Package includes:

2 X ESP32 Lora V3 development board

2 X 915MHz Antenna

2 X JST 1.25mm-2P Connector cable

2.54 pin (no welding)

2 X Protective Case for lora board
