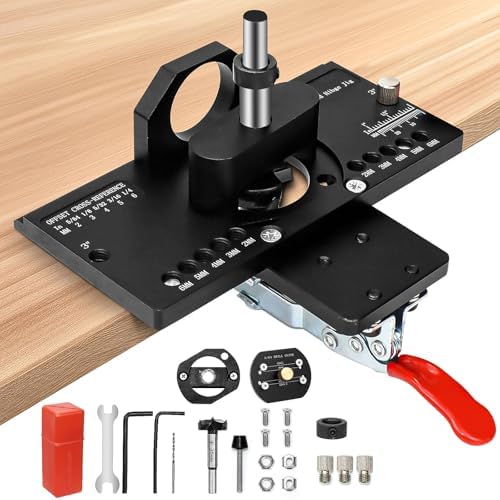

KOYEE Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter, 35mm Cabinet Hinge Jig, Hinge Hole Drilling Jig for Woodworking Door Cabinet Hinges Mounting Tool

Brand: KOYEE

(6)

To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

Material	Aluminum
Brand	KOYEE
Finish type	Unfinished
Mounting type	Flush Mount
Hole count	1

About this item

【VERSATILE CABINET HINGE JIG】The concealed door hinge jig can work with 2mm, 3mm, 4mm, 5mm and 6mm hinge offsets for most concealed hinges. Have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. Our 5/64 inch drill guides provides 4 kinds of hinge screw holes spacing including 42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm for most hidden cabinet door hinges installation. 5/64 inch drill bits is included.
【DURABLE AND ACCURATE】All metal cabinet hinge jig made of high quality aluminum alloy is more durable and accurate than plastic jigs. The all metal concealed hinge jig bulit-in double bearings provides continuous hinge hole drilling and much easier. The 35mm carbide tipped bit is solid and sharp for cabinet door hinges installation. Concealed cabinet hinge jig wood hole puncher locator help you drill accurate and fast as drill press.
【WORK WITHOUT DUST】The built in metal dust bracket of our concealed hinge jig is suitable for 1-3/8 inch vaccum hose and easy to connect with your vaccum. The world's latest dust vacuum adapter makes cabinet hinges drilling without any dust for woodworking. Greatly improves the efficiency and accuracy of installing cabinet hinges. The 1-3/8 inch dust adapter is perfect for most vaccum dust collector.
【EASY AND FAST】This cabinet hardware jig provides quick cabinet hinge hole depth setting without any measuring. The 35mm concealed hinge jig provides drill depth from 0-0.6 inch. Perfect for 1/2 inch overlay hinges or any others.
【QUICK CLAMP DESIGN】We provide quick clamp on the 35mm hinge hole drilling jig pro max type. You can clamp and fix the concealed hinge jig on the workpiece easier and fast. Save a lot of time and make woodworking easier.

› See more product details

Report an issue with this product

Brief content visible, double tap to read full content.

Full content visible, double tap to read brief content.

Videos for similar products

From the brand

WELCOME TO KOYEE'S SHOP！

Thank you for your visit, swipe right to explore more...

KOYEE is committed to carefully selecting materials and thoughtfully designing products, focusing on quality, functionality, and everyday reliability.

Each product is designed to seamlessly integrate into modern life, bringing you a trustworthy and sophisticated experience.
Party Supplies
Decorative Supplies
Daily Necessities
Clothing Accessories
Daily Supplies
Water Bottle Container
Food containers
kitchen Accessories
DIY Project

Product information

Technical Details

Manufacturer	‎KOYEE
Place of Business	‎KOYEE
Parcel Dimensions	‎21.1 x 11.4 x 6.4 cm; 920 g
Item model number	‎0cc20d03-9f8a-47d7-acf8-b1766553d4df
Finish	‎Unfinished
Material	‎Aluminum
Power Source	‎hand_powered
Number of Holes	‎1
Mounting Type	‎Flush Mount
Included Components	‎1 Hinge Jig
Batteries Required?	‎No
Item Weight	‎920 g
Country of origin	‎China

Additional Information

ASIN	B0F43Y5625
Customer Reviews	(6) 3.4 out of 5 stars
�鶹�� Rank	#74,495 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #214 in Power Tool Accessory Jigs
Date First Available	April 8 2025

Feedback

Would you like to tell us about a lower price?

Product Description

Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter Concealed Door Hinge Jig

Complete Set with Precision Parts

All-metal aluminum alloy construction for durability and long-lasting precision.
35mm carbide tip for sharp, efficient cutting.
Includes guide, quick-release clamp, drill bit, wrench, and bearings.
Meets all installation needs for carpentry doors, cabinets, and furniture hardware.
