| Operating temperature | 25 Degrees Celsius |
|---|---|
| Manufacturer | BIGTREETECH |
| Model Name | BTT Pi V1.2 Control Board Quad-Core WIFI 1GB Ram |
| Part Number | KINGPRINTER-1020000427 |
| Memory storage capacity | 1 GB |
| Memory Slots Available | 1 |
| Memory technology | DDR3, SDRAM |
| Ram Memory Installed Size | 1 GB |
| RAM Memory Maximum Size | 1 GB |
| RAM memory technology | DDR3, DDR3L |
| OS | Linux |
| Processor Brand | ARM |
| Number of Processors | 4 |
| Mounting Hardware | Power supply, USB cable, and heatsinks |
| Number of Items | 1 |
| Batteries included | No |
| Batteries Required | No |
| Wireless Standard | 802.11n |
| Total USB Ports | 4 |
| Connector Type | Ethernet |
| Material Type | PCB |
| Manufacturer reference | KINGPRINTER-1020000427 |
| Product Dimensions | 8.5 x 6.4 x 5.6 cm; 109 g |
| ASIN | B0C2KMT8V7 |
Frequently bought together
This item: BIGTREETECH Pi V1.2 Control board Quad-Core WIFI 1GB RAM, BTT Pi Support SKR Mini E3 V3.0 SKR 3 EZ SKR Pico Octopus Pro Silent Board to Run Klipper VS Raspberry-Pi 4/3B For i3/CoreXY 3D Printing Users
$55.99
Get it by Monday, Mar 2
In Stock
+
$149.99
Get it by Monday, Mar 2
In Stock
Total price:$00
To see our price, add these items to your cart.
Choose items to buy together.
Videos for similar products
Product Description
What is in the box?
- BTT Pi V1.2
- Heatsink
- SPI Cable
- WiFi Antenna
- BTT Duck
- BTT Package Box

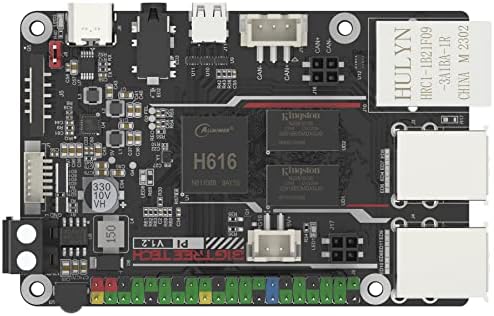

BIGTREETECH Pi V1.2 Motherbaord Quad-Cord
Support Klipper Firmware for i3/CoreXY 3D Printing
- A. Onboard RJ45 Port: Supports 100Mbps wired network and WIFI wireless network, allowing users to flexibly choose the network connection method.
- B. 4 x USB 2.0: Make it easy to connect a wide range of devices, such as keyboards, mouse, USB drivers, cameras...
- C. 40-PIN GPIO: Colored connectors, help users more easily identity and differentiate between the various pins on the board.
- D. Two Power Supply Methods: Supports USB-C 5V power supply and DC12-24V from a 3D printer, making it easy and efficient to power up the board without any extra adapters or power sources.
- E. 3.5mm Audio Jack: An easy and convenient way to connect audio devices to the board.
Efficient and Powerful
CPU uses ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz. Debian Linux compatible and fully customizable to suit your needs.
Same Size as the Raspberry-Pi
A nice alternative for your next Pi project. Creates a wide range of projects, from home automation and robotics to multimedia and gaming.
Rich Connectivity
Its 40-PIN GPIO, 4 USB ports, HDMI, Ethernet, and more ensure that you have all the connections you need to bring your innovative ideas to life.
Reserve Interface for ADXL345
For an accelerometer sensor, to enable Klipper's input shaping for higher precision and accuracy.
Reserve CAN bus Interface
For an external U2C module, enable BTT Pi to communicate with CAN bus protocol devices.
*Note: U2C module sold separately.
Multiple Display Options
Supports 4K UHD HDMI displays at 60fps and low-power OLED/TFT screens via SPI.
*Note: DSI not supported.
