  • DROK DC Buck Converter, 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply, 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart
  • DROK 6V 9V 12V 24V 160W Buck ConverterDROK

Safety and product resources

Documents and guides

DROK DC Buck Converter, 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply, 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart

4.1 out of 5 stars (939)
To see product details, add this item to your cart. You can always remove it later.

Purchase options and add-ons

About this item

  • 【Parameter】 DROK Power Supply Module input volt range is DC 5.3-32V; Output volt range is DC 1.2-32V which is variable. Output current can reach to 8A and Output Power can reach to 120W for long-time use. If enhance heat dissipation, this converter can reach 12A and 160W output.

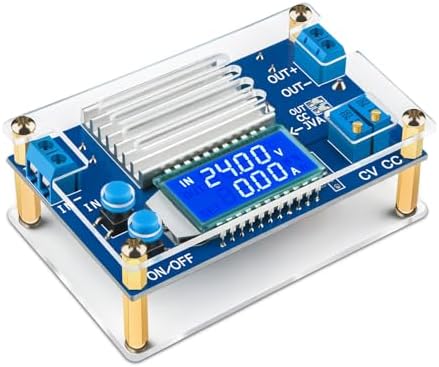

  • 【Characteristics】 This Buck Converter is equipped with LCD Display, Acrylic Case and Heat Sink. LCD Screen can display input/output voltage, output current and output power. Voltage precision is 0.05V, current precision is 0.005A. Acrylic case can keep the converter board away from dust, which is protective. Heat Sink can keep module 120W for long-time using in a low temperature. If you want to reach maximum power 160W, please improve heat dissipation.
  • 【Easy Operation】 A user manual will be included in package, which can help you easier to operate. The button can control ouput voltage ON/OFF status, and you can set the default output state is ON/OFF for the next time. The potentiometer can help you to adjust volt amp in a simple and fast way.
  • 【Protection】 It has reverse-connect protection, short circuit protection and over current protection. When you connect the input wire reversely or short circuit, the module will not burn. And roate the CC potentiometer to set over current protection value you want.
  • 【Application】 The volt conversion board can be used for 5v 6v 9v 12v 24V 30V 32V 3a 5a 10a devices, like solar panel, lab, experiment, RV, All-Terrain Vehicle, car, battery charger, LED stripes, etc.
› See more product details

Frequently bought together

This item: DROK DC Buck Converter, 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply, 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart
$24.99
Get it by Monday, Mar 2
In Stock
Sold by DROK and ships from 鶹 Fulfillment.
+
[2 Pack] DC-DC 5A Buck Converter 4-38V to 1.25-36V Step-Down Voltage Regulator High Power Module with LED Display
$19.99
Get it by Monday, Mar 2
In Stock
Sold by Valefod-direct and ships from 鶹 Fulfillment.
+
2PCS LM2596 DC DC Step Down Converter Voltage Regulator LED Display Voltmeter 4.0-40V to 1.3-37V Buck Adapter Adjustable Powe
$10.99
Get it by Wednesday, Mar 4
In Stock
Sold by zhangweilun and ships from 鶹 Fulfillment.
Total price:$00
To see our price, add these items to your cart.
Details
Added to Cart
These items are shipped from and sold by different sellers.
Show details Hide details
Choose items to buy together.

More items to explore

Page 1 of 1 Start again
Previous set of slides
Next set of slides

Product Description

buck converter

logo

DROK has been engaged in technical research, development, manufacture and sale of all kinds of buck converters for many years.

With acquisition of leading technology, we strictly enforce quality management system and improve operational management, dedicate to produce high performance meters for customers.

"Integrity, Quality, Innovation, Customer" ----DROK

DROK Buck Converter

Parameters:

Input voltage range: DC 5.3-32V

Output voltage range: DC 1.2-32V (input should be at least 0.8V higher than output)

Output current: 8A for long-term stable work. If strengthen heat dissipation can reach 12A.

Output power: natural cooling 120W (within 8A). If enhance cooling can reach 160W

  • Can be used as an ordinary buck module with over-current protection.
  • Can be used as a high-power LED constant current driver module.
  • Can be used to diy a solar power controller.
module description
wiring diagram

display input voltage

Display input voltage & current.

display output voltage & current

Display output voltage & current.

display input voltage & power

Display input voltage & power.

display output voltage & power

Display output voltage & power.

DROK 12A Buck Converter
DROK 5A Buck Converter
DROK 4A Boost Buck Converter
DROK 3A Buck Converter
DROK 4.5A Buck Converter
12A Buck Converter
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
4.1 out of 5 stars 939
—
—
—
—
—
Input Voltage DC 5.3-32V DC 6-32V DC 5.5-30V DC 5-23V DC 6.5-36V DC 10-65V
Output Voltage DC 1.2-32V DC 1.5-32V DC 0.5-30V DC 0.01-18V DC 1.2-32V DC 0-60V
Max Current 12A 5A 4A 3A 4.5A 12A
CC/CV mode ✓ ✓ ✓ - no data ✓ ✓
Display LCD LCD LCD LCD LCD LED
Case ✓ ✓ ✓ ✓ ✓ - no data

Product details

  • Is discontinued by manufacturer ‏ : ‎ No
  • Product Dimensions ‏ : ‎ 5 x 5 x 5 cm; 90 g
  • Manufacturer ‏ : ‎ DROK
  • ASIN ‏ : ‎ B078Q1624B
  • Item model number ‏ : ‎ REES-1822
  • Customer Reviews:
    4.1 out of 5 stars (939)

Product information

Technical Details

Brand ‎DROK
Manufacturer ‎DROK
Place of Business ‎Guangzhou, Guangdong 510420,CN
Model ‎REES-1822
Part Number ‎REES-1822
Output Wattage ‎120 Watts
Wattage ‎160 watts
Power source type ‎DC
Batteries included ‎No
Batteries Required ‎No
Mounting type ‎Panel Mount
Manufacturer ‎DROK
Item model number ‎REES-1822
Product Dimensions ‎5 x 5 x 5 cm; 90 g
ASIN ‎B078Q1624B

Additional Information

Date First Available Feb. 8 2018
Customer Reviews
4.1 out of 5 stars (939)

4.1 out of 5 stars
鶹 Rank
Is discontinued by manufacturer No

Feedback

DROK DC Buck Converter, 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply, 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Safety and product resources

Safety documents

Top Brand: DROK

Highly Rated
50K+ customers rate items from this brand highly
Trending
1K+ orders for this brand in past 3 months
Low Returns
Customers usually keep items from this brand
Sponsored
|
Delivery Mon, Mar 2
Delivery Wed, Mar 4
FREE delivery Mar 10 - 20

Product Summary: DROK DC Buck Converter, 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply, 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart

From DROK

4.1 out of 5 stars, 939 ratings

Customer reviews

Price

No featured offers available

Other sellers

Other sellers

About this Item

  • 【Parameter】 DROK Power Supply Module input volt range is DC 5.3-32V; Output volt range is DC 1.2-32V which is variable. Output current can reach to 8A and Output Power can reach to 120W for long-time use. If enhance heat dissipation, this converter can reach 12A and 160W output.
  • 【Characteristics】 This Buck Converter is equipped with LCD Display, Acrylic Case and Heat Sink. LCD Screen can display input/output voltage, output current and output power. Voltage precision is 0.05V, current precision is 0.005A. Acrylic case can keep the converter board away from dust, which is protective. Heat Sink can keep module 120W for long-time using in a low temperature. If you want to reach maximum power 160W, please improve heat dissipation.
  • 【Easy Operation】 A user manual will be included in package, which can help you easier to operate. The button can control ouput voltage ON/OFF status, and you can set the default output state is ON/OFF for the next time. The potentiometer can help you to adjust volt amp in a simple and fast way.
  • 【Protection】 It has reverse-connect protection, short circuit protection and over current protection. When you connect the input wire reversely or short circuit, the module will not burn. And roate the CC potentiometer to set over current protection value you want.
  • 【Application】 The volt conversion board can be used for 5v 6v 9v 12v 24V 30V 32V 3a 5a 10a devices, like solar panel, lab, experiment, RV, All-Terrain Vehicle, car, battery charger, LED stripes, etc.

Product description

Parameters: Input voltage range: DC 5.3-32V (limit 35V; the lowest input 4V can achieve buck, but less than 5.3V input voltage, current measurement is inaccurate) Output voltage range: DC 1.2-32V (must ensure that the input voltage is higher than the output voltage, the minimum voltage difference is 0.8V) Output current: 8A for long-term stable work, strengthen the heat dissipation can reach 12A Output power: natural cooling 120W (within 8A), enhance cooling can reach 160W Voltage display: resolution 0.05V, range 0-32V Current display: resolution 0.01A, range 0-12A Conversion efficiency: about 96% Working current: 25mA or so Soft start: Yes (high power with load module may fail to start) Input reverse connection protection: yes Output stop current from feeding back: none (if you charge the battery, first power the module then connect to the battery, and ensure that the battery voltage is lower than the output voltage) Short circuit protection: yes Dimension: 82x 52x 32mm Attentions: 1. Module input IN- cannot short circuit with output OUT-, otherwise constant current function will be invalid. 2. Please make sure that the power of the power supply is greater than the power required by the output load. Please reduce the power when the module is extremely hot. Package Including: 1x Power Supply Module
